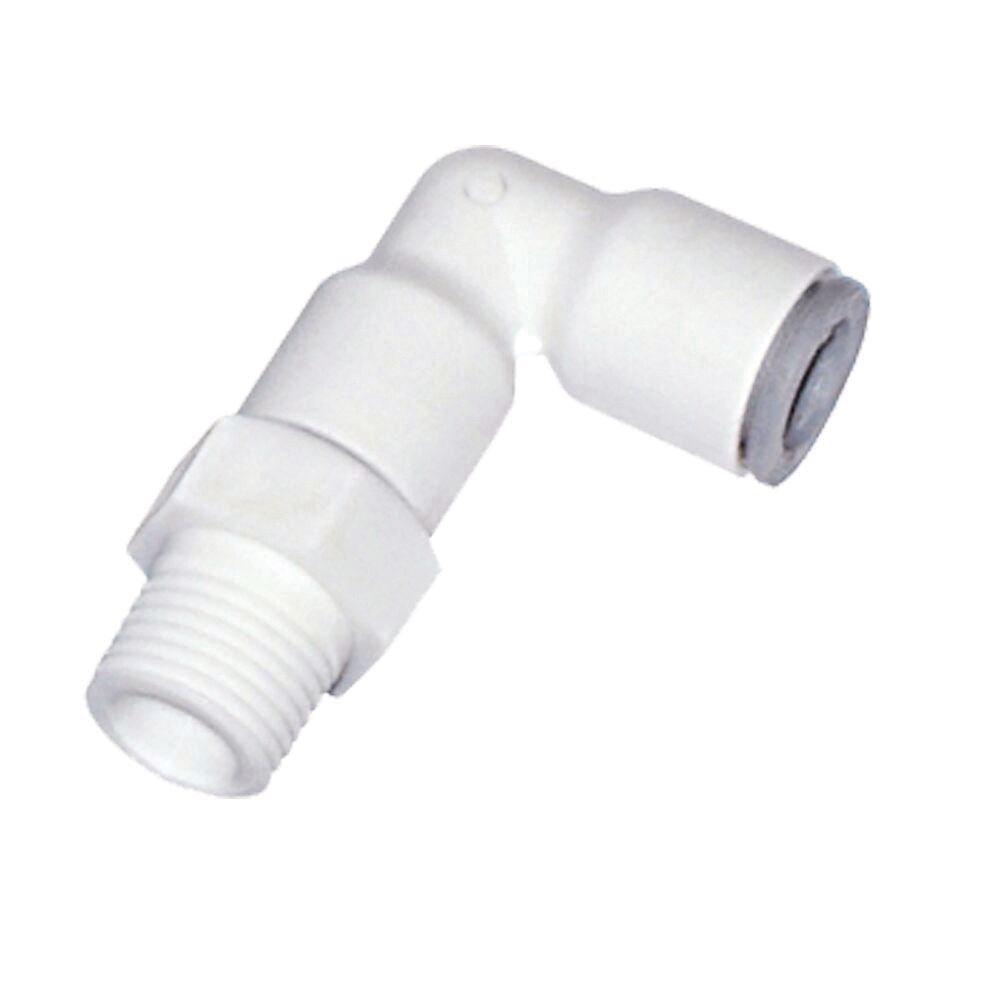

Push-to-Connect Swivel Elbow, Polyoxymethlene, 1/4 x 1/8", Tube x NPTF, 232 PSI Working Pressure
(Pack of
10)
SKU:1260921 Item#: 1260921
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Frequently Bought Together
PVC Industrial Tubing, 1/4" ID x 100' Clear
$0.00
Couldn't load pickup availability
PVC Industrial Tubing, 3/16" ID x 100' Clear
$0.00
Couldn't load pickup availability
PVC Industrial Tubing, 1/8" ID x 100' Clear
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
$0.00
Couldn't load pickup availability
Hex Head Plug Brass 3/4-14 Male NPT
$0.00
Couldn't load pickup availability
Grooved Copper Adapter Coupling, 3" x 3"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 6 mm x M7x1
$0.00
Couldn't load pickup availability
Push-to-Connect Run Tee Nylon 3/8 x 3/8 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Y Union Nylon 5/16 x 5/16" x 10 mm
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1260921 |
|---|---|
| Configuration | Swivel Elbow |
| Tube Size | 1/4 " |
| Thread Size | 1/8 " |
| Thread Style | NPTF |
| Material | Polyoxymethlene |
| Wrench Size | 1/2 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
Product Restrictions
