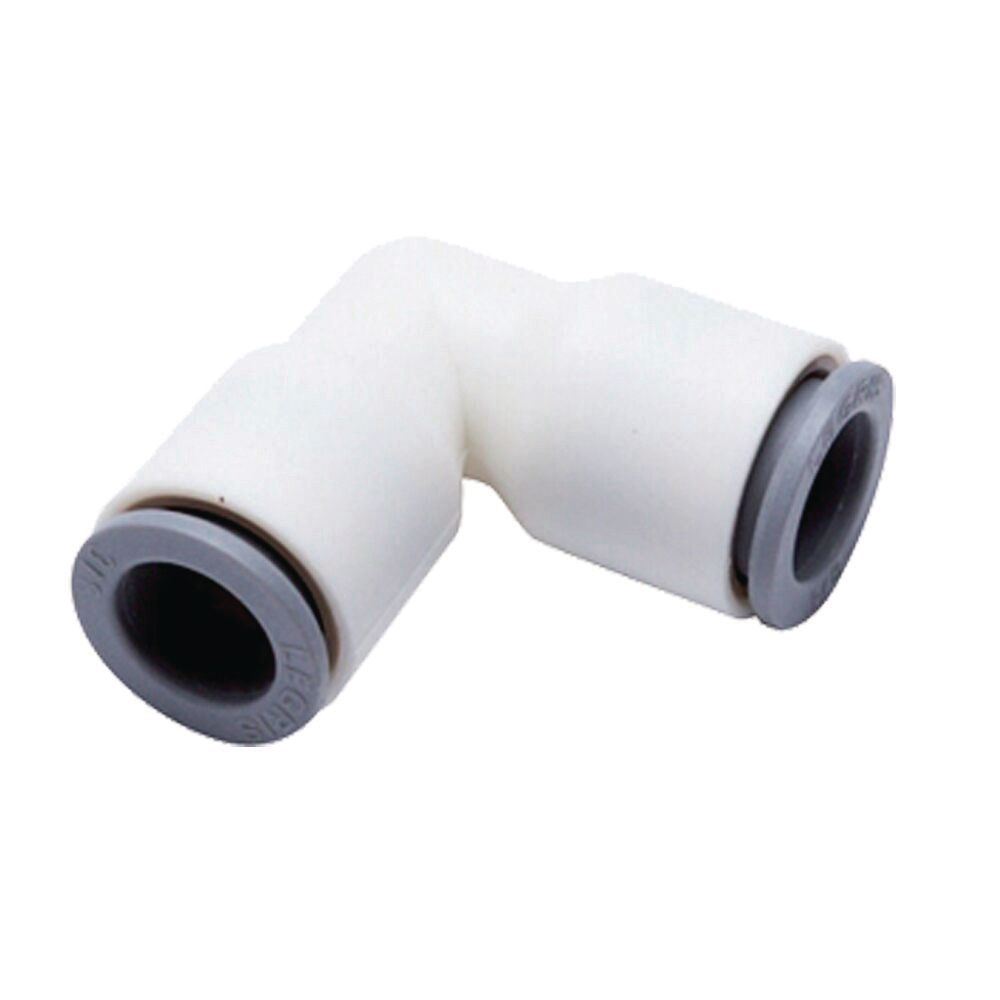

LIQUIfit Push-to-Connect Union Elbow, Polymer, 5/16 x 5/16" (8mm), Tube x Tube, 230PSI
(Pack of 10)

SKU:1262977 Item#: 1262977

Parker Fluid Connectors Group

LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water

Quantity

Frequently Bought Together

Compression Connector Brass 1/2-14 x 3/8"

Compression Nut Brass 1/4"

Compression Sleeve Brass 1/8" Tube

FLEXAIR 3/8" I.D. x 35' air hose

Quick Disconnect Plug Steel 1/4" x 1/4-18

Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT

Push-to-Connect Reducer Nylon 1/8 x 1/4"

Push-to-Connect Connector Brass 3/8 x 3/8"

Push-to-Connect Tee Nylon 1/8 x 1/8 x 1/8"

Push-Type Retainer Nylon 20mm

Radiator Grille Nut M4.2-1.41

Fender Splash Shield Retainer Nylon 20mm

Product Description

LIQUIfit is a revolutionary push-to-connect fitting for water treatment applications. The stainless steel gripping ring coupled with the EPDM seal offer optimum performance suitable for contact with water, beverages and food. Its full flow profile delivers maximum capability while its compact push-to-connect design facilitates the tightest tube bends in the industry with no pumping effect.
• High chemical resistance (chlorine, cleaning agents, UV)
• All items in the LIQUIfit range are silicone free
• Approved for contact with food: FDA, NSF 51, NSF 61, WRAS inch
• Working temperature: 35°F to 200°F
• Working pressure: Up to 230 PSI
• Suitable for water, beverages, food and CO2
• Construction:
– Body: Engineered polymer
– Gripping ring: Stainless steel
– “D” seal: EPDM
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
– Inert gas supply
– High purity water

Technical Specifications

Item#:	1262977
Manufacturer Model #:	6302 08 00WP2
Style	LIQUIfit
Configuration	Union Elbow
Tube Size	5/16" (8mm)
Material	Engineered Polymer
Working Pressure	230 PSI
Temperature Range	+35 to +200 °F
UNSPSC #:	40183100
TAA Compliant:	No
