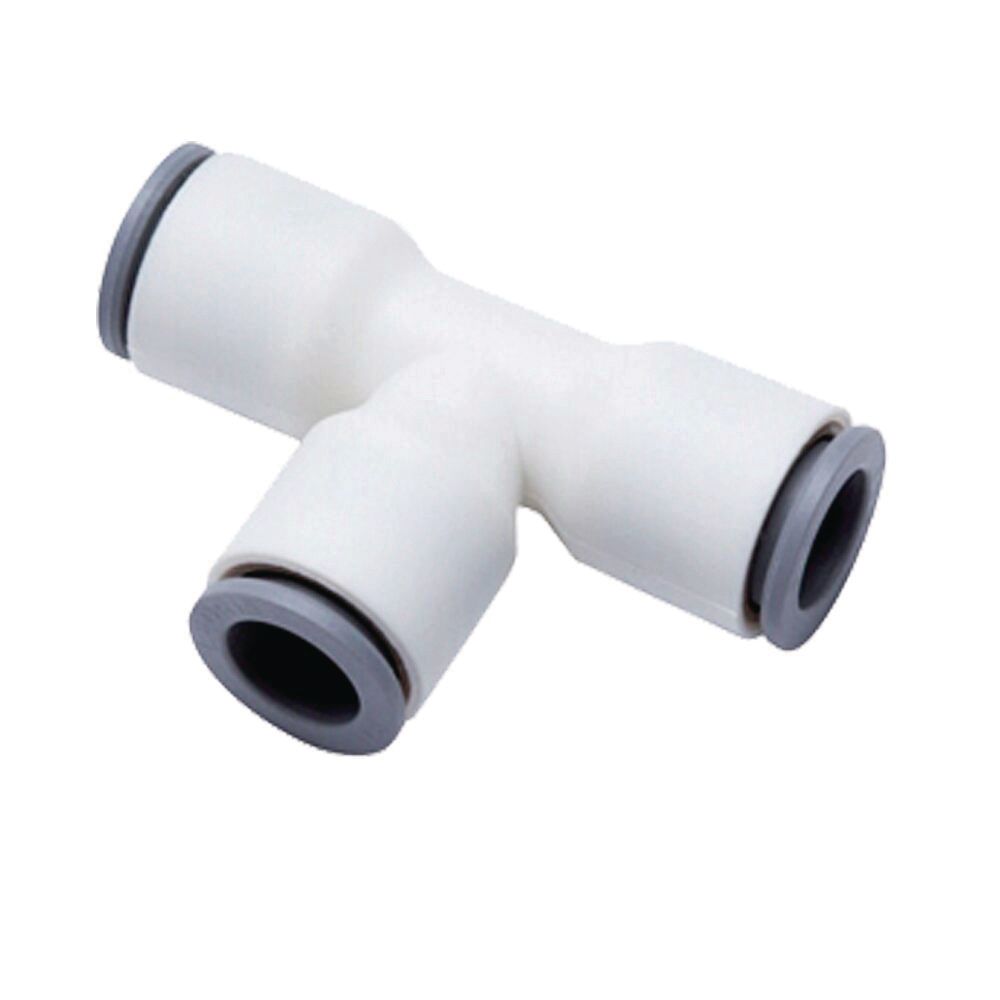

Push-to-Connect Union Tee, Polyoxymethlene, 5/16 x 5/16 x 5/16" (8mm), Tube x Tube x Tube, 232 PSI Working Pressure
(Pack of
10)
SKU:1261234 Item#: 1261234
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Frequently Bought Together
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32"
$0.00
Couldn't load pickup availability
Push-to-Connect Union Elbow, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Compression Sleeve Brass 1/8" Tube
$0.00
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"
$0.00
Couldn't load pickup availability
Merchant Coupling 316 Stainless Steel 1/2 x 1/2"
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Tee Nylon 1/8 x 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Union Connector Polymer 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Union Elbow Nylon 3/16 x 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless steel
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1261234 |
|---|---|
| Configuration | Union Tee |
| Tube Size | 5/16" (8mm) |
| Material | Polyoxymethlene |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
Product Restrictions
