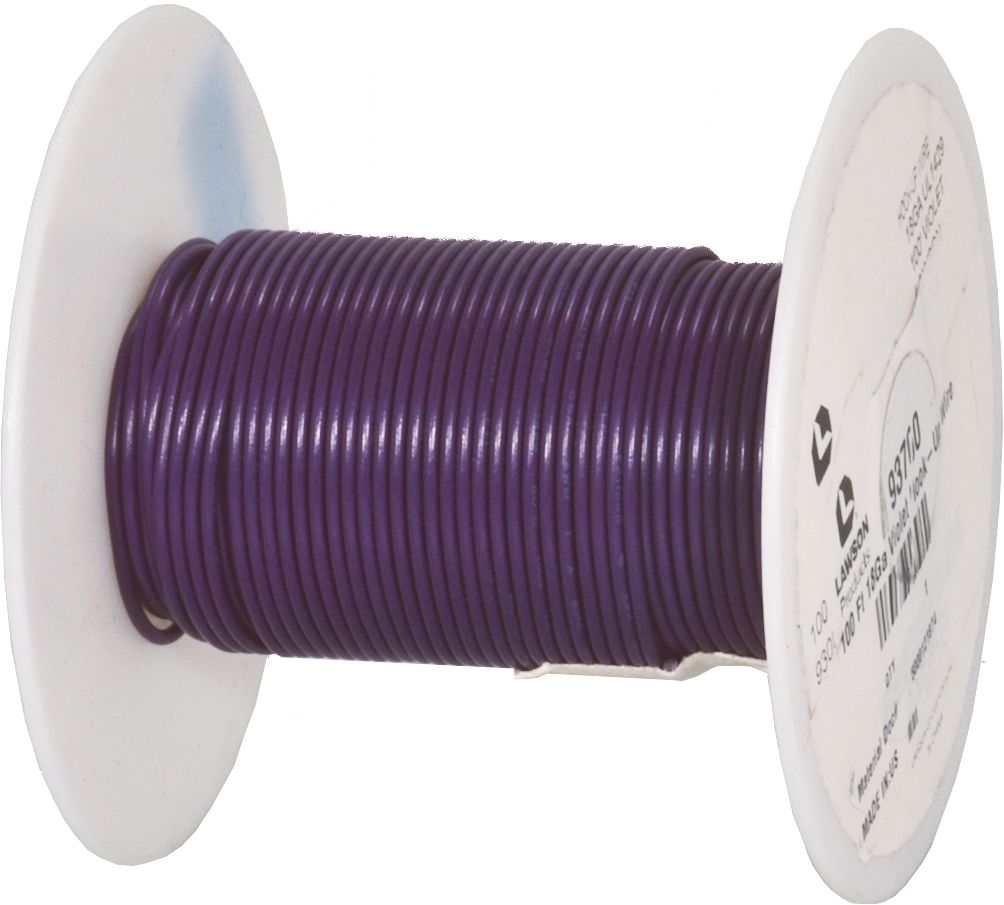

Hook Up Wire, 16 AWG, Violet, Irradiated PVC, Tinned, Stranded Copper, 100' Length, 0.077" Nominal OD, Heat Resistant
(Pack of
1)
Tinned, stranded copper conductors
Insulation is made of polyvinyl chloride which has been cross-linked by an irradiation process this makes it extremely resistant to heat, burn-through and abrasion for greater reliability
100 feet per roll
Use in appliances, business machines, computer wiring, controls and instrumentation
Frequently Bought Together
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Cross Linked Primary Wire 22 AWG 100' Green
Couldn't load pickup availability
PVC Hook Up Wire 22 AWG 100' Blue
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Black
Couldn't load pickup availability
PVC Hook Up Wire 18 AWG 100' White
Couldn't load pickup availability
PVC Hook Up Wire 14 AWG 100' Green
Couldn't load pickup availability
PVC Hook Up Wire 18 AWG 100' Orange
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Product Description
Tinned, stranded copper conductors Insulation is made of polyvinyl chloride which has been cross-linked by an irradiation process this makes it extremely resistant to heat, burn-through and abrasion for greater reliability
100 feet per roll
Use in appliances, business machines, computer wiring, controls and instrumentation
Technical Specifications
| Item#: | 93701 |
|---|---|
| Style | Irrradiated PVC Hook-Up Wire |
| Wire Gauge | 16 AWG |
| Nominal O.D. | 0.077 " |
| Color | Violet |
| Length | 100 ft |
| Package Type | 1 Roll |
| Approvals | MIL-W-16878/1 Type B, UL AWM, CSA Style 1429, XLPV |
| Type | Wire |
| UNSPSC #: | 26121539 |
| TAA Compliant: | No |
| Weight: | 1.1 lb |
