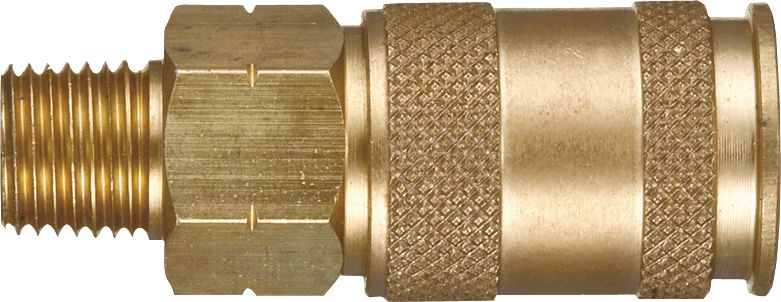

Heavy-Duty Quick Disconnect Coupler, Brass, High Flow, Male NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
• Specially engineered to allow almost twice the air flow of comparably sized couplers
• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Frequently Bought Together
Push-Button Air Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Air Hose Ferrule Brass 1/2"
Couldn't load pickup availability
Garden Hose Adapter Brass 3/4-11-1/2 x 3/4-11-1/2
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Steel 1/4" x 1/4-18
Couldn't load pickup availability
Ergonomic Blowgun 1/4"
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Product Description
• Specially engineered to allow almost twice the air flow of comparably sized couplers• One handed push-to-connect design for easy operation
• Couplers: All brass construction – manufactured using solid brass bar stock
• Couplers feature stainless steel balls, retaining rings and springs for corrosion resistance and to extend service life
• Plugs: All steel construction – manufactured using solid steel bar stock
• Temperature range: –40°F to +250°F (–40°C to +121°C)
• Maximum working pressure: 300 PSI
• Ideal for HVLP (High Volume/Low Pressure) applications such as paint guns
Technical Specifications
| Item#: | KT15119 |
|---|---|
| Description | Heavy-Duty Quick Disconnect |
| Type | Coupler |
| Style | High Flow |
| Body Size | 1/4 " |
| Thread Style | Male NPT |
| Thread Size | 1/4-18 |
| Material | Brass |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.23 lb |
