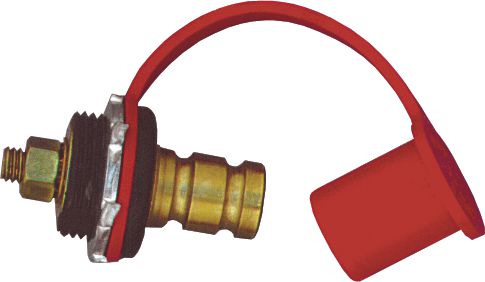

Remote Battery Terminal Jumper, Red, Positive Polarity, Brass, 13/16" Diameter, 1-1/8" Long, 3/8" Stud Size, 16 TPI
(Pack of
1)
SKU:52823 Item#: 52823
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle
• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Frequently Bought Together
SB to SB Connector 175A 1/0 AWG 12'
Couldn't load pickup availability
Clamp to SB Connector 2 AWG 500A 25' Cable
Couldn't load pickup availability
Industrial Battery Connector Protective Cap 175A
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2/0 AWG Black 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 1/0 AWG Pink 3/8"
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2 AWG Brown 3/8"
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
• Permits direct connection to the battery at a more accessible location, inside or outside the vehicle• Accepts standard jumper cable clamps
• Rugged solid brass contact post, 13/16" dia., 1-1/8" long
• 3/8–16 threaded brass stud
• Includes brass hex nut and washer
• Units allow optional mounting through either round or double D-shaped holes
• Designed for all 6V – 36V (DC) battery-equipped vehicles
• For panel thicknesses through 5/16" (7.93mm)
When connecting the electrical cable to the 3/8" dia. stud, it is recommended that the lockwasher be positioned under the cable terminal.
Do not make electrical connections until the unit(s) is securely mounted in the panel.
Technical Specifications
| Item#: | 52823 |
|---|---|
| Style | Remote Battery Jumper |
| Type | Terminals |
| Color | Red |
| Polarity | Positive |
| Description | Jumper Terminal - Positive |
| UNSPSC #: | 78181500 |
| TAA Compliant: | Yes |
| Weight: | 0.41 lb |
