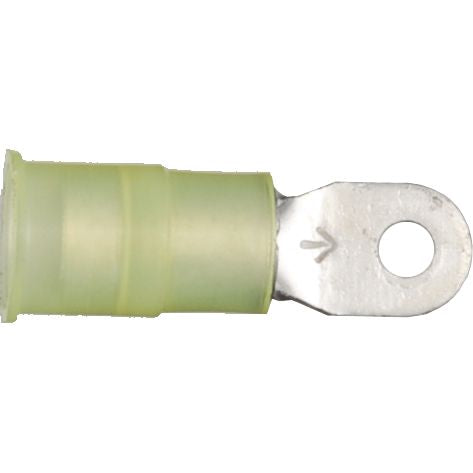

Ring Tongue Terminal 12 to 10 AWG Yellow
(Pack of
25.0)
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.
The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Couldn't load pickup availability
Catalog page#: 2-20
Frequently Bought Together
Product Description
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Technical Specifications
| Item#: | 5940 |
|---|---|
| Type | Crimp |
| Wire Gauge | 12-10 AWG |
| Stud Size | 6 |
| Color | Yellow |
| UNSPSC #: | 39121432 |
| TAA Compliant: | No |
| Weight: | 0.15 lb |
