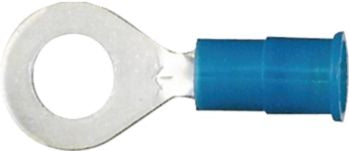

Ring Tongue Terminal, Standard, Nylon Insulated, 16 to 14 AWG, #1/4" Stud Size, Blue
(Pack of
25)
SKU:25263 Item#: 25263
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.
The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Frequently Bought Together
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Product Description
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Standard style of tongue
• Safest and most reliable
• Can’t be removed unless mounting screw is removed
Lawson's Industrial Grade
Technical Specifications
| Item#: | 25263 |
|---|---|
| Type | Crimp |
| Wire Gauge | 16-14 AWG |
| Stud Size | 1/4 " |
| Color | Blue |
| Approvals | UL, CSA |
| UNSPSC #: | 39121432 |
| TAA Compliant: | No |
| Weight: | 0.11 lb |
