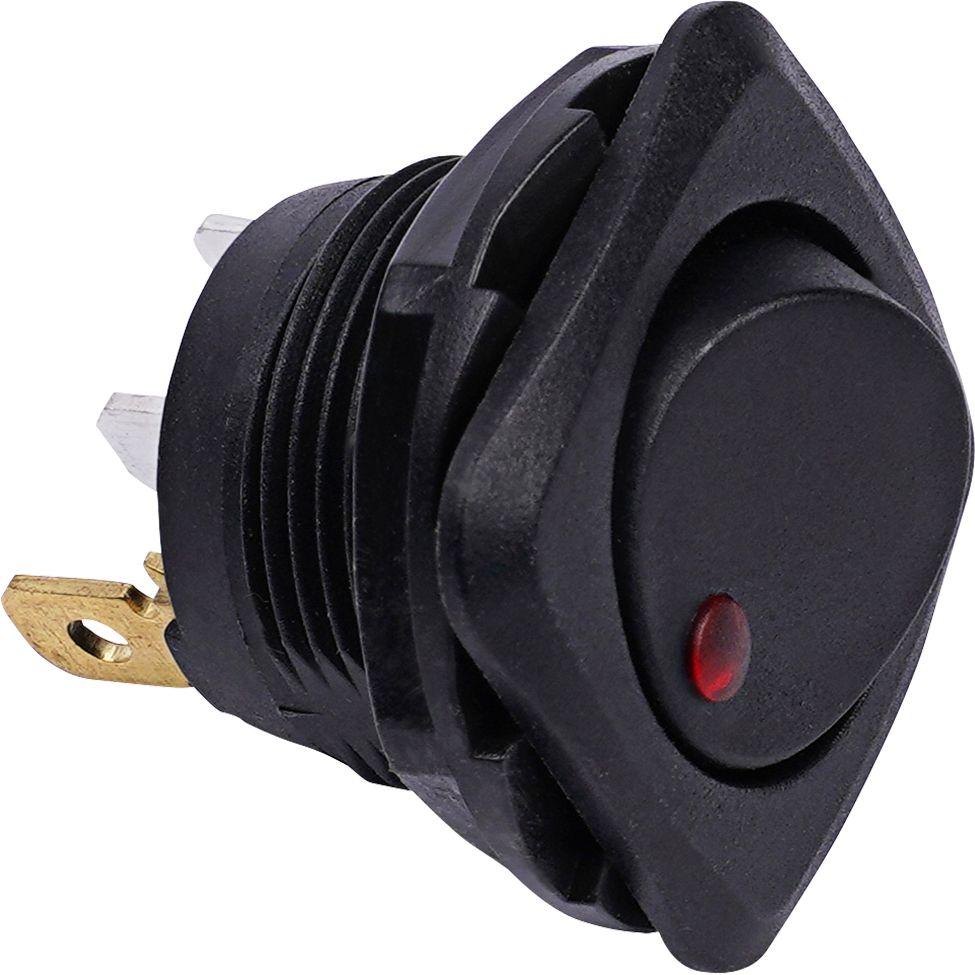

Rocker Switch, Single Pole Single Throw, 14V DC 20A , 28V DC 10A , 3 Blade Term, Red LED, Screw-in Round Rocker-Square, On-Off
(Pack of
1)
SKU:DY41120048 Item#: DY41120048
• Rating: 14V DC 20A, 28V DC 10A
• Terminal: 0.187" quick-change silver-plated copper alloy
• Actuator Material: Nylon 66
• Operating Temp: -13° – +185°F (-25°– +85°C)
• Circular Panel Cut Out: 0.795" (20.2mm)
• Max Mount Depth: 0.236" (6mm)
Frequently Bought Together
Heat Shrink Tubing 20 to 16 AWG Black
Item#: P66657
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Item#: P28626
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 32CP
Item#: P22162
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Item#: KT12848
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Item#: KT13527
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: P24082
$0.00
Couldn't load pickup availability
Push Button Switch SPST 12VDC Momentary On
Item#: 84489
$0.00
Couldn't load pickup availability
Rocker Switch SPST 20A 12V On-Amber/Off-Clear
Item#: 52795
$0.00
Couldn't load pickup availability
Universal Pilot Indicator Light 12V 2x 16 AWG
Item#: 84481
$0.00
Couldn't load pickup availability
Push-Pull Switch SPST 15A 12V Off-On
Item#: 30216
$0.00
Couldn't load pickup availability
Industrial Duty Duplex Receptacle 15A 125V Brown
Item#: 80815
$0.00
Couldn't load pickup availability
Toggle Switch SPST 16A at 125V/8A at 250V Off-On
Item#: 90384
$0.00
Couldn't load pickup availability
Product Description
• Rating: 14V DC 20A, 28V DC 10A• Terminal: 0.187" quick-change silver-plated copper alloy
• Actuator Material: Nylon 66
• Operating Temp: -13° – +185°F (-25°– +85°C)
• Circular Panel Cut Out: 0.795" (20.2mm)
• Max Mount Depth: 0.236" (6mm)
Technical Specifications
| Item#: | DY41120048 |
|---|---|
| Style | Rocker Switches- Screw-In Round Rocker/Square Frame |
| Description | Rocker Switches- Snap-In Round Rocker, Single Pole/Single Throw W/Red LED |
| Pole | Single |
| Throw | Single |
| Terminal Connection | 187" Quick-Change Silver-Plated Copper Alloy |
| Switch Positions | On - Off |
| Electrical Rating Amps at Given Voltage (DC Current) | 14V DC 20A , 28V DC 10A |
| Material | Nylon 66 |
| Thread | Screw-In |
| Panel Hole Diameter | .795 X .236 " |
| Type | Switches |
| Circular Panel Cut Out | .795" (20.2mm) |
| Maximum Mount Depth | .236" (6mm) |
| UNSPSC #: | 39122200 |
| TAA Compliant: | No |
| Weight: | 0.02 lb |
