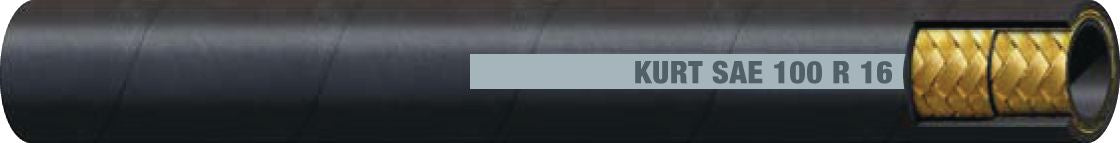

SAE R16S Hydraulic Hose, Rubber, 2-Steel Braided, 1/2" ID, 0.81" OD, 50' Length, 3.5" Bend Radius, 4000PSI
(Pack of
50)
SKU:1562975 Item#: 1562975
• Agency Ratings: SAE 100R16S
• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Frequently Bought Together
3TR7N Hydraulic Thermoplastic Hose 0.49" x 50'
$0.00
Couldn't load pickup availability
3TR7N Hydraulic Thermoplastic Hose 0.43" x 50'
$0.00
Couldn't load pickup availability
3TR7 Hydraulic Thermoplastic Hose 0.33" x 500'
$0.00
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.82" x 50'
$0.00
Couldn't load pickup availability
Hydraulic Union 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 5/8 x 1/2-14
$0.00
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 5/8" x 100'
$0.00
Couldn't load pickup availability
Avagard PVC Water Hose Assembly 3/4" x 50'
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 5/8" x 50'
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R16S• Fittings Certified: Kurt braided hose fittings
• Agency Approval: MSHA
• Construction:
– Inner Tube: Synthetic rubber
– Reinforcement: Two high tensile steel wire braid
– Cover: Abrasion-, ozone- and weather-resistant synthetic rubber
• Operating Temperature Range: –40°F to +212°F (–40°C to +100°C)
• Application Notes: Recommended for low- and medium-pressure hydraulic oil lines
Technical Specifications
| Item#: | 1562975 |
|---|---|
| Manufacturer Model #: | R16S-08 (50) |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R16S |
| Industry Rating 2 | MSHA |
| Manufacturer Series Number | SAE R16S |
| Manufacturer Series Name | Kurt |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.81 " |
| Working Pressure | 4,000 PSI |
| Burst Pressure | 16,000 PSI |
| Fitting Series | Kurt Braided Hose Fittings |
| Bend Radius | 3.5 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Synthetic Rubber |
| Material | Hydraulic Oil |
| Temperature Range | -40F to +212F (+250F Max) |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 17.0 lb |
