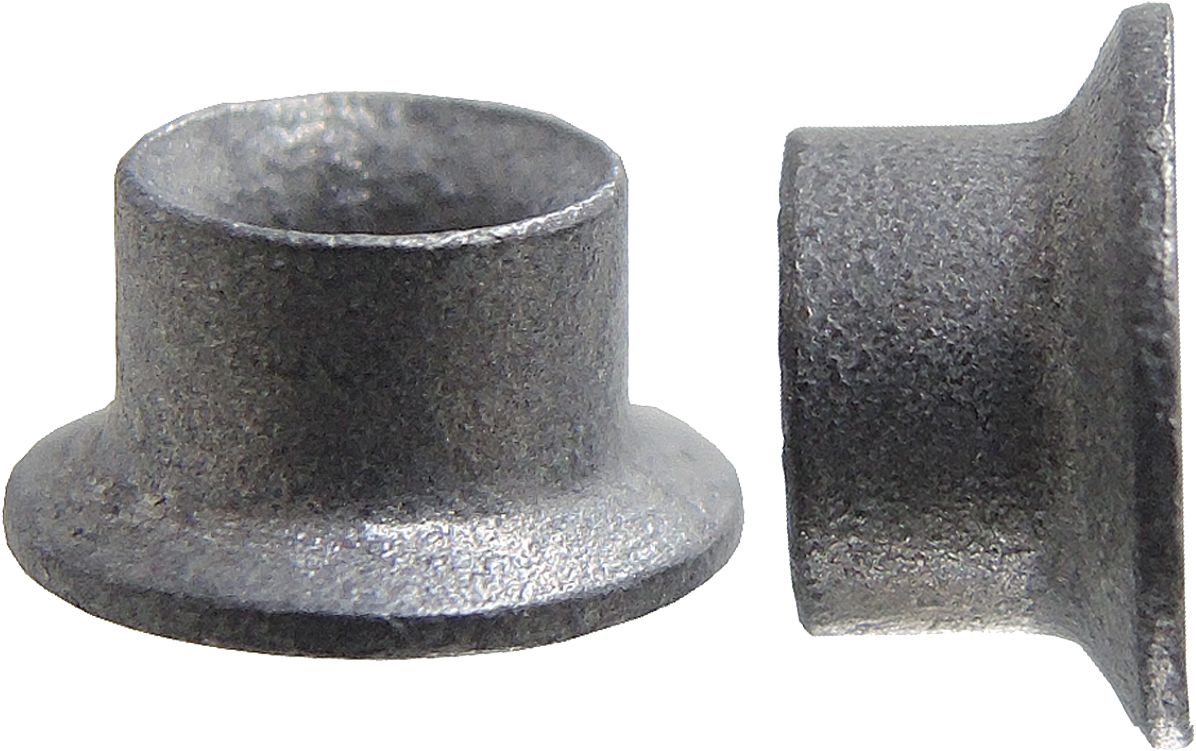

Self-Piercing Rivet, Used on Aluminum Body Panels, Coated Steel, Tin/Zinc Plated, 5.3mm Body Diameter, 4mm Length
(Pack of
25)
SKU:1489000 Item#: 1489000
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.
Frequently Bought Together
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Self-Piercing Rivet 5.3 x 7.5mm
$0.00
Couldn't load pickup availability
Window Regulator Blind Rivet Aluminum Silver 1/4"
$0.00
Couldn't load pickup availability
Self-Piercing Rivet 3.35 x 3.5mm
$0.00
Couldn't load pickup availability
Product Description
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.Technical Specifications
| Item#: | 1489000 |
|---|---|
| Type | Self-Piercing Rivet |
| Body Diameter | 5.3 mm |
| Rivet Length | 4.0 mm |
| Quantity Per Package | 25.0000 |
| UNSPSC #: | 31162200 |
| TAA Compliant: | No |
| Weight: | 0.05 lb |
