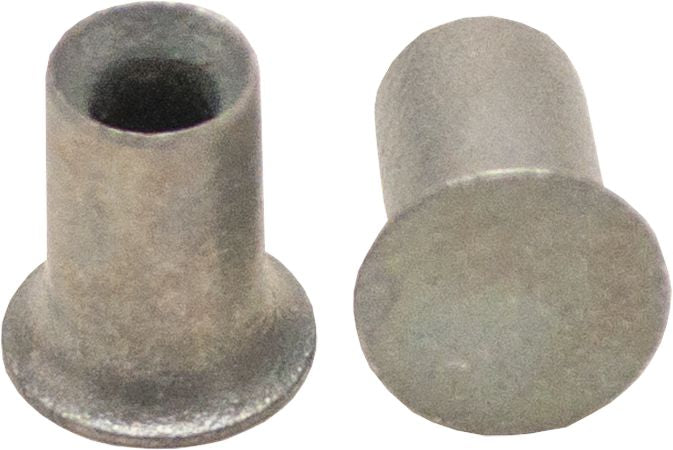

Self-Piercing Rivet, Used on Aluminum Body Panels, Coated Steel, Tin/Zinc Plated, 5.3mm Body Diameter, 9mm Length
(Pack of
25)
SKU:1610336 Item#: 1610336
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.
Couldn't load pickup availability
Catalog page#: 6-341
Frequently Bought Together
Front Rear Bumper Specialty Rivet 3.2mm
Couldn't load pickup availability
Metric Hex Head Bolt with 16mm Free Spin Washer
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Couldn't load pickup availability
Metric Hex Head Bolt with 16mm Free Spin Washer
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Couldn't load pickup availability
Front License Plate to Bumper Cover Split Rivet
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
Couldn't load pickup availability
Metric Hex Head Bolt with 16mm Free Spin Washer
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Self-Piercing Rivet 3.3 x 6mm
Couldn't load pickup availability
Self Piercing Rivet Ford: W710246-S900
Couldn't load pickup availability
Luggage Rack Closed End Rivet Aluminum 3/16"
Couldn't load pickup availability
Product Description
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.Technical Specifications
| Item#: | 1610336 |
|---|---|
| Type | Self-Piercing Rivet |
| Body Diameter | 5.3 mm |
| Rivet Length | 9.0 mm |
| Quantity Per Package | 25.0000 |
| UNSPSC #: | 31162200 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
