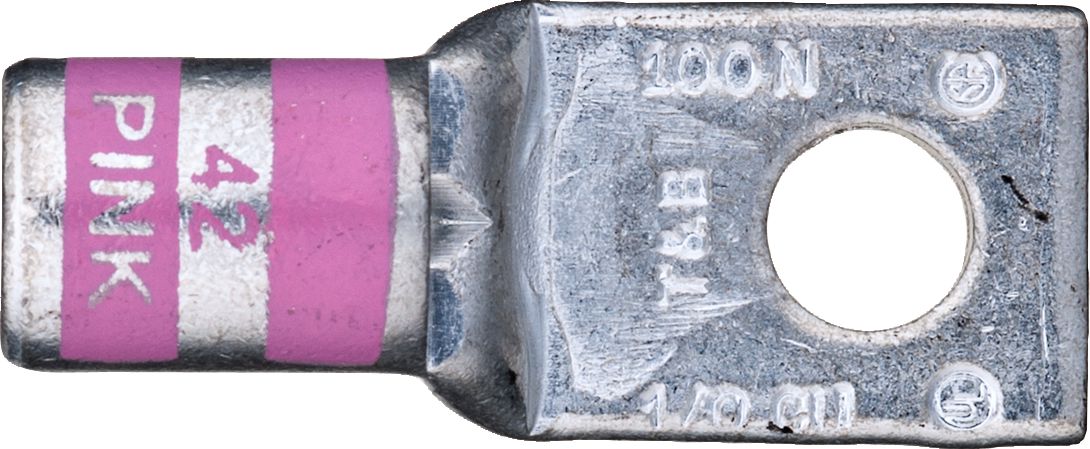

Standard One-Hole Lug, 1/0 AWG, Pink, 5/16" Stud Size
(Pack of
6)
SKU:17074 Item#: 17074
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 36CP
$0.00
Couldn't load pickup availability
Long Barrel One-Hole Lug 8 AWG Red
$0.00
Couldn't load pickup availability
Long Barrel One-Hole Lug 350 MCM Red
$0.00
Couldn't load pickup availability
Standard One-Hole Lug 1 AWG Green
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Butt Connector 20 to 18 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 8 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 20 to 18 AWG Red
$0.00
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 17074 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 1/0 AWG |
| Size Navy | 100 |
| Size Weld | 1 |
| Stud Bolt Size NEMA Drilling | 5/16 " |
| Color | Pink |
| Installation Tool 86473 (No. of Crimps Required) | 1 |
| Installation Tool 89555 (No. of Crimps Required) | 1 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.34 lb |
