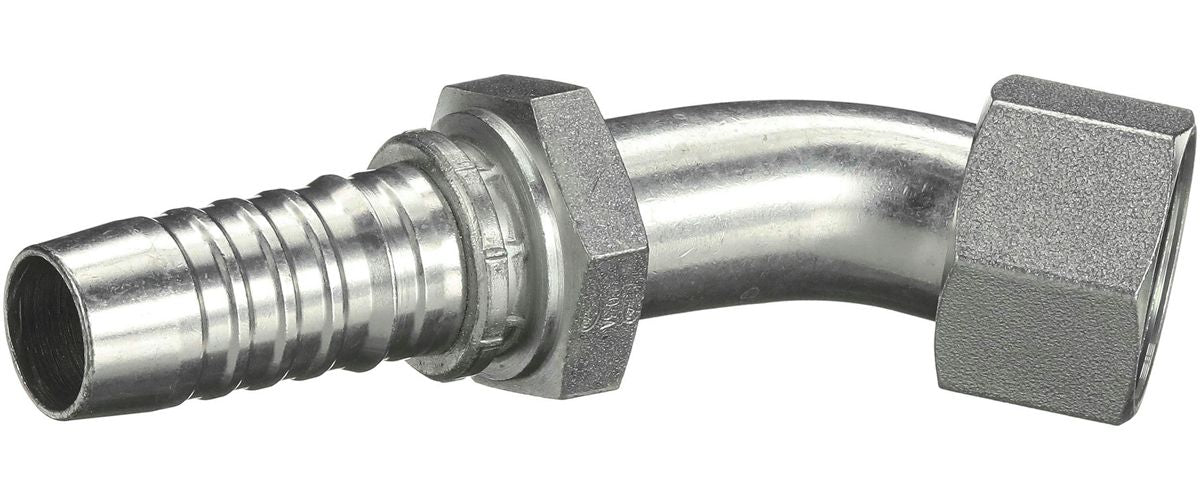

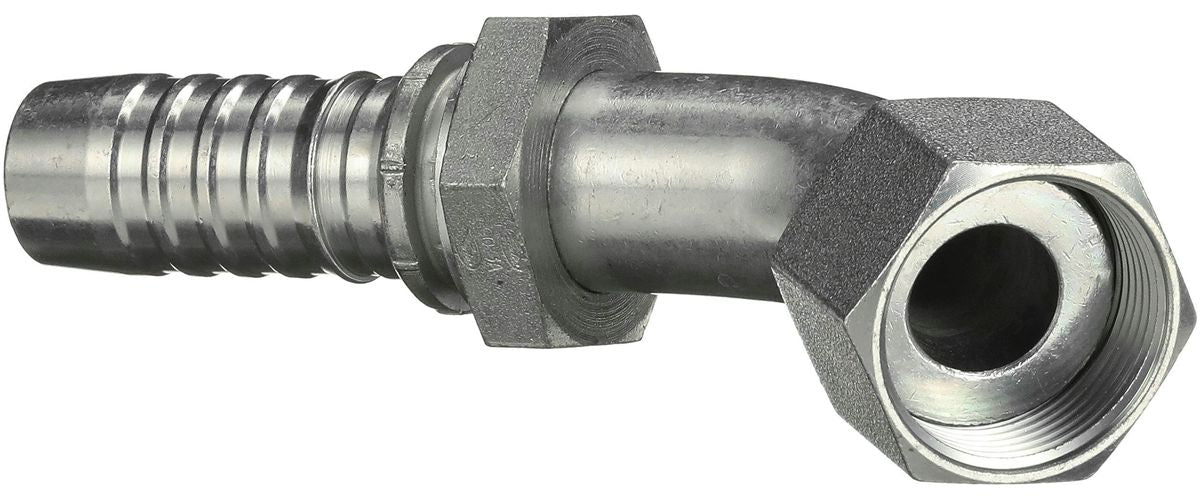

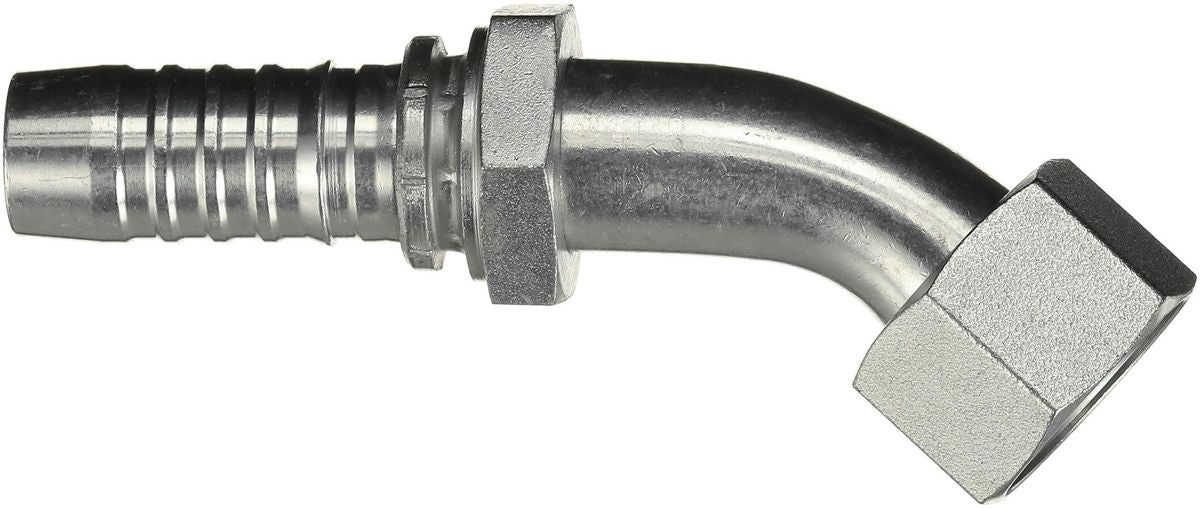

Steel Adapters, O-Ring Face Seal, Bent Tube Type, 45 Deg, 1" (-16) x 1 7/16-12" (-16), 1" Hose I.D., 5.36" Length, Stainless Steel, 6000 PSI
(Pack of 1)

Item#: 1642229

Gates®

Gates® hydraulic flange adapters rated to 6000 psi for replacing bent tube assemblies with standard stock couplings.

Read More

Frequently Bought Together

No product placeholder

08Z-BC48- Hose End (perm) 1S/1R 45 D Male STC

Item#: 1184318
No product placeholder

06Z-BC08- Hose End (perm) 1S/1R Str Male STC

Item#: 1179575
No product placeholder

06Z-BC68- Hose End (perm) 1S/1R 90 D Male STC

Item#: 1178409
No product placeholder

PolarSeal AC Coupler, Flareless Tube 733201025

Item#: 1643557
No product placeholder

PolarSeal AC Coupler, Flareless Tube 733200335

Item#: 1641246
No product placeholder

Metric Female Flareless Sleeve 733204215

Item#: 1647577

Push-Button Air Coupler Plug Steel 1/4" x 1/4-18

Item#: KT15127

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11948

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"

Item#: P63942M01

Drive Rivet Nylon M8

Item#: 1500739

Bumper Push-Type Retainer Nylon 18mm

Item#: P15600

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Product Description

Gates® hydraulic flange adapters rated to 6000 psi for replacing bent tube assemblies with standard stock couplings.

Technical Specifications

Item#: 1642229
Manufacturer Model #: 16B-16FFORX45S-SS
Fitting Dimension A (Hose) 1 "
Dash Size 16
Fitting End Style Swivel
Fitting End Type O-Ring Face Seal
Fitting Angle 45 °
Fitting Dimension B (Hose) 1 "
Thread Size 1 7/16-12 "
Size 16 "
Material Stainless Steel
UNSPSC #: 27121700
TAA Compliant: No
