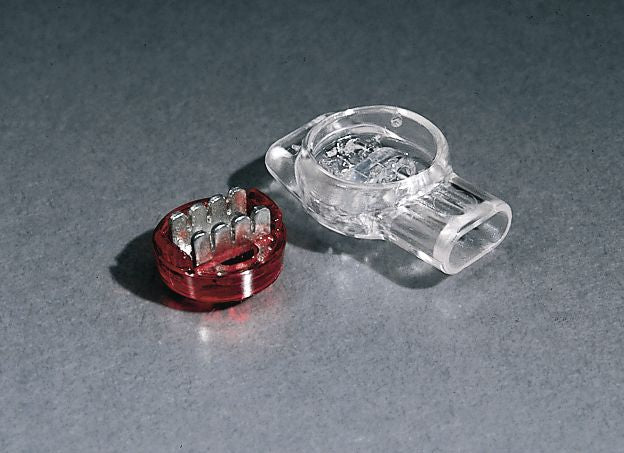

Telcom IDC Discrete Connector, 26 to 19 AWG, Red/Clear, 2 or 3-Wire Butt
(Pack of
50)
SKU:1404663 Item#: 1404663
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection
• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Frequently Bought Together
Miniature Incandescent Bulb 12V 21CP
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 12CP
$0.00
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
$0.00
Couldn't load pickup availability
Telcom IDC Discrete Connector 26 to 22 AWG
$0.00
Couldn't load pickup availability
IDC Pigtail Connector 22 to 14 AWG
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 3/8" Drive, 8pc
$0.00
Couldn't load pickup availability
9Pc Metric Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Universal Socket Set, SAE, 1/2" Drive, 6pc
$0.00
Couldn't load pickup availability
Product Description
• Filled with a corrosion-resistant sealant that resists moisture to protect the integrity of each connection• Clear body allows visual inspection of the connection
• Compact design makes high-density wiring easier
• Color-coded translucent caps for fast identification
• The solid, tin-plated copper U-element clamps down on the wire, cuts through the insulation and tightly grips the conductor
• Simple installation
• Provides a gas-tight connection
• Low electrical contact resistance
• Originally designed for the telecommunication industry, these U-element connectors have become very popular in other industries because of their high reliability, compact design and moisture resistance
*Insulation Displacement ConnectorNOTE: While initial tests show these connectors work equally well with stranded wire in these ranges, each application should be tested by the user for suitability.
Technical Specifications
| Item#: | 1404663 |
|---|---|
| Style | Telcomm IDC Discrete Connectors |
| Wire Gauge | 26-19 AWG |
| Color | Red/Clear |
| Maximum Insulation O.D. | .082 " |
| Connector Type | 2 or 3 Wire Butt |
| Industry Number | UR2 |
| Length | .67 " |
| Type | Electrical Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
