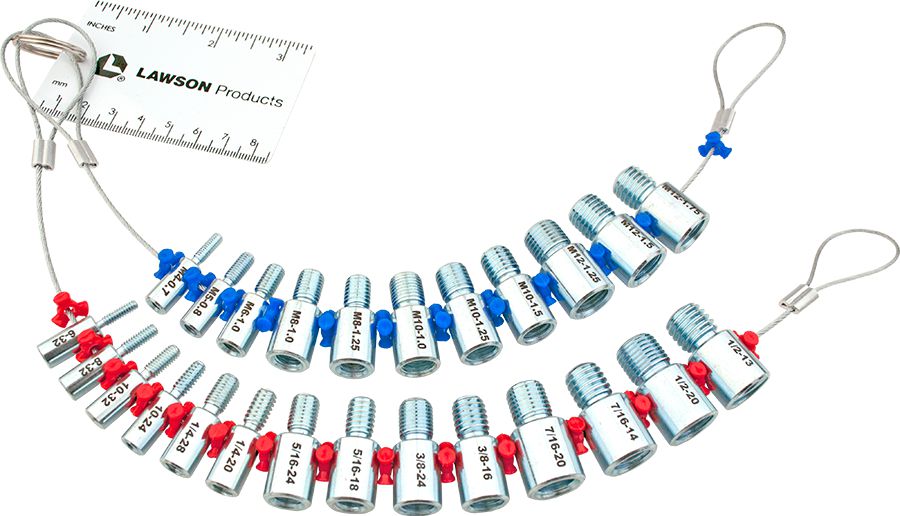

Thread Identifier, #6 - 1/2", M4 - M12, Coarse and Fine Threads
(Pack of 1)

SKU:1510444 Item#: 1510444

Kent Automotive

Easy-to-use thread identifier for nuts and bolts (internal and external inch and metric threads).
• Easy-to-read size markings
• Color-coded dividers allow recognition between inch and metric
• Extra-long wire rope for those hard-to-reach places, and loops on each end for convenient hanging
• Equipped with a 3-3/8" (85mm) ruler for measuring small screw, bolt and stud lengths
• Standard Size comes supplied in coarse and fine threads, #6 dia. through 1/2" and M4 through M12
• Large Size comes supplied in coarse and fine threads, 5/8" through 1" and M14 through M24
Standard Size
• Inch thread identifier contain the following sizes: 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
• Metric thread identifier contain the following sizes: M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.50, M12x1.25, M12x1.5, M12x1.75

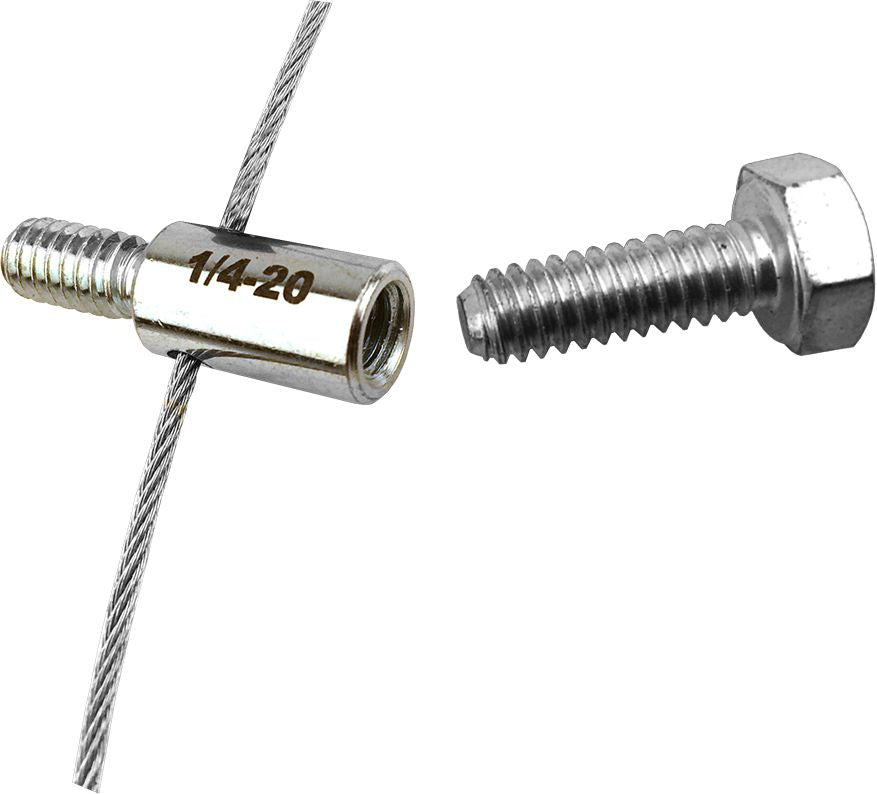

Bolt Thread Identification

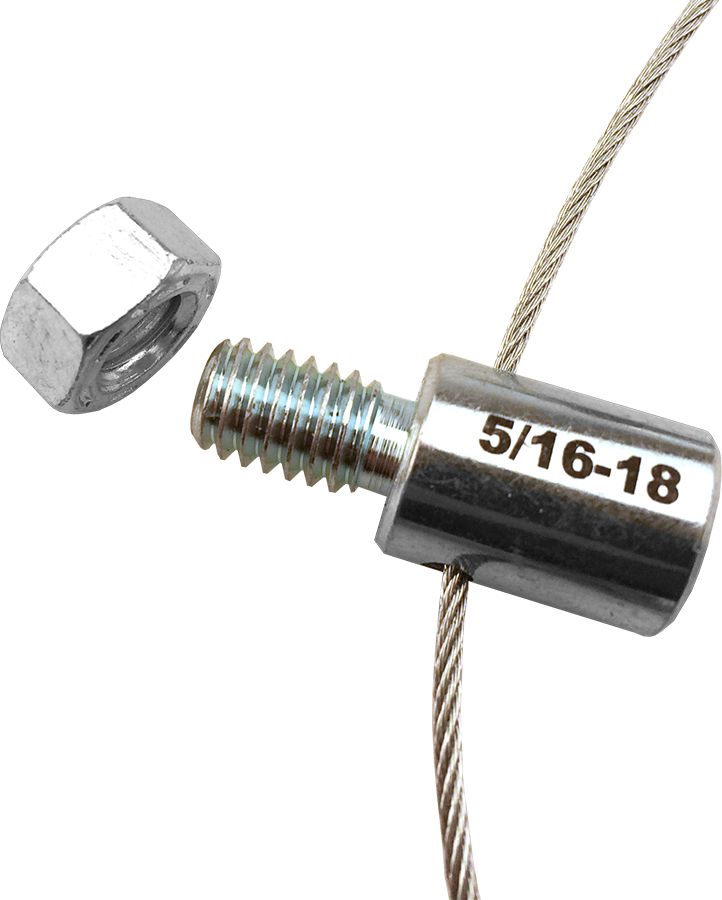

Nut Thread Identification

Check Availability

Quantity

Catalog page#: 11-12

Frequently Bought Together

2.1 Round Head Ratchet 3/8 Drive 168 Tooth

Item#: DY89285105

Cross-Over Socket Set, SAE, 3/8" Drive, 10pc

Item#: DY89320020

Nutsetter & Bit Set, Magnetic, 22pc

150mm / 6" Flex Stainless Steel Rule

6" Pocket Steel Rule

26-Leaf 3" Feeler Gage.0015" To .025"

Front Bumper Drive Rivet Plastic 7mm Hole

Metric Indented Hex Head Bolt with 17mm Washer

Front Bumper Push-Type Retainer Nylon 20mm

Spinning Handmaster Driver Set 5Pc Set

Item#: DY89310460

Universal Socket Set, Metric, 3/8" Drive, 12pc

Item#: DY89320204

Double Flute Step Drill Bit 1/8 to 1/2"

Product Description

Easy-to-use thread identifier for nuts and bolts (internal and external inch and metric threads).
• Easy-to-read size markings
• Color-coded dividers allow recognition between inch and metric
• Extra-long wire rope for those hard-to-reach places, and loops on each end for convenient hanging
• Equipped with a 3-3/8" (85mm) ruler for measuring small screw, bolt and stud lengths
• Standard Size comes supplied in coarse and fine threads, #6 dia. through 1/2" and M4 through M12
• Large Size comes supplied in coarse and fine threads, 5/8" through 1" and M14 through M24
Standard Size
• Inch thread identifier contain the following sizes: 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
• Metric thread identifier contain the following sizes: M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.50, M12x1.25, M12x1.5, M12x1.75
Bolt Thread Identification
Nut Thread Identification

Technical Specifications

Item#:	1510444
Style	Fractional and Metric
Description	Standard
Size	Standard
Type	Thread Identification
Size Range	#6 Dia. - 1/2" and M4 - M12
UNSPSC #:	41111641
TAA Compliant:	No
Weight:	0.89 lb
