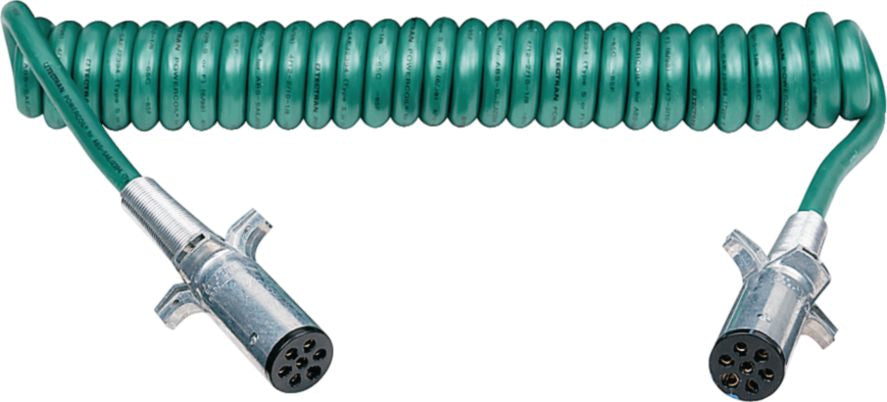

Tractor-Trailer Self Coiling Cable Assemblies, 4 x 12/2 x 10/1 x 8 AWG, 15" Length, Heavy-Duty, Seven-Way Pole Plugs, ABS
(Pack of
1)
SKU:28776 Item#: 28776
• Rugged wire cover is resistant to gasoline, diesel, common chemicals and UV rays

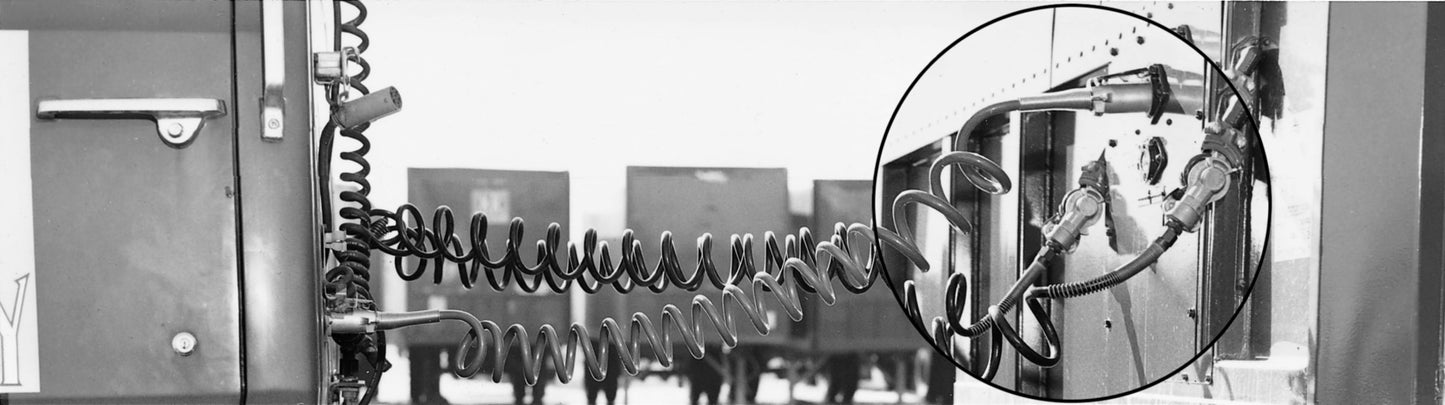

• Heavy-duty construction fights sagging between cab and trailer
• Seven-way pole plugs are made of durable zinc die-cast with spring cable guards
• Wire construction consists of four 12 Ga., two 10 Ga. and one 8 Ga.
• Remains flexible to –85°F (–65°C)• Meets or exceeds SAE J2394 and TMC R.P. 137 and 141 standards
• For the safe conduction of electric current between any truck-trailer combination
• Compatible with ABS braking systems (indicated by green cover)
• Replaces the red cable assemblies previously available
Frequently Bought Together
Ultralink Trailer Power Cord 15' Coiled ABS
Couldn't load pickup availability
Replacement Electrical Cord 12/3 AWG 25'
Couldn't load pickup availability
Extension Cord 15A 125V 50'
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 12CP
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
Couldn't load pickup availability
Tractor-Trailer Self Coiling Cable 17" ABS
Couldn't load pickup availability
Trailer Cable Harness 15' Coiled Black
Couldn't load pickup availability
Trailer Cable Harness 12' Straight Green
Couldn't load pickup availability
Product Description
• Rugged wire cover is resistant to gasoline, diesel, common chemicals and UV rays• Heavy-duty construction fights sagging between cab and trailer
• Seven-way pole plugs are made of durable zinc die-cast with spring cable guards
• Wire construction consists of four 12 Ga., two 10 Ga. and one 8 Ga.
• Remains flexible to –85°F (–65°C)• Meets or exceeds SAE J2394 and TMC R.P. 137 and 141 standards
• For the safe conduction of electric current between any truck-trailer combination
• Compatible with ABS braking systems (indicated by green cover)
• Replaces the red cable assemblies previously available
Technical Specifications
| Item#: | 28776 |
|---|---|
| Style | ABS Tractor-trailer self coiing cable assemblies |
| Wire Gauge | 4-12, 2-10, 1-8 AWG |
| Minimum No. of Coils | 41 |
| Approvals | SAE J2394 and TMC R.P. 137 and 141 Stds. |
| Description | 15-Foot Cable Assembly with 40-Inch Lead |
| Type | Cable, hose and connectors |
| UNSPSC #: | 26121600 |
| TAA Compliant: | Yes |
| Weight: | 7.89 lb |
Product Restrictions
