Home Hydraulics Pneumatic/Instrumentation Fittings Barb Lok Universal Air Coupler Brass 1/4" x 3/8-18
Barb Lok

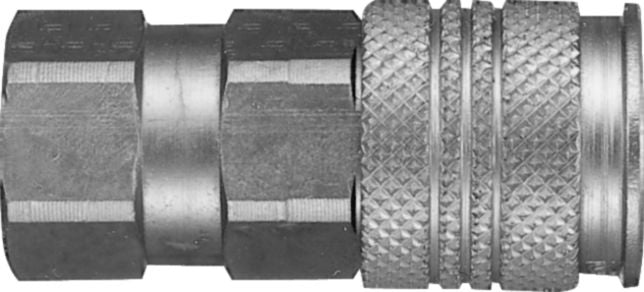

Universal Air Coupler, Brass, 125PSI, Female NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of 1)

Item#: KT15120

Kent Automotive

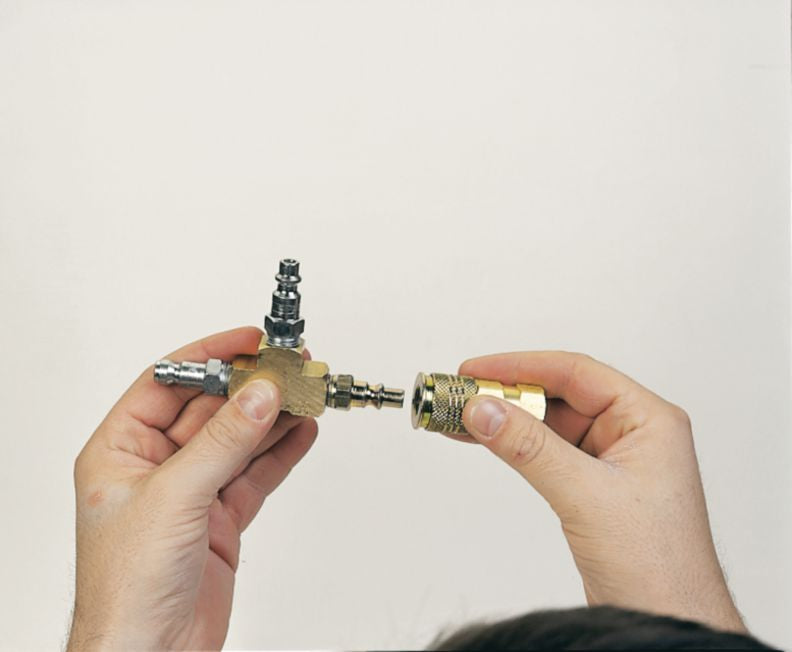

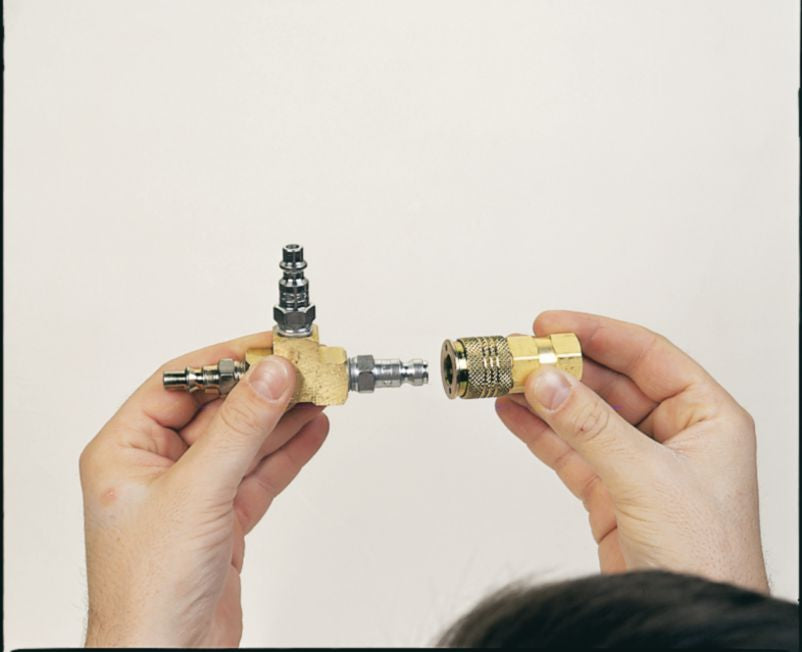

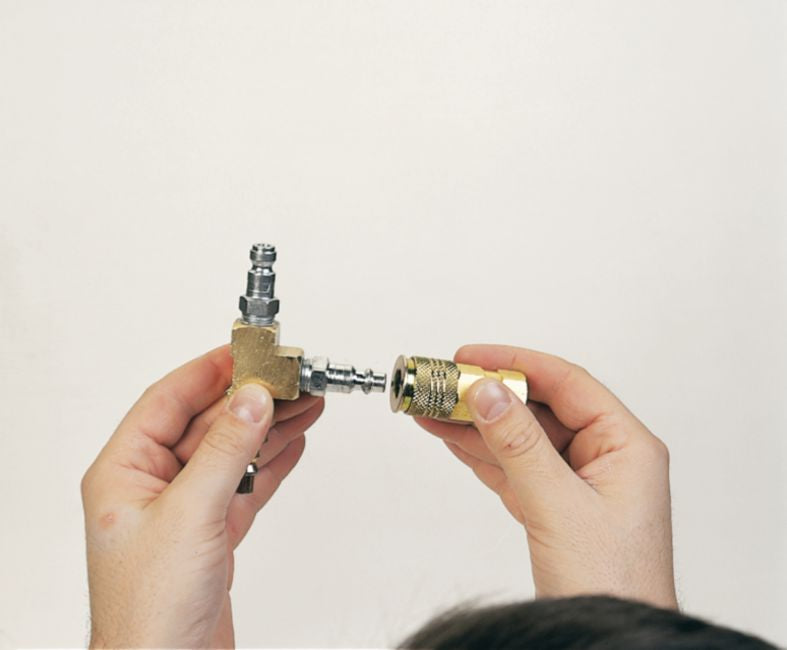

Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.
• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug

Read More
Check Availability

Catalog page#: 10-37

Frequently Bought Together


Standard Industrial Safety Push-Button Safety Coupler 3/8" Body x 3/8" MNPT

Item#: 1489999

Quick Disconnect Plug Steel 3/8" x 1/4-18

Item#: 54538

Quick Disconnect Plug Brass 1/4" x 1/4-18

Item#: 17339

Quick Disconnect Coupler Brass 1/4" x 1/4-18

Item#: 57448

Air Hose Ferrule Brass 5/8"

Item#: 61775

Hose Barb Hose Mender Brass 1/8 x 1/8"

Item#: 50582

Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT

Item#: 1489993

All-Plastic Ergonomic Venturi Blow Gun

Item#: 64353

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11952

Quick Disconnect Coupler Brass 1/4" x 3/8-18

Item#: KT15108

Hot Water Pressure Washer Gun/Lance Combo

Item#: 1694091

Blu Shield 6-in-1 Nozzle

Item#: 1694090

Fender Lining Screw Grommet Nylon #12

Item#: P18348

Front Rear Bumper Specialty Rivet 3.2mm

Item#: 1558278

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Product Description

Universal Air Couplers accept Tru-Flate, ARO and Industrial Interchange (standard) plugs. Choose them for applications where universality and automatic push-to-connect simplicity are key considerations. A full-flow feature allows greater air flow at lower pressure than conventional couplers.
• Brass body, brass knurled sleeve
• Precision seals and valve seats assure airtight operation
• Working pressure: 125 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Couplers will mate with the following plugs:
11915
11916
11942
11943
11950
11951
27172
27173
29026
29031
29032
29033
29034
54544
Will not mate with Lincoln-style plug

Technical Specifications

Item#: KT15120
Description Universal
Type Coupler
Style Universal
Body Size 1/4 "
Thread Style Female NPTF
Thread Size 3/8-18
Working Pressure 125 PSI
Material Brass
UNSPSC #: 27131613
TAA Compliant: No
Weight: 0.26 lb
