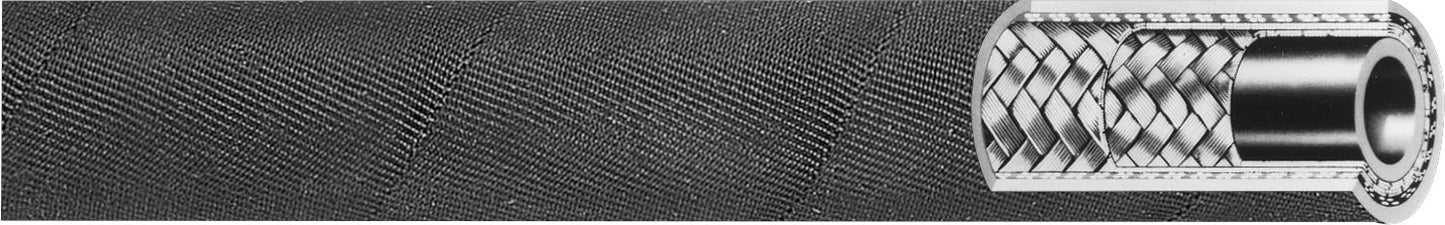

Weatherhead H245 Hydraulic Hose, Neoprene, 2-Steel Braided, 3/4" ID, 1-3/32" OD, 50' Length, 2250PSI, SAE 100R16
(Pack of
50)
SKU:63515 12 Item#: 63515 12
50 ft. rolls consist of two pieces totaling 50 feet (±10%).
• Agency Ratings: SAE 100R16 Type AT ABS
• Fittings Certified: U-Series; Z-Series; S-Series (except -10); 430 U-Series (-12, -16, -20)
• Agency Approvals: MSHA, Marine Application J1942/1 Fuel and Lubrication Service (fire sleeves required on all sizes)
• Construction:
– Inner Tube: Nitrile blend
– Reinforcement: Two steel braids
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)
– Water: 32°F to 158°F (0°C to 70°C)
• Application Notes:
– Used for high-pressure hydraulic lines and water transfer, including off-road construction, farm and other high-pressure applications
– Compatible with water/glycol, water, generic hydraulic fluids and diesel fuel
– Provides twice the flexibility of comparable SAE 100R2 hoses (one half the minimum bend radius)
– Does not accept field-attachable fittings
Frequently Bought Together
Product Description
50 ft. rolls consist of two pieces totaling 50 feet (±10%).• Agency Ratings: SAE 100R16 Type AT ABS
• Fittings Certified: U-Series; Z-Series; S-Series (except -10); 430 U-Series (-12, -16, -20)
• Agency Approvals: MSHA, Marine Application J1942/1 Fuel and Lubrication Service (fire sleeves required on all sizes)
• Construction:
– Inner Tube: Nitrile blend
– Reinforcement: Two steel braids
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)
– Water: 32°F to 158°F (0°C to 70°C)
• Application Notes:
– Used for high-pressure hydraulic lines and water transfer, including off-road construction, farm and other high-pressure applications
– Compatible with water/glycol, water, generic hydraulic fluids and diesel fuel
– Provides twice the flexibility of comparable SAE 100R2 hoses (one half the minimum bend radius)
– Does not accept field-attachable fittings
Technical Specifications
| Item#: | 63515 12 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R16 |
| Industry Rating 2 | SAE 100R2 |
| Industry Rating | MSHA Accepted, ABS1, Marine Application J1942/1 Fuel and Lube Service |
| Manufacturer Series Number | H245 |
| Manufacturer Series Name | Hi-R Flex |
| I.D. | 3/4 (-12) " |
| Hose O.D. | 1-3/32 " |
| Working Pressure | 2,250 PSI |
| Burst Pressure | 9,000 PSI |
| Fitting Series | Z Series, U Series, S Series, 430U Series |
| Bend Radius | 4-3/4 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Length | 50 ft |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum based fluids -40F to 212F, Water based fluids -40F to +158F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 30.5 lb |
