Wire Rope Terminal, Marine Eye End, 3/32", Stainless Steel
(Pack of
2)
SKU:1440330 Item#: 1440330
Marine Eye End Fittings are designed and manufactured to meet the strict standards of the marine industry.
• 316 Stainless Steel
Frequently Bought Together
Wire Rope Terminal, Eye End, 1/16", Stainless Steel
Item#: 1440393
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 3/32", Stainless Steel
Item#: 1440336
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/8", Stainless Steel
Item#: 1440301
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Plain Ball, 3/16", Stainless Steel
Item#: 1440287
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 3/32", Stainless Steel
Item#: 1440336
$0.00
Couldn't load pickup availability
Wire Rope Terminal, Eye End, 1/8", Stainless Steel
Item#: 1440301
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Item#: 1439073
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Item#: 1439055
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 3/32", 920 lbs Breaking Strength
Item#: 1439351
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
Item#: P85438
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Item#: P62445
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
$0.00
Couldn't load pickup availability
Wire Rope Sleeve, 3/64", Copper, Zinc Plated
Item#: 1440222
$0.00
Couldn't load pickup availability
Wire Rope Sleeve, 5/32", Copper, Tin Plated
Item#: 1440214
$0.00
Couldn't load pickup availability
Wire Rope Sleeve, 7/16", Copper, Zinc Plated
Item#: 1440285
$0.00
Couldn't load pickup availability
Product Description
Marine Eye End Fittings are designed and manufactured to meet the strict standards of the marine industry.• 316 Stainless Steel

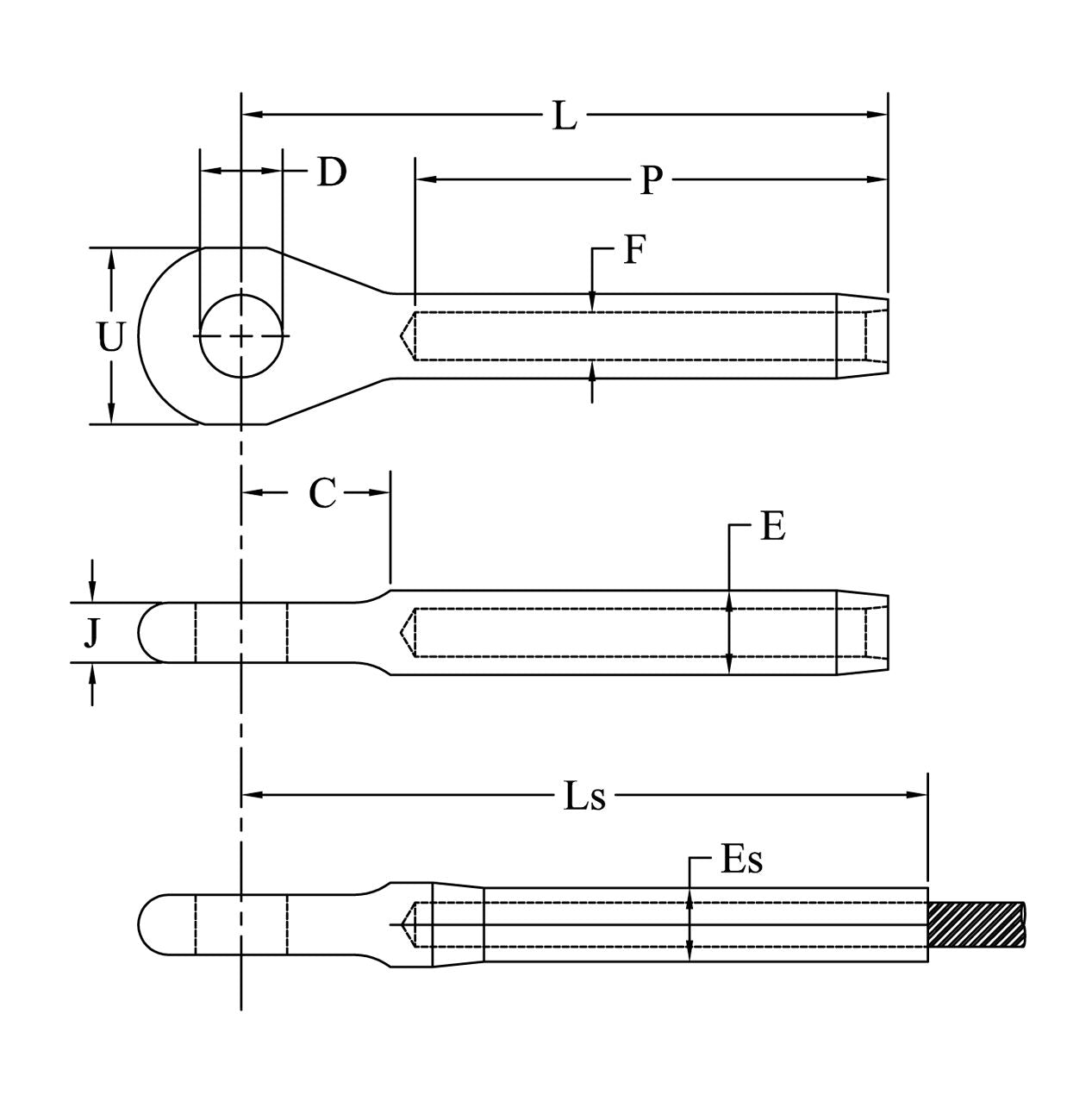

Technical Specifications
| Item#: | 1440330 |
|---|---|
| Manufacturer Model #: | EY1-3X |
| Type | Marine Eye End |
| Cable Diameter | 3/32 " |
| Material | Stainless Steel |
| C | 0.500 " |
| D | 0.264 " |
| E | 0.218 " |
| Es | 0.190 " |
| F | 0.109 " |
| J | 0.218 " |
| L | 1.580 " |
| Ls | 2.070 " |
| P | 1.188 " |
| U | 0.594 " |
| UNSPSC #: | 31162812 |
| TAA Compliant: | Yes |
