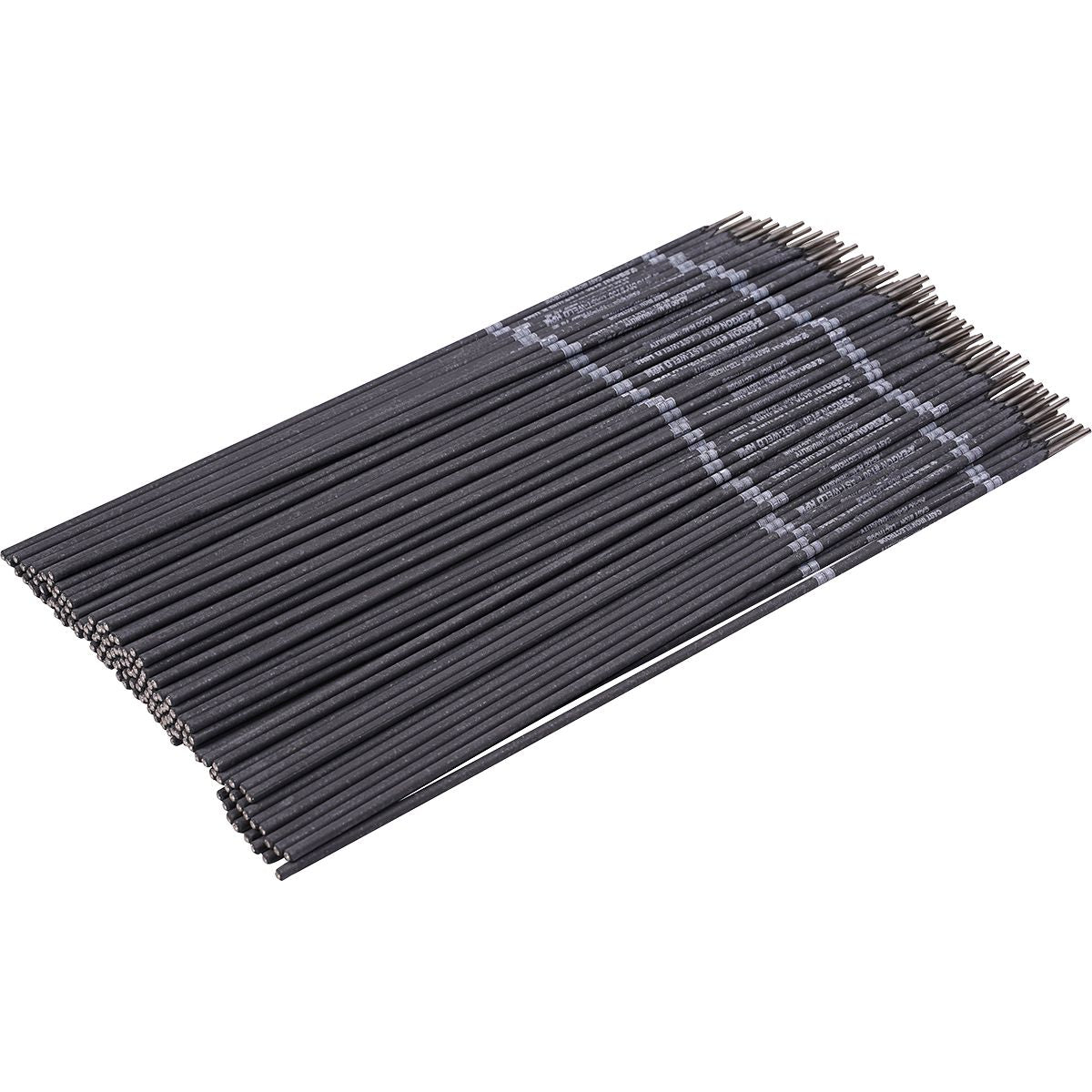

130 Cast Weld All Position Stick Electrode/Machinable/ Non-Conductive Flux/Polarity Dcep/Ac/Tensile 60000/All Position
(Pack of
5)
SKU:EG13050000 Item#: EG13050000
Special coating prevents the electrode from overheating, like conventional cast iron electrodes.
• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
131 Cast-Weld Special Purpose Cast Iron Electrode 1/8
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 1/16X36
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Heat Stick 400F Degrees
Couldn't load pickup availability
710 Stainless Steel Electrode 3/32"
Couldn't load pickup availability
Heat Stick 250F Degrees
Couldn't load pickup availability
Oxy-Therm Striker Plate
Couldn't load pickup availability
192053 Plasma Cutting Drag Shield
Couldn't load pickup availability
9-6506 Plasma Cutting Electrode
Couldn't load pickup availability
Product Description
Special coating prevents the electrode from overheating, like conventional cast iron electrodes.• Machinable deposits with no hard spots
• All-position even in the downhill position
• Perfect for dissimilar cast iron combinations
• Will join all weldable grades of cast iron, cast to steel and cast to stainless
• Nonconductive flux permits welding into holes or cracks without danger of side arcing
• Versatile – Welds all weldable grades of cast iron: gray, malleable, alloyed, ductile, mechanite, nodular, and Ni-Resist
• Tensile Strength: 60,000 PSI/414 Mpa
• Yield Strength: 45,000 PSI/310 Mpa
• Hardness: Up to 80 Rb
• Machinability: Excellent
• Color Match: Excellent
• Current: DCEP (DC+) or AC
Technical Specifications
| Item#: | EG13050000 |
|---|---|
| Welding Process | Stick |
| Type | Stick |
| Diameter | 3/32 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 80 HRB |
| Polarity | DCEP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.07 lb |
