133 Cast Iron Electric Nonconductive Flux Non Machinable Wear Resistant Overlays Polarity Dc/Ac 60000 Tensile 38 Rc
(Pack of
5)
SKU:EG13330000 Item#: EG13330000

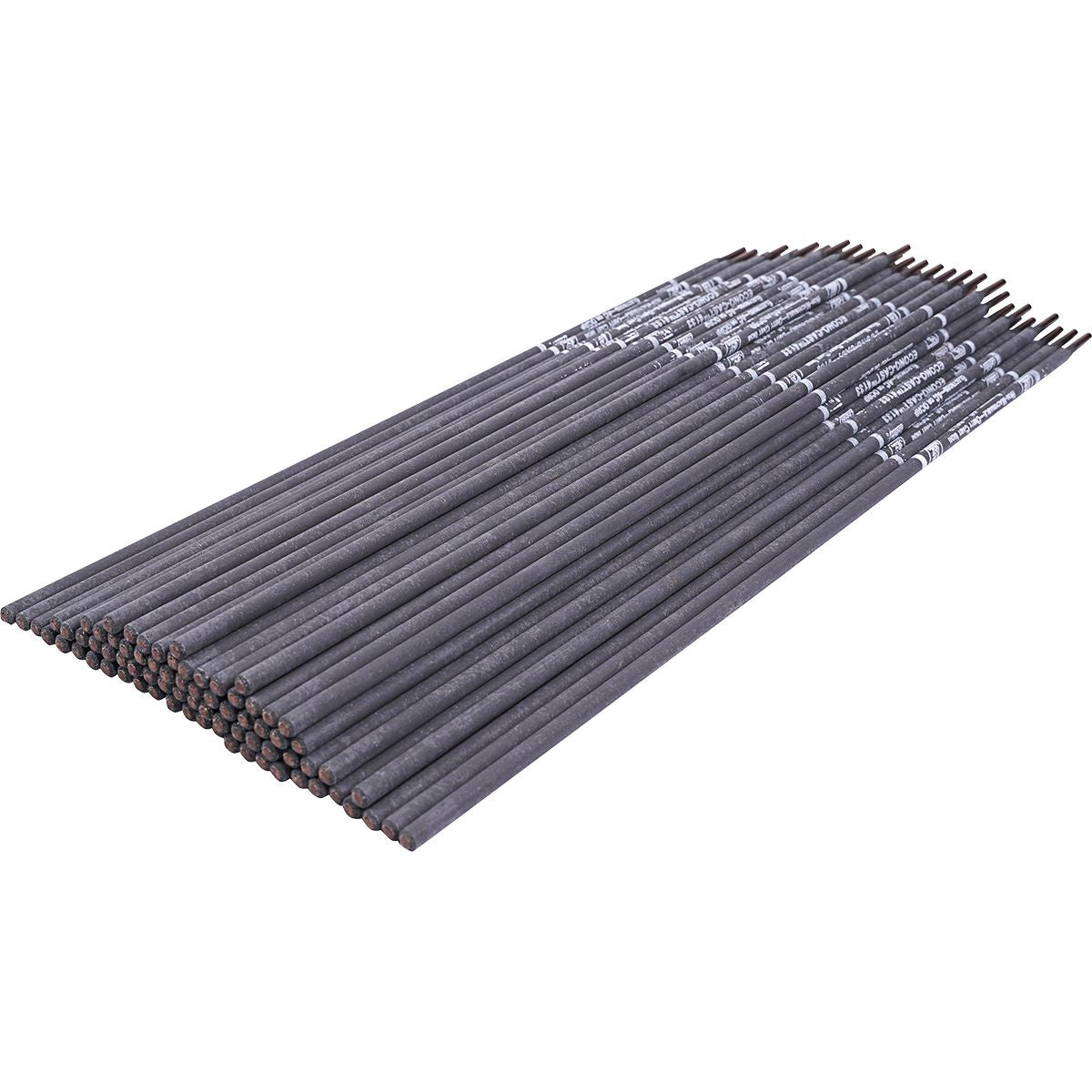

An all-position, non-machinable cast iron electrode designed for welding contaminated cast irons.
• Produces wear-resistant over-lays on cast iron
• Excellent for repairing slurry pumps and cast iron subjected to wear
• Produces sound, porosity-free welds even on dirty, greasy, contaminated cast iron
• Economical – Costs less than most nickel-based electrodes
• Non-Overheating – Allows use of the whole rod without it turning red, causing the flux to break off
• Nonconductive Flux – Will not side-arc in tight areas
• Can also be used as a base on poor cast iron prior to buildup with X-Ergon Cast-Weld™
• Tensile Strength: 60,000 PSI/414 MPa
• Hardness: 38 Rc
• Machinability: Non-machinable
• Color Match: Excellent, will rust to match cast iron if exposed to the elements
• Current: DC or AC
Frequently Bought Together
131 Cast-Weld Special Purpose Cast Iron Electrode 1/8
Couldn't load pickup availability
889 Cast Iron Stick Rod Electrode 1/8"
Couldn't load pickup availability
130T Machinable Cast Iron Tig Alloy 1/16X36
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
Couldn't load pickup availability
Industrial Graphite Rod 1 x 12"
Couldn't load pickup availability
1/4 on 1/4 Dimension I Double Pass Overlay
Couldn't load pickup availability
8-7500 Plasma Cutting Shield Cup
Couldn't load pickup availability
Oxy-Therm Striker Plate
Couldn't load pickup availability
192053 Plasma Cutting Drag Shield
Couldn't load pickup availability
Product Description
An all-position, non-machinable cast iron electrode designed for welding contaminated cast irons.• Produces wear-resistant over-lays on cast iron
• Excellent for repairing slurry pumps and cast iron subjected to wear
• Produces sound, porosity-free welds even on dirty, greasy, contaminated cast iron
• Economical – Costs less than most nickel-based electrodes
• Non-Overheating – Allows use of the whole rod without it turning red, causing the flux to break off
• Nonconductive Flux – Will not side-arc in tight areas
• Can also be used as a base on poor cast iron prior to buildup with X-Ergon Cast-Weld™
• Tensile Strength: 60,000 PSI/414 MPa
• Hardness: 38 Rc
• Machinability: Non-machinable
• Color Match: Excellent, will rust to match cast iron if exposed to the elements
• Current: DC or AC
Technical Specifications
| Item#: | EG13330000 |
|---|---|
| Welding Process | Stick Electrode |
| Type | Stick |
| Diameter | 5/32 " |
| Tensile Strength | 60,000 PSI |
| Base Metal | Cast Iron |
| Hardness | 38 HRC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 6.08 lb |
