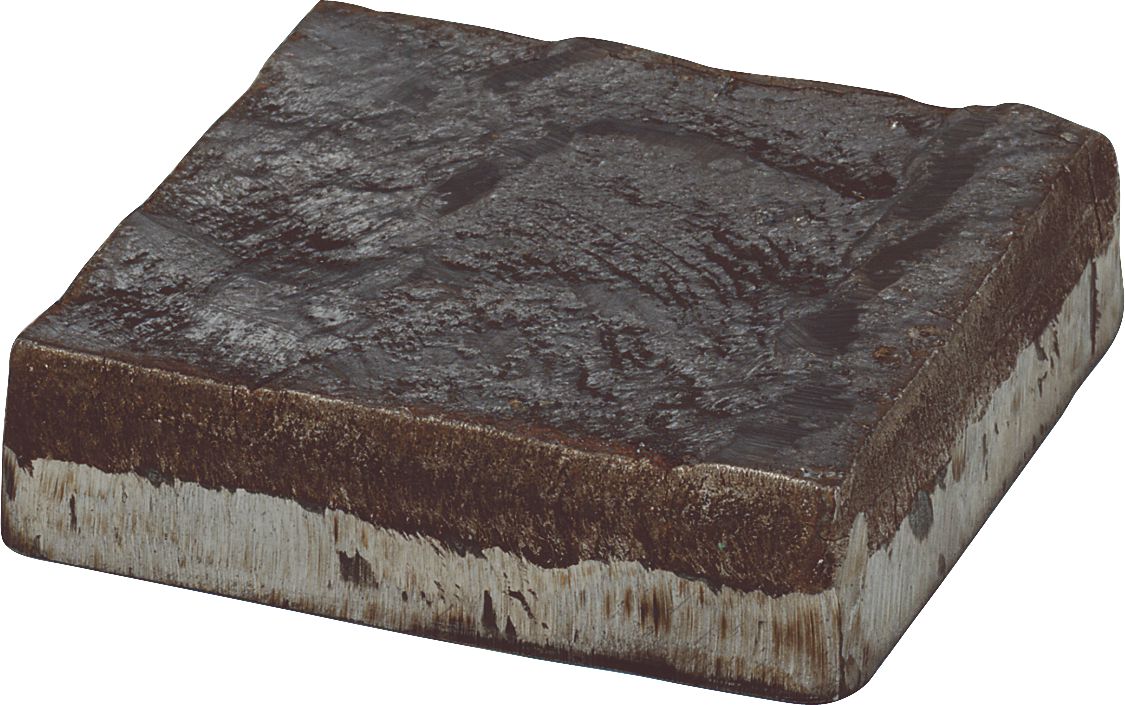

3/16 on 3/16 Dimension I Single Pass Overlay
(Pack of
1.0)
The Dimension I Double Pass Overlay is built for industries that demand durability in the face of tough environments. With its high carbide content (averaging 35% in a strong austenitic matrix), this abrasion-resistant plate outperforms standard chrome carbide options, delivering superior protection against wear and reducing labor and replacement costs. Featuring minimal resistance to media flow, uniform bead deposits, and exceptional flatness for precise applications, it’s tailored for mining, construction, and heavy industries.
• Bulk hardness: Rc 58-62
• High carbide content (an average of 35%+) provides excellent abrasion and some impact wear resistance – reduces labor and replacement costs
• Extremely flat for applications where close tolerances are necessary
• Uniform bead deposits with no high spots
• Austenitic matrix for impact and corrosion resistance
Excellent abrasion resistance
Typical Applications
• Chutes and conveyors for transporting mid-sized rocks
• Mining and aggregate truck beds
• Auger flights
• Dump beds and bucket liners
• Skid pads
• Augers
• Chain guides

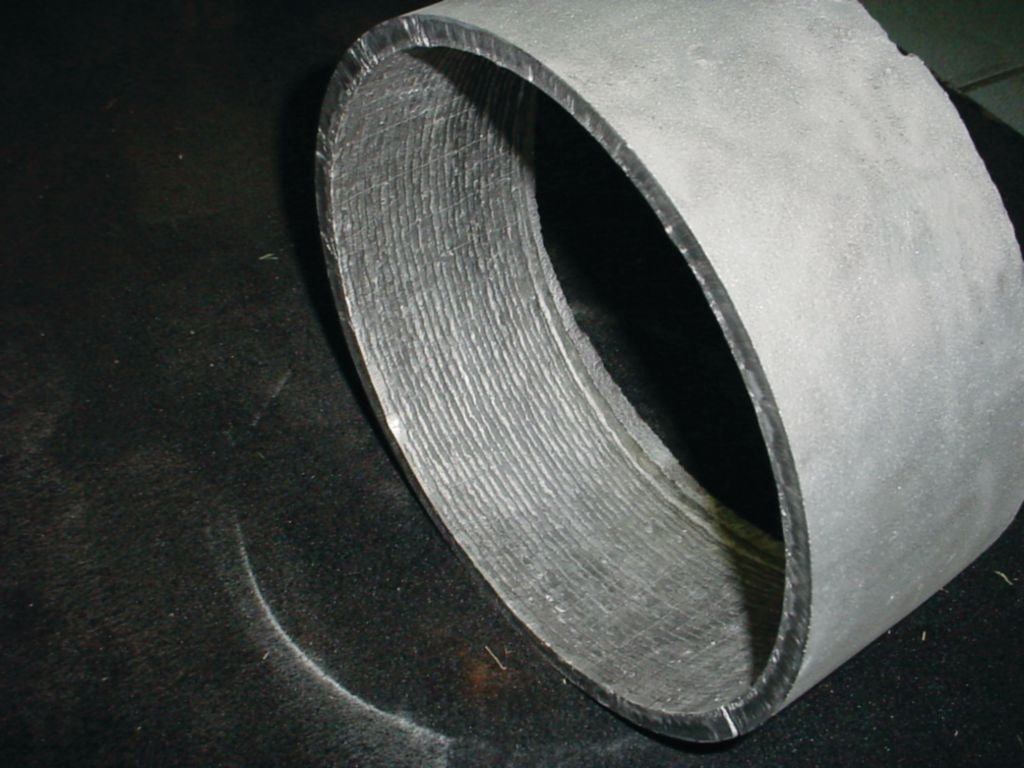

• Pipe conveyor lines
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
Couldn't load pickup availability

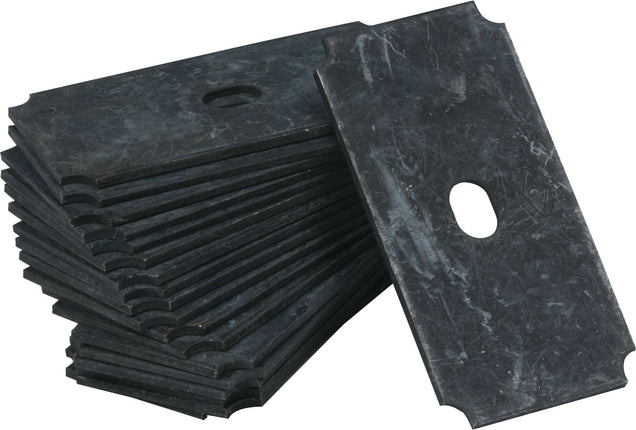

Wear Plates Used By Maintenance Welder 3/16X3X4
Couldn't load pickup availability
Spring Loaded Trigger Torch Lighter
Couldn't load pickup availability
1/4 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
1/8 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
Product Description
The Dimension I Double Pass Overlay is built for industries that demand durability in the face of tough environments. With its high carbide content (averaging 35% in a strong austenitic matrix), this abrasion-resistant plate outperforms standard chrome carbide options, delivering superior protection against wear and reducing labor and replacement costs. Featuring minimal resistance to media flow, uniform bead deposits, and exceptional flatness for precise applications, it’s tailored for mining, construction, and heavy industries.• Bulk hardness: Rc 58-62
• High carbide content (an average of 35%+) provides excellent abrasion and some impact wear resistance – reduces labor and replacement costs
• Extremely flat for applications where close tolerances are necessary
• Uniform bead deposits with no high spots
• Austenitic matrix for impact and corrosion resistance
Excellent abrasion resistance
Typical Applications
• Chutes and conveyors for transporting mid-sized rocks
• Mining and aggregate truck beds
• Auger flights
• Dump beds and bucket liners
• Skid pads
• Augers
• Chain guides
• Pipe conveyor lines
Technical Specifications
| Item#: | VP2610B |
|---|---|
| Type | Single Pass Overlay |
| Total Thickness | 3/8 " |
| Plate Width | 48 " |
| Plate Length | 96 " |
| Plate Weight | 512 lb |
| Size | 3/16 on 3/16 |
| Bulk Hardness | Rc 58-62 |
| Flatness Tolerance | +/- 1/8” over 5’- 0” |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
