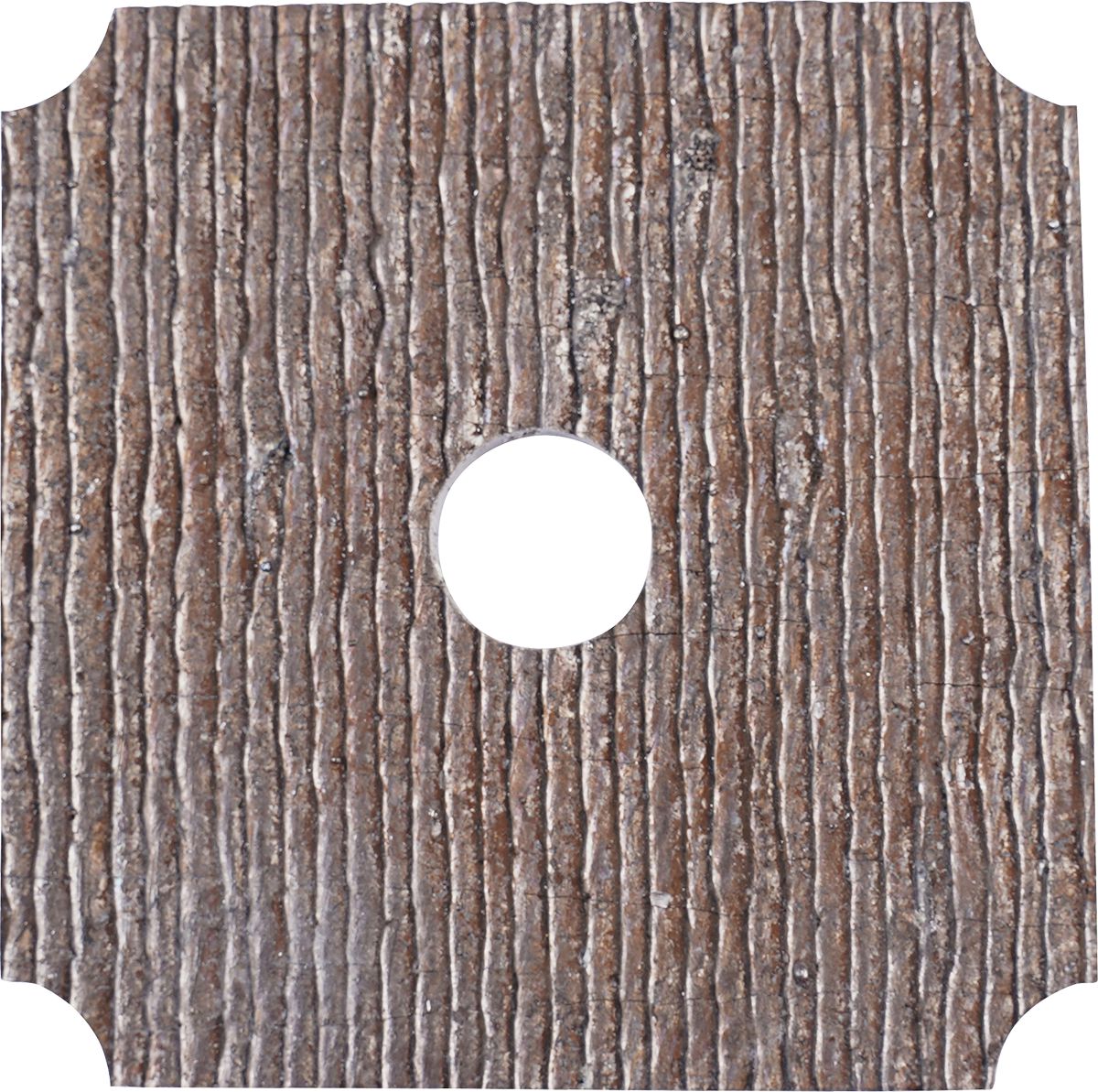

Cryogeniclly Treated Carbide Overlay Plates Light Weight Hardness 66-68 Rc Service Temperature Up To 400F With Plug Hole
(Pack of
10)
SKU:EG09910404 Item#: EG09910404
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.
• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Frequently Bought Together
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 1/4X4X5
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 3/16X3X4
$0.00
Couldn't load pickup availability
Flat Soapstone 1/2"
$0.00
Couldn't load pickup availability
Pipe Wrap Around
$0.00
Couldn't load pickup availability
Product Description
Protects equipment without the added weight and capacity reduction of standard carbide overlay plates. Lasts up to 13 times longer than standard wearplates so it saves a tremendous amount of maintenance labor. Thin profile even allows it to be formed to contoured surfaces – including pipe as small as 2.5" diameter.• Economical – Long life extends maintenance intervals to reduce labor expense
• Extremely Wear Resistant – Lasts up to 13 times longer than AR-400
• Lightweight – Reduces added weight for hardfacing by 5 times over standard carbide overlay plate
• Formable — Thin plates can be cut or contoured to small diameters
• Surface Hardness: 66-68Rc
• ASTM G65 Abrasion Test: 19.1298mm³ vol. loss
• Base Plate Thickness: 5/64"
• Carbide Hardfacing Thickness: 1/8"
• Service Temperature: Up to 400°F/(204°C)
Technical Specifications
| Item#: | EG09910404 |
|---|---|
| Type | Carbide Overlay Plate |
| Total Thickness | 13/64 " |
| Plate Width | 4 " |
| Plate Length | 4 " |
| Size | 4" x 4" x 13/64 " |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
| Weight: | 5.83 lb |
