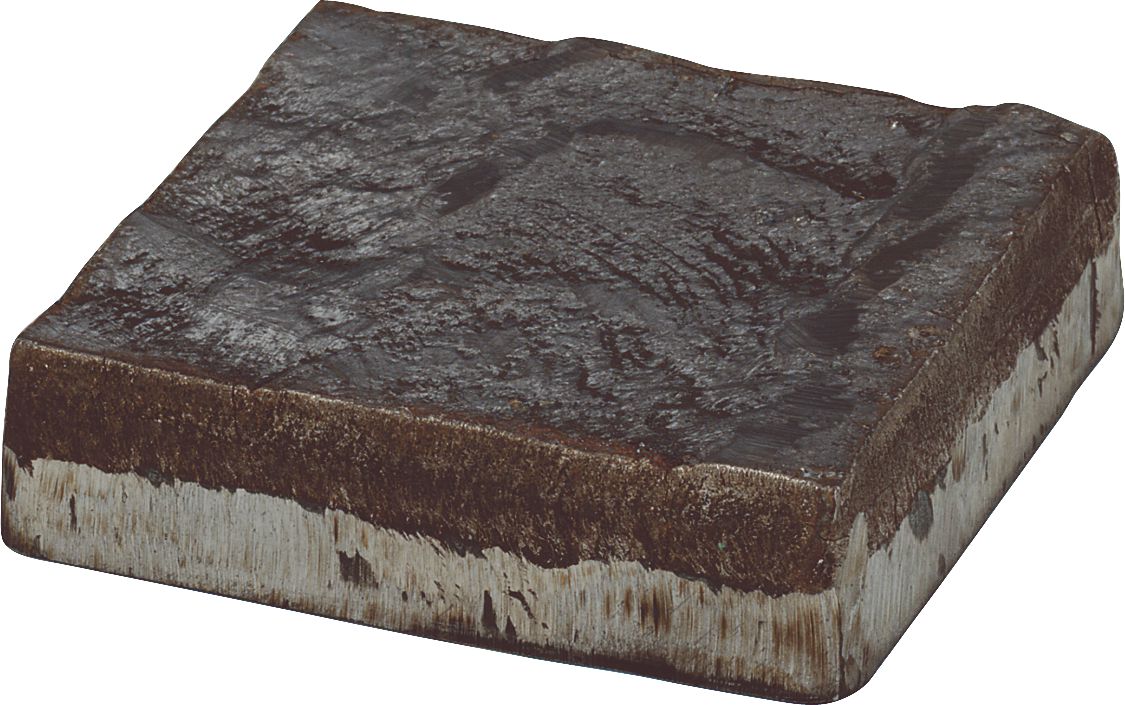

1/8 on 1/4 Dimension I Single Pass Overlay, 30% Carbide, Rc 58-62 Bulk Hardness, 512lbs Plate Weight, 0.13" Overlay Thickness
(Pack of
1)
The Dimension I Double Pass Overlay is built for industries that demand durability in the face of tough environments. With its high carbide content (averaging 35% in a strong austenitic matrix), this abrasion-resistant plate outperforms standard chrome carbide options, delivering superior protection against wear and reducing labor and replacement costs. Featuring minimal resistance to media flow, uniform bead deposits, and exceptional flatness for precise applications, it’s tailored for mining, construction, and heavy industries.
• Bulk hardness: Rc 58-62
• High carbide content (an average of 35%+) provides excellent abrasion and some impact wear resistance – reduces labor and replacement costs
• Extremely flat for applications where close tolerances are necessary
• Uniform bead deposits with no high spots
• Austenitic matrix for impact and corrosion resistance
Excellent abrasion resistance
Typical Applications
• Chutes and conveyors for transporting mid-sized rocks
• Mining and aggregate truck beds
• Auger flights
• Dump beds and bucket liners
• Skid pads
• Augers
• Chain guides

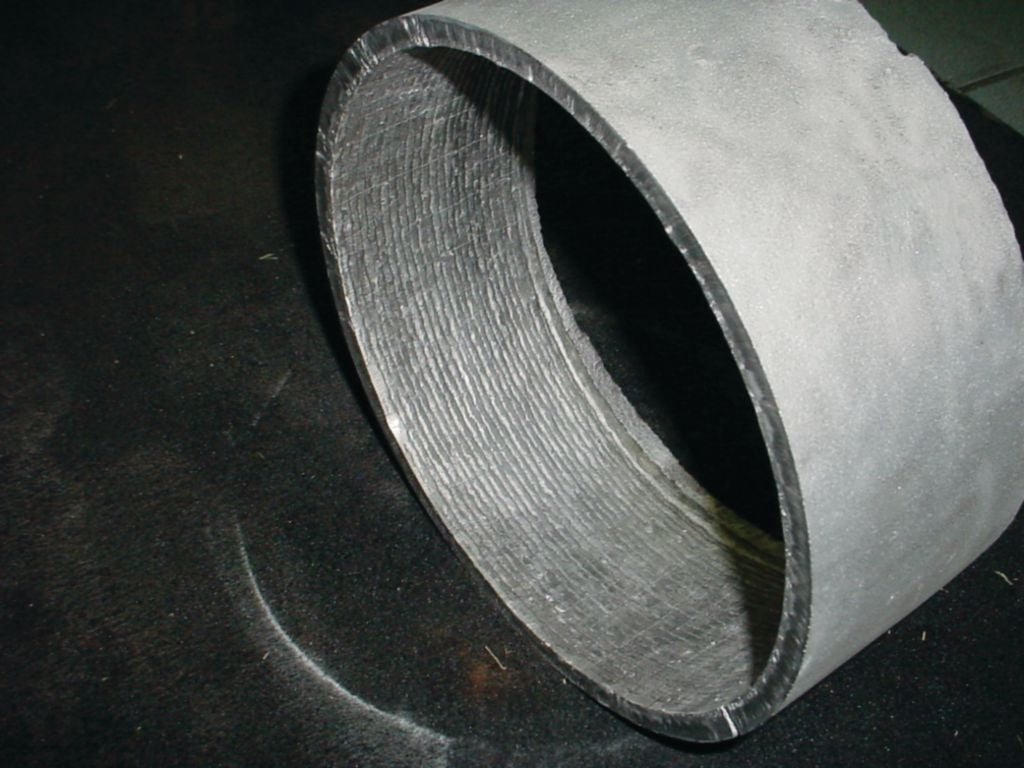

• Pipe conveyor lines
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
1/4 on 1/2 Dimension I Single Pass Overlay
Couldn't load pickup availability
1/4 on 1/4 Dimension I Single Pass Overlay
Couldn't load pickup availability
201 Rectangular Wear Disc Plate 3 x 6 x 5/32"
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder 3/16X3X4
Couldn't load pickup availability
Heavy Duty Plastic Welding Rod Protecting Tube
Couldn't load pickup availability
Welding Container Drawer 19 - Welding PPE
Couldn't load pickup availability
Product Description
The Dimension I Double Pass Overlay is built for industries that demand durability in the face of tough environments. With its high carbide content (averaging 35% in a strong austenitic matrix), this abrasion-resistant plate outperforms standard chrome carbide options, delivering superior protection against wear and reducing labor and replacement costs. Featuring minimal resistance to media flow, uniform bead deposits, and exceptional flatness for precise applications, it’s tailored for mining, construction, and heavy industries.• Bulk hardness: Rc 58-62
• High carbide content (an average of 35%+) provides excellent abrasion and some impact wear resistance – reduces labor and replacement costs
• Extremely flat for applications where close tolerances are necessary
• Uniform bead deposits with no high spots
• Austenitic matrix for impact and corrosion resistance
Excellent abrasion resistance
Typical Applications
• Chutes and conveyors for transporting mid-sized rocks
• Mining and aggregate truck beds
• Auger flights
• Dump beds and bucket liners
• Skid pads
• Augers
• Chain guides
• Pipe conveyor lines
Technical Specifications
| Item#: | VP2605B |
|---|---|
| Type | Single Pass Overlay |
| Total Thickness | 3/8 " |
| Plate Width | 48 " |
| Plate Length | 96 " |
| Plate Weight | 512 lb |
| Size | 1/8 on 1/4 |
| Bulk Hardness | Rc 58-62 |
| Flatness Tolerance | +/- 1/8” over 5’- 0” |
| UNSPSC #: | 30102201 |
| TAA Compliant: | Yes |
