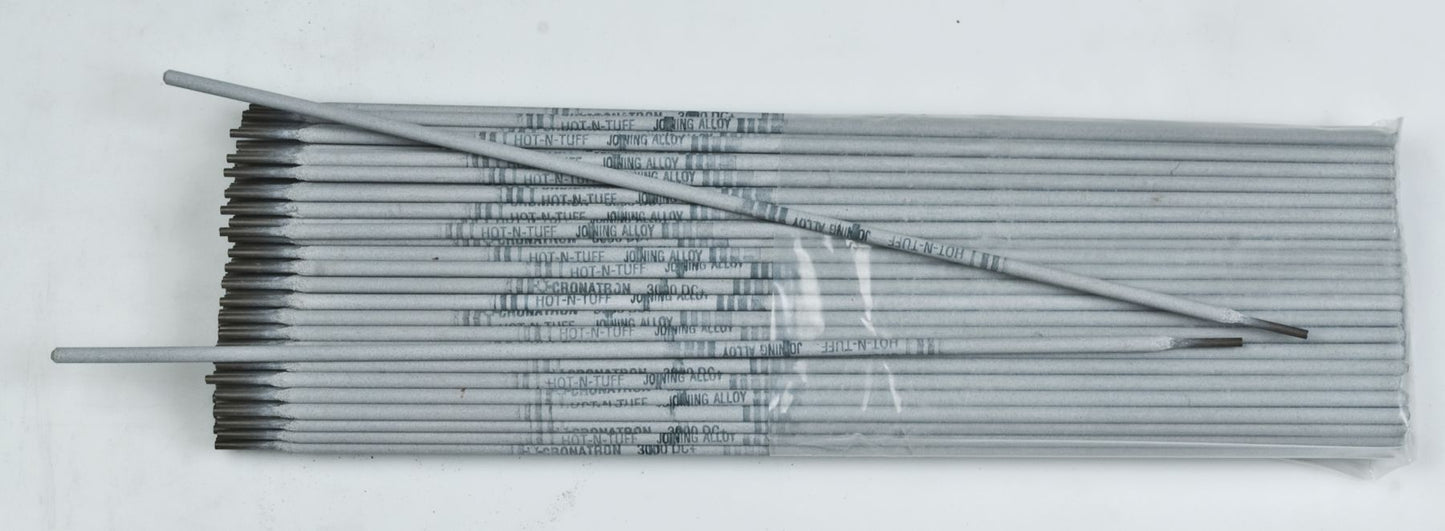

3000 Nickel Stick Rod Electrode, Flux Coated, 50 to 70 Amps, 33% Elongation, DCRP Polarity, Extremely Corrosion-Resistant, 3/32"
(Pack of
5)
SKU:CW1992 Item#: CW1992
Compatible with Inconel, other nickel-based alloys, Monel® and dissimilar alloys.
Superior Advantages
• Extremely corrosion-resistant
• High temperature usage – up to 2,000°F (1,093°C)
• Low temperature usage – down to –320°F (–196°C)
• Maximum versatility
• Dissimilar metals joining
Withstands operating temperatures from –320°F to +2,000°F (–196°C to +1,093°C).
Tensile Strength: 100,000 PSI
Elongation: 33%
Polarity: DC Reverse
Typical Applications
• Furnaces and boilers
• Heat treat baskets
• Power plants
• Chemical processing
Usage ProcedureUse DC reverse polarity with normal maintenance welding procedures. Surface should be as clean as possible. Hold a short arc and tilt Âelectrode 10° in the direction of travel. Remove slag between passes. Preheating the weld metal is not necessary unless the base metal and/or thickness require it. Do not weave more than twice the diameter of the core wire.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
ER309L Stainless Steel TIG Wire 1/8"
$0.00
Couldn't load pickup availability
383 Stainless Steel MIG Welding Wire 0.035"
$0.00
Couldn't load pickup availability
3000 Nickel TIG Wire 3/32"
$0.00
Couldn't load pickup availability
Oxygen Safety Cap Heavy Duty
$0.00
Couldn't load pickup availability
1/2 on 1/2 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
1/4 on 3/8 Dimension I Single Pass Overlay
$0.00
Couldn't load pickup availability
331 Mild and Carbon Steel MIG Welding Wire 0.03"
$0.00
Couldn't load pickup availability
321 Mild and Carbon Steel MIG Welding Wire 0.03"
$0.00
Couldn't load pickup availability
E7024Mild /Carbon Steel Stick Electrode 3/16"
$0.00
Couldn't load pickup availability
Product Description
Compatible with Inconel, other nickel-based alloys, Monel® and dissimilar alloys.Superior Advantages
• Extremely corrosion-resistant
• High temperature usage – up to 2,000°F (1,093°C)
• Low temperature usage – down to –320°F (–196°C)
• Maximum versatility
• Dissimilar metals joining
Withstands operating temperatures from –320°F to +2,000°F (–196°C to +1,093°C).
Tensile Strength: 100,000 PSI
Elongation: 33%
Polarity: DC Reverse
Typical Applications
• Furnaces and boilers
• Heat treat baskets
• Power plants
• Chemical processing
Usage ProcedureUse DC reverse polarity with normal maintenance welding procedures. Surface should be as clean as possible. Hold a short arc and tilt Âelectrode 10° in the direction of travel. Remove slag between passes. Preheating the weld metal is not necessary unless the base metal and/or thickness require it. Do not weave more than twice the diameter of the core wire.
Technical Specifications
| Item#: | CW1992 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 100,000 PSI |
| Elongation | 33 % |
| Base Metal | Nickel |
| Polarity | DCRP |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 5.0 lb |
