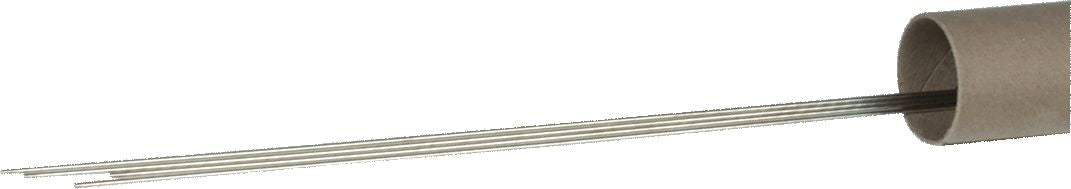

40 High Silver Bare Brazing Rod 1/16"
(Pack of
6)
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.
Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
Cadmium-free, use for food, beverage and kitchen equipment
Tensile Strength: 85,000 PSIMelting Temperature: 1,140°F (616°C)Recommended Flux: F40
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
41 Silver Flux Coated Brazing Rod 3/32"
Couldn't load pickup availability
263 Bare Silver Alloy 1/16X6FT
Couldn't load pickup availability
40 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
263 Bare Silver Alloy 1/16X6FT
Couldn't load pickup availability
40 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
47 Sil-Phos Bare Brazing Rod 1/8"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.03"
Couldn't load pickup availability
ER70S-6 Mild/Carbon Steel MIG Welding Wire 0.023"
Couldn't load pickup availability
Solid Solder 1/32"
Couldn't load pickup availability
Product Description
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
Cadmium-free, use for food, beverage and kitchen equipment
Tensile Strength: 85,000 PSIMelting Temperature: 1,140°F (616°C)Recommended Flux: F40
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Technical Specifications
| Item#: | CW1925 |
|---|---|
| Welding Process | Brazing |
| Type | Bare |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 85,000 PSI |
| Melting Temperature | 1560-2000 °F |
| Color | Silver |
| Base Metal | Silver |
| Silver Content | High |
| Recommended Flux | F40 |
| Description | High Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 1.0 lb |
