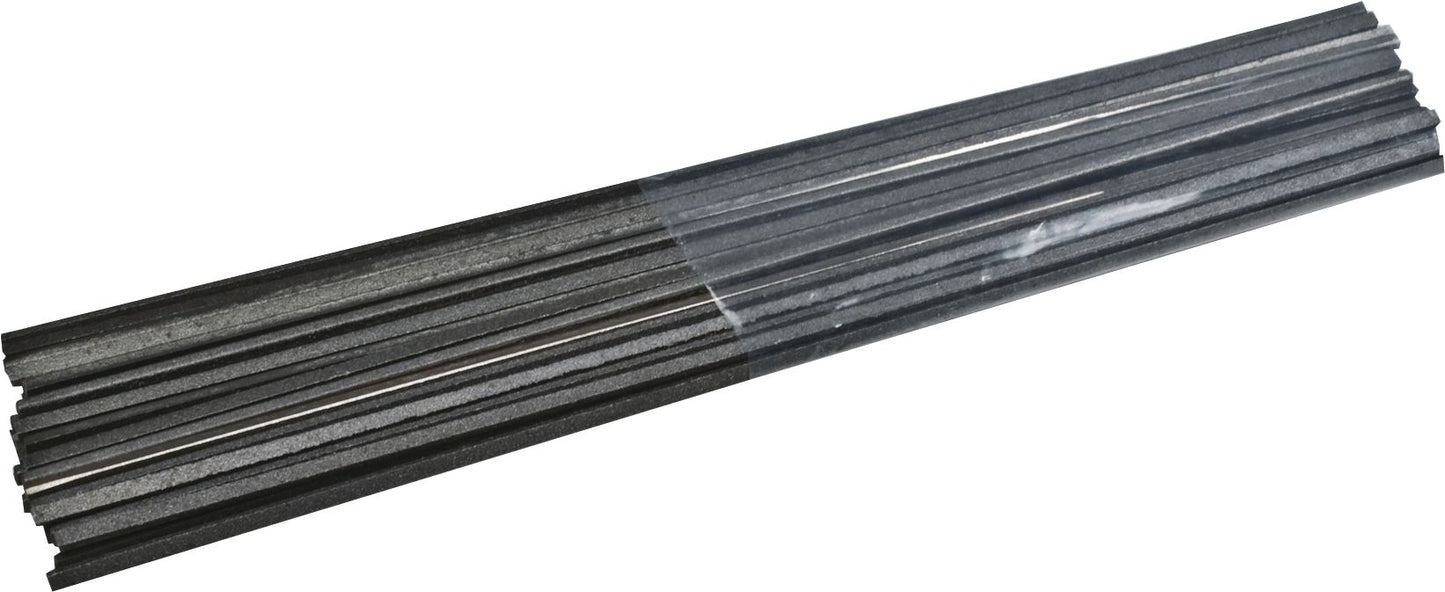

22 Cast Iron Bare Brazing Rod, Gray, 20" Length, 3/16"
(Pack of
5)
SKU:CW3062 Item#: CW3062
A selection of brazing alloys for joining cast iron and brazing sheet metal.
Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
“True Color Match” Cast Iron
Tensile Strength: 53,000 PSI
Hardness: Rc 18-20
Bonding Temperature: 2,300°F (1,260°C)
Recommended Flux: F22
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureUse neutral flame and preheat broad area along braze line. Concentrate flame on rod end and allow weld drops to flow on joint. Continue heating until it wets out and continue process. If a second layer is required, hold torch parallel to the work and apply drop-by-drop. When working with cast iron, avoid localized heating and cover finished braze to retard cooling process.
Frequently Bought Together
54 Medium Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
52 Silver Flux Coated Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
52 Aluminum/Zinc Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
30 Copper and Steel Flux Coated Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 3/32"
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .062" 33lb
$0.00
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb
$0.00
Couldn't load pickup availability
Product Description
A selection of brazing alloys for joining cast iron and brazing sheet metal.Superior Advantages
• Solid, dense deposits that can be machined
• Free-flowing for thin lapping and butted metal joining
• No base metal dilution making tough cast iron repairs possible
“True Color Match” Cast Iron
Tensile Strength: 53,000 PSI
Hardness: Rc 18-20
Bonding Temperature: 2,300°F (1,260°C)
Recommended Flux: F22
Typical Applications
• Sheet metal and auto body repairs
• Engine heads and blocks
• Piping, plumbing and pumps
• Gears, sprockets and pulleys
Usage ProcedureUse neutral flame and preheat broad area along braze line. Concentrate flame on rod end and allow weld drops to flow on joint. Continue heating until it wets out and continue process. If a second layer is required, hold torch parallel to the work and apply drop-by-drop. When working with cast iron, avoid localized heating and cover finished braze to retard cooling process.
Technical Specifications
| Item#: | CW3062 |
|---|---|
| Welding Process | Brazing |
| Type | Bare |
| Diameter | 3/16 " |
| Length | 18 " |
| Tensile Strength | 53,000 PSI |
| Melting Temperature | 1560-2000 °F |
| Color | Gray |
| Base Metal | Cast Iron |
| Recommended Flux | F22 |
| UNSPSC #: | 23271804 |
| TAA Compliant: | No |
| Weight: | 5.0 lb |
