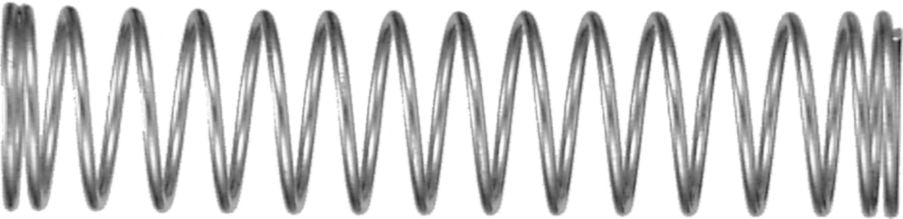

Compression Spring, Steel, 18 Wire Gauge, 19/32" ID, 11/16" OD, 3" Length, 16 Coils, 7lbs Maximum Work Load
(Pack of 5)

SKU:89581 Item#: 89581

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 5/8 x 2"

Compression Spring 3/8 x 2-3/4"

Compression Spring 19/32 x 2-1/2"

Anti-Rattle/Squeak BRS Tape 30mm x 10'

Adhesive-Back Shim Stock 1/8 x 5/8" x 50'

Butyl Windshield Tape 3/8" x 15'

Premium Nitrile Gloves, Black, 6 Mil, Medium, 100/Box

Wyper Super Prep Towel 9 x 14"

Premium Nitrile Gloves, Black, 6 Mil, Medium, 1,000/Case

Rocker Panel Molding Clip Nylon White 12 x 20mm

Front/Rear Bumper Push-Type Retainer Nylon 20mm

Bumper Clip Push-Type Retainer Nylon 18mm

Adhesive-Back Shim Stock 1/8 x 5/8" x 50'

Butyl Windshield Tape 3/8" x 15'

Humpback All-in-One Pressure Washer System 3,000 PSI

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89581
Type	Compression Spring
O.D.	11/16 "
Length	3 "
I.D.	19/32 "
Wire Diameter	0.048 "
Wire Gauge	18
Number of Coils	16
Rate	2 lb./in.
Maximum Work Load	7 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.09 lb
