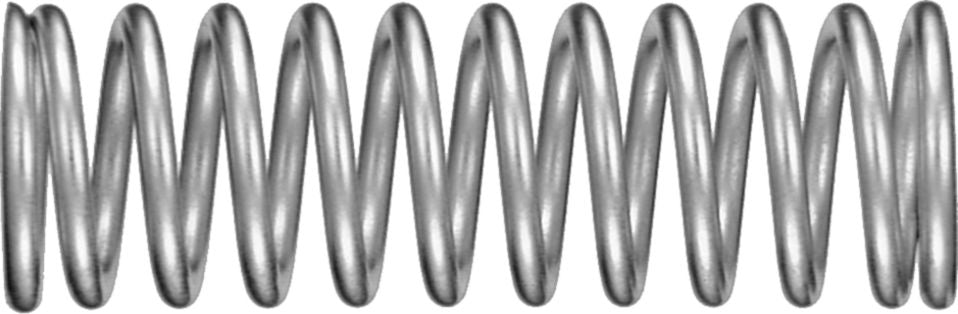

Compression Spring 3/4 x 3"
(Pack of
2.0)
• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Paint Marker Green
Couldn't load pickup availability
Seam Sealing Tape 8mm x 26'
Couldn't load pickup availability
Marker Pen Red
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Paint Marker Green
Couldn't load pickup availability
Seam Sealing Tape 8mm x 26'
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Seam Sealing Tape 8mm x 26'
Couldn't load pickup availability
Marker Pen Red
Couldn't load pickup availability
Seam Sealing Tape 10mm x 26'
Couldn't load pickup availability
Compression Spring 3/8 x 2-1/2"
Couldn't load pickup availability
Compression Spring 9/64 x 1-3/8"
Couldn't load pickup availability
Compression Spring 11/32 x 2-1/4"
Couldn't load pickup availability
Product Description
• The most common spring type• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.
Technical Specifications
| Item#: | 89611 |
|---|---|
| Type | Compression Spring |
| O.D. | 1 " |
| Length | 3 " |
| I.D. | 3/4 " |
| Wire Diameter | 0.120 " |
| Wire Gauge | 11 |
| Number of Coils | 11-1/2 |
| Rate | 45.6 lb./in. |
| Maximum Work Load | 70 lb |
| Material | Steel |
| UNSPSC #: | 31161904 |
| TAA Compliant: | Yes |
| Weight: | 0.26 lb |
