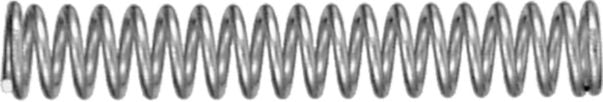

Compression Spring, Steel, 24 Wire Gauge, 9/64" ID, 3/16" OD, 1-3/8" Length, 19 Coils, 4lbs Maximum Work Load
(Pack of 20)

SKU:89632 Item#: 89632

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring Kit 166Pcs

Compression and Extension Spring Kit 322Pcs

Compression Spring Kit 166Pcs

Marker Pen Red

Universal Sorbent Pad

Anti-Rattle/Squeak BRS Tape 8 x 10"

Premium Nitrile Gloves, Black, 6 Mil, Large, 1,000/Case

Premium Nitrile Gloves, Black, 6 Mil, X-Large, 1,000/Case

Marker Pen Red

Bumper and Wheel Well Liner Push-Type Retainer

Fender Apron Drive Rivet 8mm Hole

Engine Under Cover Drive Rivet Plastic 7mm Hole

Marker Pen Red

Anti-Rattle/Squeak BRS Tape 8 x 10"

Seam Sealing Tape 8mm x 26'

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89632
Type	Compression Spring
O.D.	3/16 "
Length	1-3/8 "
I.D.	9/64 "
Wire Diameter	0.023 "
Wire Gauge	24
Number of Coils	19
Rate	6.23 lb./in.
Maximum Work Load	4 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.03 lb
