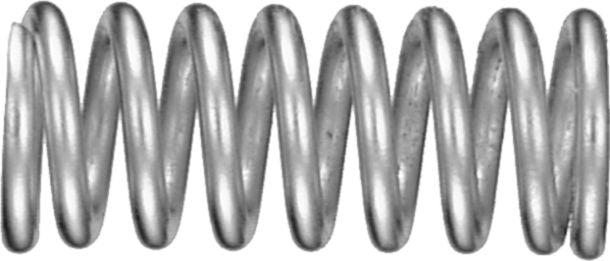

Compression Spring, Steel, 11 Wire Gauge, 9/16" ID, 13/16" OD, 1-7/8" Length, 8-1/2 Coils, 90lbs Maximum Work Load
(Pack of 2)

SKU:89615 Item#: 89615

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

Compression Spring 5/16 x 2"

Compression Spring 13/32 x 2"

Compression Spring 7/32 x 2"

Glossy Back Paper Floor Mat, 17" x 22"

Wyper Super Prep Towel 9 x 14"

Butyl Windshield Tape 1/4" x 15'

Seam Sealing Tape 10mm x 26'

Marker Pen Yellow

High-Strength Double Side Molding Tape 1/2" x 50'

Bumper Fascia General Purpose Split Rivet 3/16"

Fender Splash Shield Push Rivet Nylon 7mm Hole

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Wyper Super Prep Towel 9 x 14"

Butyl Windshield Tape 1/4" x 15'

Marker Pen Pink

Product Description

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Technical Specifications

Item#:	89615
Type	Compression Spring
O.D.	13/16 "
Length	1-7/8 "
I.D.	9/16 "
Wire Diameter	0.120 "
Wire Gauge	11
Number of Coils	8-1/2
Rate	149 lb./in.
Maximum Work Load	90 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.14 lb
