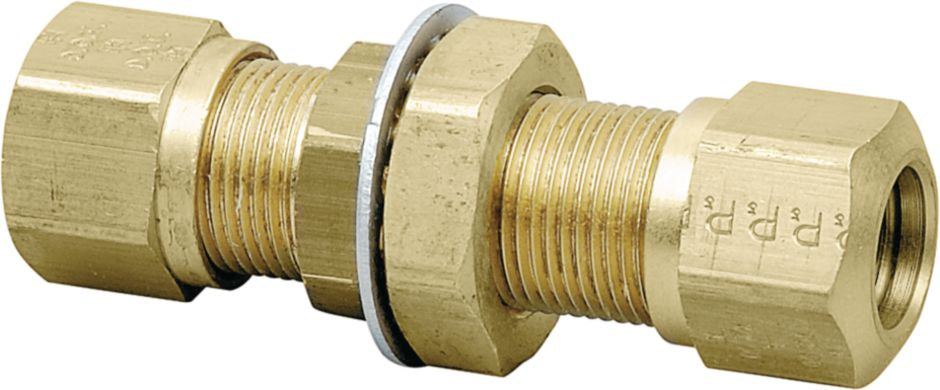

DOT Air Brake Compression Union for Nylon Tubing, Brass, 1/2 x 1/2", Tube x Tube
(Pack of
2)
SKU:84306 Item#: 84306
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-11
Frequently Bought Together
Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4
$0.00
Couldn't load pickup availability
DOT Transmission Connector Male Brass 1/16 x 5/32"
$0.00
Couldn't load pickup availability
DOT Transmission Connector Male Brass 1/16 x 1/8"
$0.00
Couldn't load pickup availability
DOT Compression Union Brass 1/2"
$0.00
Couldn't load pickup availability
DOT Elbow Male 90° Brass 1/4 x 3/8-18
$0.00
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Air Conditioning Sealing Washer Silver 15.5mm
$0.00
Couldn't load pickup availability
DOT Compression Union Brass 3/8"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 84306 |
|---|---|
| Fitting Type | Compression - Nylon |
| Style | DOT |
| Material | Brass |
| Configuration | Bulkhead Union |
| Connection Type A x B | Tube x Tube |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/2 " |
| Size | 1/2 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 0.62 lb |
