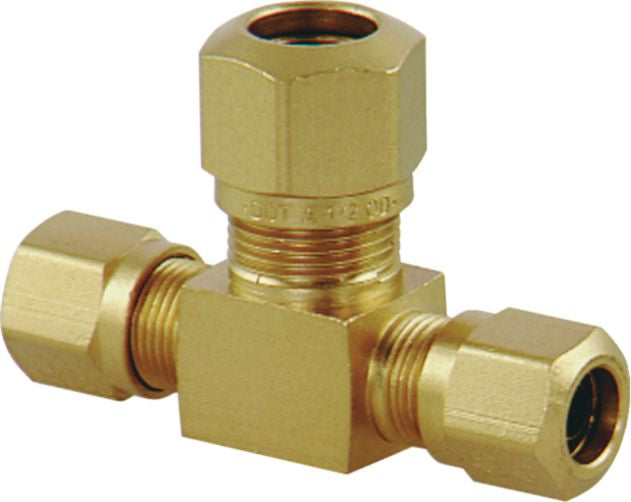

DOT Air Brake Compression Union Tee for Nylon Tubing, Brass, 5/8 x 5/8 x 5/8", Tube x Tube x Tube
(Pack of
2)
SKU:96889 Item#: 96889
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
DOT Compression Elbow Male 90° Brass 3/4 x 1/2"
Couldn't load pickup availability
Parker DOT Compression - Nylon Female Elbow 90 Degrees 1/2x3/8
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/2"
Couldn't load pickup availability
Parker DOT Field Attachable - Female Connector 1/2x7/8-20
Couldn't load pickup availability
Parker DOT Compression - Nylon Tubing Union 1/4x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Universal Vacuum Hose Connector 3/16"
Couldn't load pickup availability
Ergonomic Blow Gun Rubber Tip
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
Rubber Air Hose Assembly 1/4" x 25'
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 96889 |
|---|---|
| Fitting Type | Compression - Nylon |
| Style | DOT |
| Material | Brass |
| Configuration | Union Tee |
| Connection Type A x B x C | Tube x Tube x Tube |
| Fitting Dimension A | 5/8 " |
| Fitting Dimension B | 5/8 " |
| Fitting Dimension C | 5/8 " |
| Size | 5/8"TB |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.94 lb |
