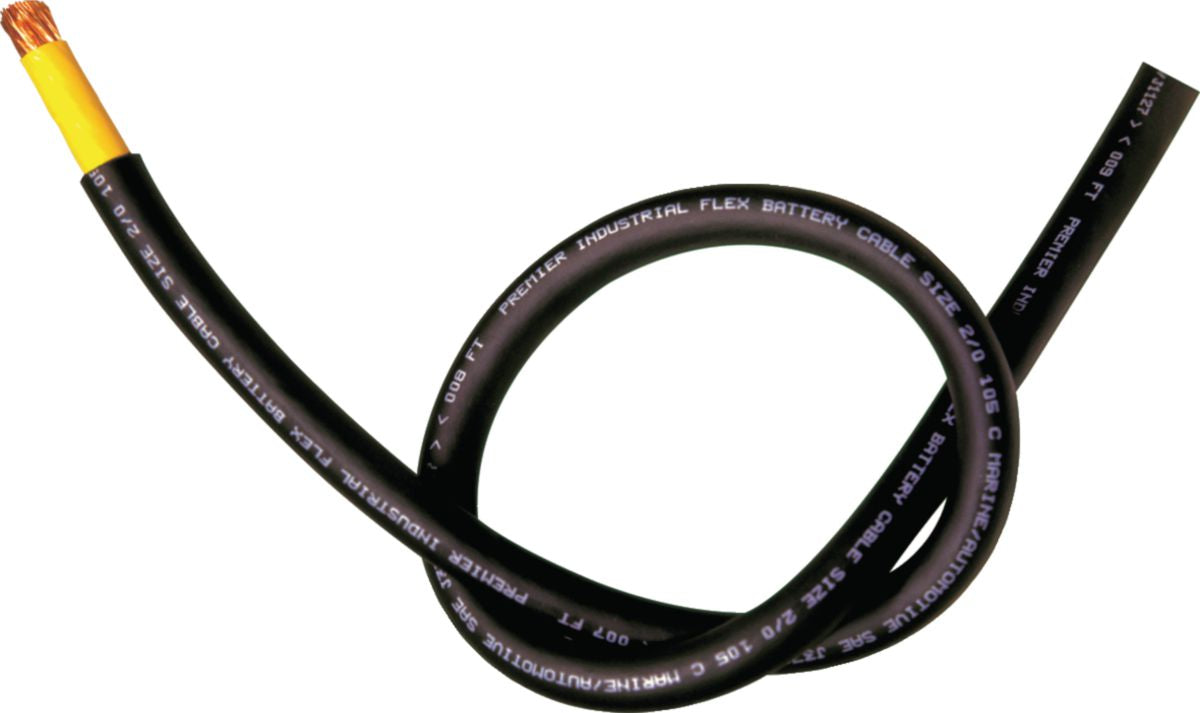

Flexible Battery Cable, 2/0 AWG, Total Strands 1273, 25' Length, Black, 600 Volts, Orange-Crimp Color Code, Copper Conductor
(Pack of
1)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-69
Frequently Bought Together
Battery Cable 3/0 AWG Black Purple-Crimp Code
Couldn't load pickup availability
Battery Cable 1 AWG 50' Pink
Couldn't load pickup availability
Flexible Battery Cable 4 AWG Red 25'
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
Couldn't load pickup availability
Procell AAA Alkaline Battery 1.5V
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Model 2100 12/24 Volt Power Pack
Couldn't load pickup availability
Deutsch-Style DTP Series Plug, 2 Positions
Couldn't load pickup availability
Deutsch-Style - DTP Series Plug, 4 Positions
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52667 |
|---|---|
| Cable Gauge | 2/0 |
| Total Strands | 1,273 |
| Color | Black |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 25 ft |
| Crimp Color Code | Orange |
| Amperage Capacity at 140°F (60°C) | 225 A |
| Amperage Capacity at 167°F (75°C) | 265 A |
| Amperage Capacity at 194°F (90°C) | 300 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 13.9 lb |
