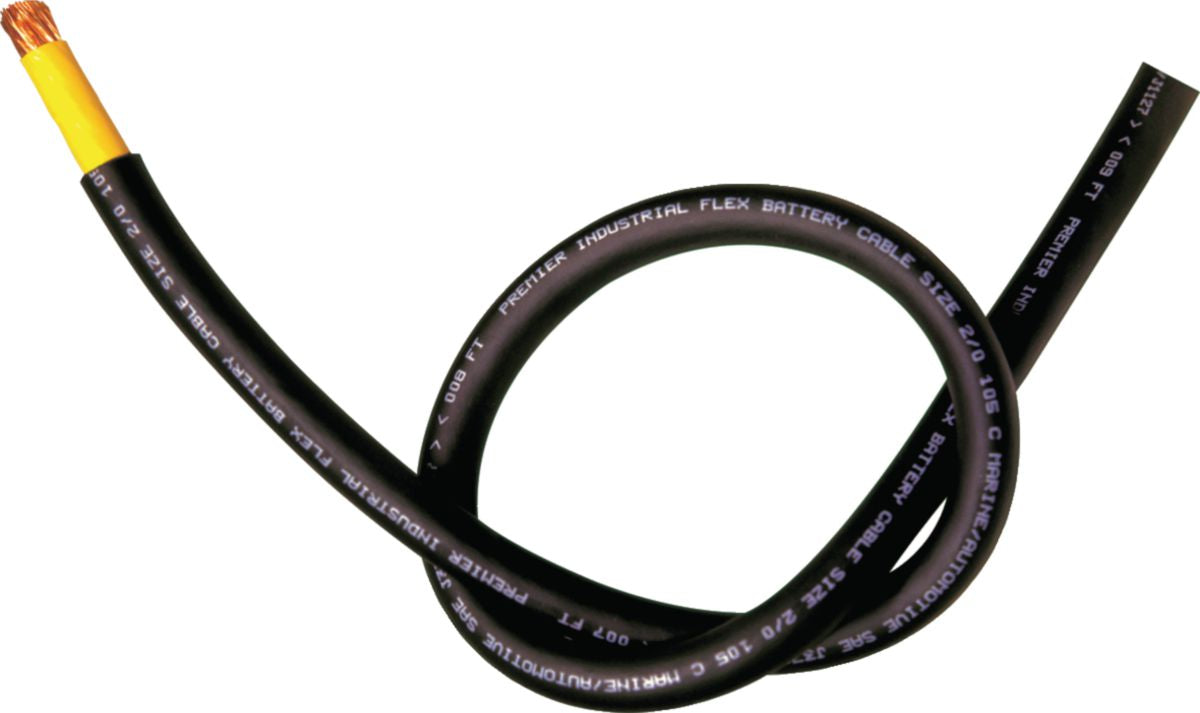

Flexible Battery Cable, 8 AWG, Total Strands 168, 50' Length, Black, 600 Volts, Red-Crimp Color Code, Copper Conductor
(Pack of
1)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-69
Frequently Bought Together
Flexible Battery Cable 4 AWG Black 50'
Couldn't load pickup availability
Flexible Battery Cable 2 AWG Black 25'
Couldn't load pickup availability
Flexible Battery Cable 4 AWG Black 25'
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 32CP
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
DT and AT Series Connector Kit 156Pcs
Couldn't load pickup availability
DTM and ATM Series Connector Kit 156Pcs
Couldn't load pickup availability
DT and AT Series Connector Kit 162Pcs
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52445 |
|---|---|
| Cable Gauge | 8 |
| Total Strands | 168 |
| Color | Black |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 50 ft |
| Crimp Color Code | Red |
| Amperage Capacity at 140°F (60°C) | 60 A |
| Amperage Capacity at 167°F (75°C) | 70 A |
| Amperage Capacity at 194°F (90°C) | 80 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 5.5 lb |
