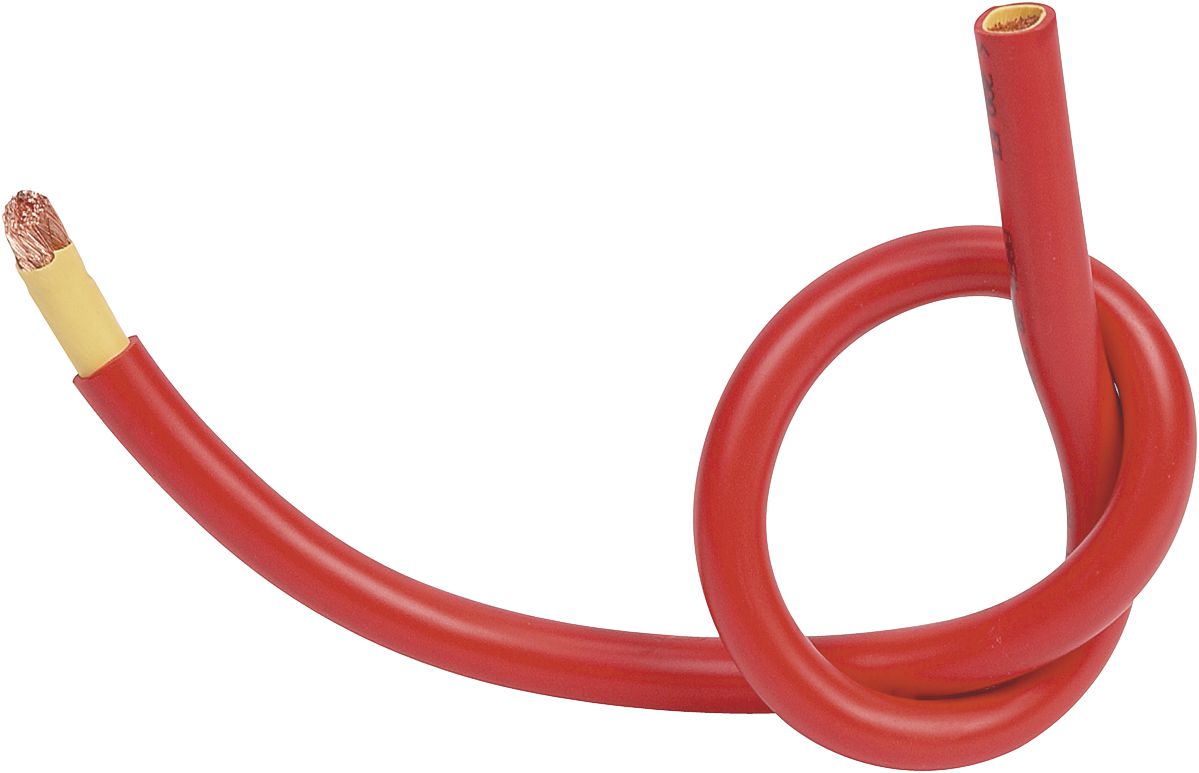

Flexible Battery Cable 2/0 AWG Red 50'
(Pack of
1)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-69
Frequently Bought Together
Battery Cable 6 AWG Black Blue-Crimp Code
Couldn't load pickup availability
Flexible Battery Cable 3/0 AWG Black 50'
Couldn't load pickup availability
Battery Cable 2/0 AWG 13.68" Red
Couldn't load pickup availability

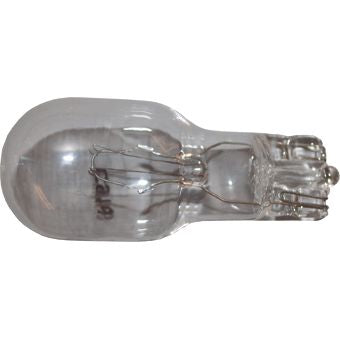

Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 36CP
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2 AWG Brown 1/4"
Couldn't load pickup availability

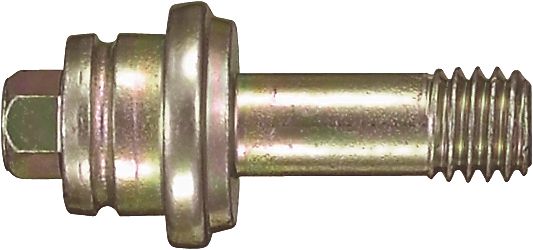

Battery Bolt for Delco Side-Mount 3/8"
Couldn't load pickup availability

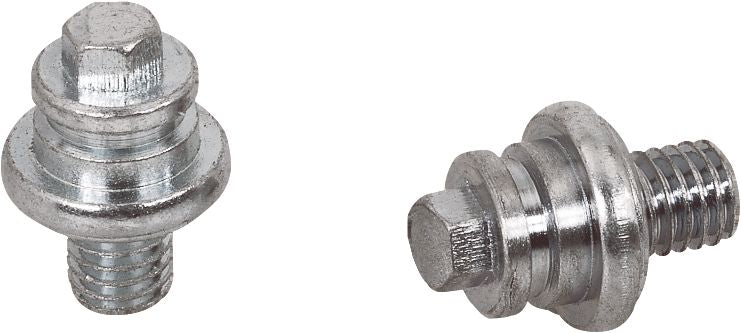

Battery Terminal Side Mount Bolt 3/8"
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52680 |
|---|---|
| Cable Gauge | 2/0 |
| Total Strands | 1,273 |
| Color | Red |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 50 ft |
| Crimp Color Code | Orange |
| Amperage Capacity at 140°F (60°C) | 225 A |
| Amperage Capacity at 167°F (75°C) | 265 A |
| Amperage Capacity at 194°F (90°C) | 300 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 26.07 lb |
