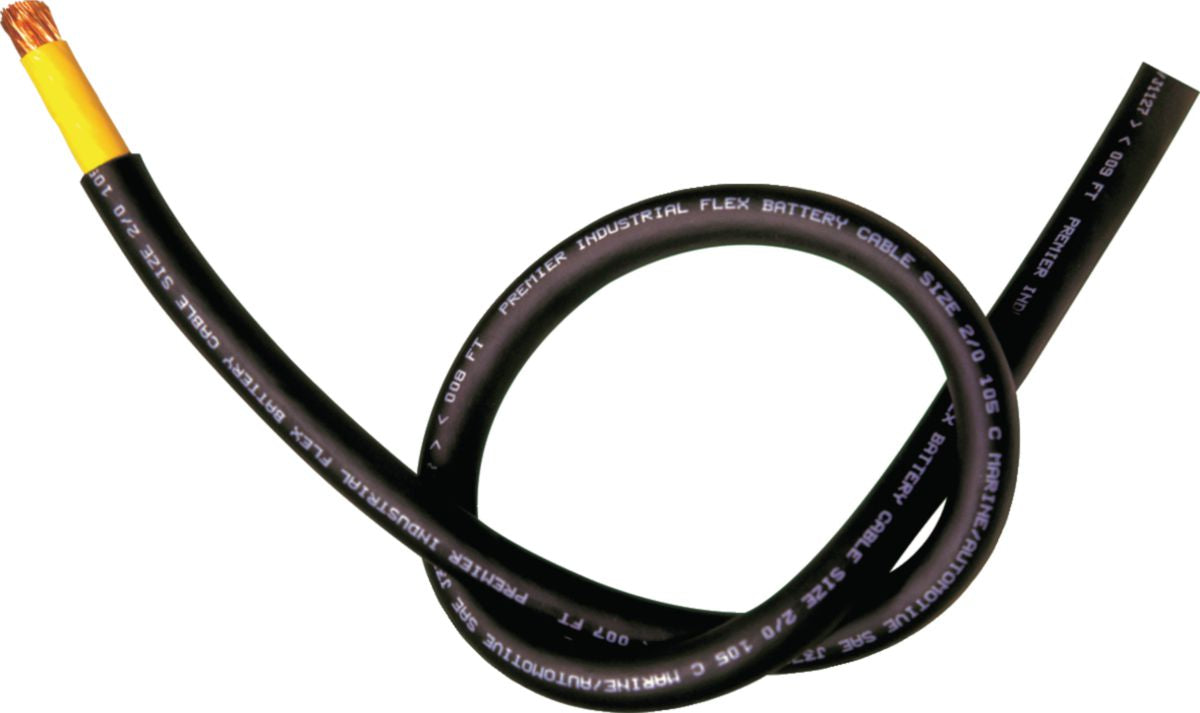

Flexible Battery Cable 4 AWG Black 50'
(Pack of
1.0)
• Contains up to three times the strand count of regular battery cables
• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog Page#: 2-69
Frequently Bought Together
Battery Cable 4 AWG Black Gray-Crimp Code
Couldn't load pickup availability
Flexible Battery Cable 3/0 AWG Black 25'
Couldn't load pickup availability
Battery Cable 3/0 AWG 50' Purple
Couldn't load pickup availability
Standard Size Alligator Clip 10A Copper Green
Couldn't load pickup availability
Standard Size Alligator Clip 10A Copper Green
Couldn't load pickup availability
Copper Test Clamp 75A Red
Couldn't load pickup availability
Stop/Tail/Turn Lamp Yellow
Couldn't load pickup availability
GM Wire Loom Routing Clip 1/4" Black Nylon
Couldn't load pickup availability
Clearance/Marker Lamp Red Chrome Armored
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Front License Plate to Bumper Cover Split Rivet
Couldn't load pickup availability
Product Description
• Contains up to three times the strand count of regular battery cables• Extra high count, rope-stranded, electrolytic copper conductors ensure maximum conductivity and cool operation
• Unique extruded inner yellow sleeve lies between conductors and outer jacket to provide an extra margin of protection against corrosion and cut-through
• Premium thermoplastic rubber insulation jacket provides the best overall chemical, heat, cold and flame resistance; highly resistant to UV light and ozone exposure; remains flexible over a long service life
•Temperature range: –56.2°F to +221°F (–49°C to +105°C)
• 600V maximum
• SAE J378C / J1127
• Marine rated
• A superior, high-performance battery cable for automotive and marine applications, as well as industrial and institutional battery backup power systems
Technical Specifications
| Item#: | P52484 |
|---|---|
| Cable Gauge | 4 |
| Total Strands | 399 |
| Color | Black |
| Volts | 600 V |
| Minimum Temperature Rating | -40 °F |
| Maximum Temperature Rating | 221 °F |
| Length | 50 ft |
| Crimp Color Code | Gray |
| Amperage Capacity at 140°F (60°C) | 105 A |
| Amperage Capacity at 167°F (75°C) | 125 A |
| Amperage Capacity at 194°F (90°C) | 140 A |
| Specifications | SAE J378C/J1127, UL 62-SJE,SE,SEO |
| Style | Premium Flexible |
| Type | Battery Cable |
| UNSPSC #: | 39121405 |
| TAA Compliant: | Yes |
| Weight: | 10.34 lb |
