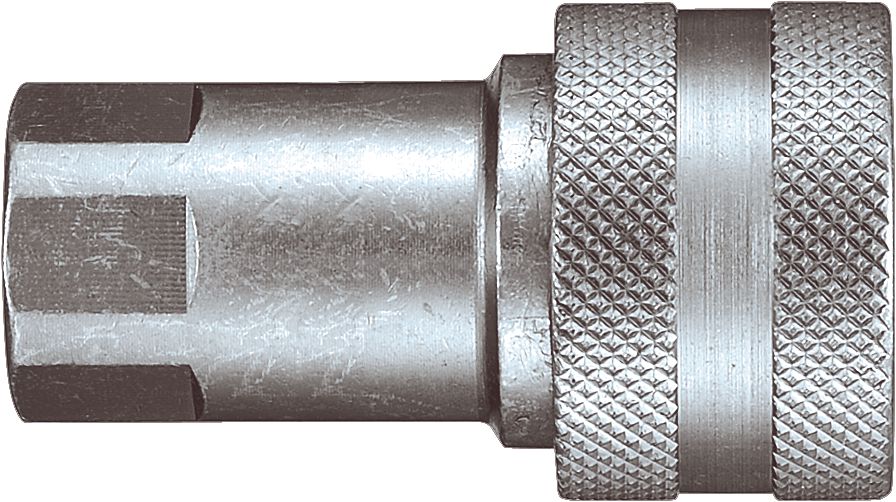

Hydraulic Quick Connect Coupler, Steel, ISO 7241 Series 'B', 3/4" x 3/4-14, Female NPTF, 3.55" Length, 4000PSI
(Pack of
1)
SKU:11993 Item#: 11993
These high-performance products are easy to connect and disconnect, and are best for use with high-pressure hose, and hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Manufactured of high-grade alloy steel, they meet the most rugged performance standards. Corrosion-resistant and case-hardened for long life and outstanding performance and have automatic check valves that result in zero loss of line content when coupling and uncoupling.
• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• Excellent flow characteristics and little pressure drop
• Double O-rings for double wear and double safety
• Stainless steel springs
• Specially tested to the most rugged industry standards
Dixon: H-SeriesParker: 60 SeriesSnap-tite: 72 SeriesFaster: Series HNVHansen: HK Series
Pounds per square inch at gauge (actual reading)
Frequently Bought Together
Industrial O-Ring Nitrile 1/8 x 1/4 x 1/16"
$0.00
Couldn't load pickup availability
Spacer Ring Black
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 0.617 x 0.769"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Miniature Clamp SS 3/16 to 5/8"
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Nipple Steel 1/2" x 3/4-14
$0.00
Couldn't load pickup availability
Flatface Hydraulic Quikconnect Fitting, 1" FPT X 3/4"Plug
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Product Description
These high-performance products are easy to connect and disconnect, and are best for use with high-pressure hose, and hydraulic, pneumatic and fluid lines (primarily high-pressure oil lines). Manufactured of high-grade alloy steel, they meet the most rugged performance standards. Corrosion-resistant and case-hardened for long life and outstanding performance and have automatic check valves that result in zero loss of line content when coupling and uncoupling.• Equally effective for low-pressure hydraulic, pneumatic and fluid lines
• Excellent flow characteristics and little pressure drop
• Double O-rings for double wear and double safety
• Stainless steel springs
• Specially tested to the most rugged industry standards
Dixon: H-SeriesParker: 60 SeriesSnap-tite: 72 SeriesFaster: Series HNVHansen: HK Series
Pounds per square inch at gauge (actual reading)
Technical Specifications
| Item#: | 11993 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Coupler |
| Style | ISO 7241 Series 'B' |
| Standards | ANSI/NFPA B93.113M-B |
| Body Size | 3/4 " |
| Thread Size | 3/4-14 |
| Thread Style | Female NPTF |
| Burst Pressure | 14,500 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | 12 Balls |
| Flow | 29 gal/min |
| Length | 3.55 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 4,000 PSI |
| Hex Size | 1.42 " |
| Maximum Diameter | 1.97 " |
| Coupled Length | 4.37 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 1.24 lb |
