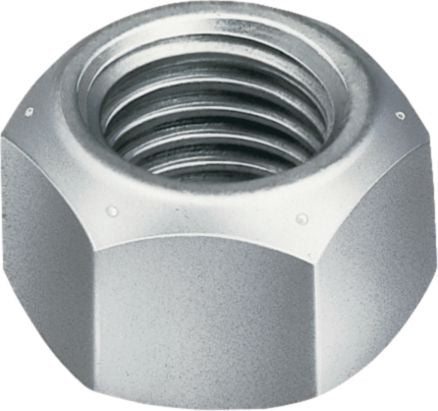

IFI 100/107 Top Locknut Grade C 1/2-13
(Pack of
100.0)
• Heat-treated for matched strength
• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 45mm
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1-14
Couldn't load pickup availability
DIN 985 Locknut with Nylon Insert A2 SS M12-1.75
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 1-1/4-7
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M6-1
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M8-1.25
Couldn't load pickup availability
B8M Heavy Hex Nut Plain 3/4-10 Diameter
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• Heat-treated for matched strength• Will not loosen even under severe vibration
• Locking torque is retained for a minimum of five reapplications
• 150,000 PSI minimum proof strength
• Meets IFI and ANSI specifications
• Developed for Grade 8 applications
• Designed for use with Tuff-Torq® Cap Screws
• Identified by six symmetrically spaced marks on the chamfered surface on the top of the nut
NOTE: Not recommended for use above 450°F (232°C).
For recommended torque values, see Lawson’s E546 brochure.
Technical Specifications
| Item#: | 80931M01 |
|---|---|
| Diameter | 1/2 " |
| Thread Pitch | 13 |
| Grade | C |
| Finish | Zinc/Wax |
| Type | Top Lock Nut |
| Material | Alloy Steel |
| Thickness | 0.573 " |
| Across Flats | 3/4 " |
| Thread | Coarse |
| Size | 1/2-13 |
| Specifications | IFI 100/107 |
| Maximum Temperature | 450º F |
| Proof | 150,000 PSI |
| UNSPSC #: | 31161716 |
| TAA Compliant: | No |
| Weight: | 3.35 lb |
