In-Wall Carrier Fits for 2 x 4 in., Steel, Wall/Floor Mount, Green
(Pack of
1)
SKU:1648114 Item#: 1648114

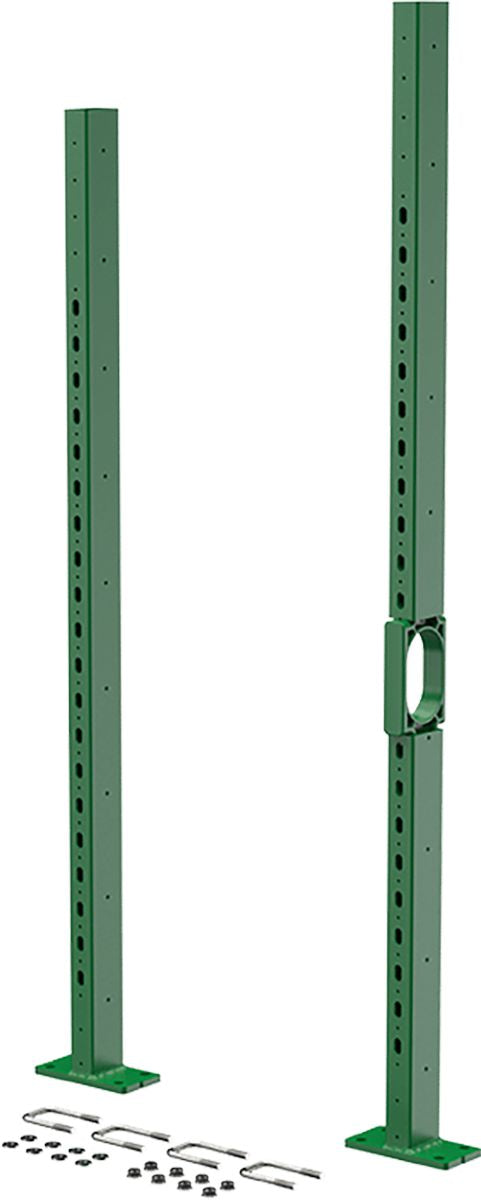

In-wall floor mounted fixture carrier: Two 2½” x 1½” x 1/8” thick structural steel uprights having 6” x 3" x 3/8” thick welded steel 4-bolt floor flanges, supplied with ‘U’ bolts and hardware. For use in conjunction with Haws in-wall mounting plates 6700, 6700.4, 6710, 6715, 6717, or 6776, for extra heavy duty fixture support. Fits inside standard 2” x 4” wall construction. Suitable for use with either 3/8" or 1/2" concrete anchors (by others). Includes mounting holes for plumbing stub out bracket and electrical boxes, and a on-site custom-fit side drain port. This port can be placed at any height. Exceeds requirements when tested in accordance to ASME Standard A112.6.1M. Design was independently verified as suitable to meet HCAI and CBC anchor spacing requirements.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Automotive Refinishing Tape 2" x 60 Yards
$0.00
Couldn't load pickup availability
Water-Resistant Cloth Tape Black 2" x 50'
$0.00
Couldn't load pickup availability
180ml Spray Cup System - Water-Based - 50 Liners, 50 Lids, 20 Stoppers, 1 Hard Cup, 1 Collar
$0.00
Couldn't load pickup availability
High-Strength Double Side Molding Tape 5/8" x 50'
$0.00
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/2" x 50'
$0.00
Couldn't load pickup availability
Friction Tape 3/4" x 60'
$0.00
Couldn't load pickup availability
Cane Detection, Floor Mounted
$0.00
Couldn't load pickup availability
Wall Mount Indoor ADA Water Cooler with Bottle Filler
$0.00
Couldn't load pickup availability

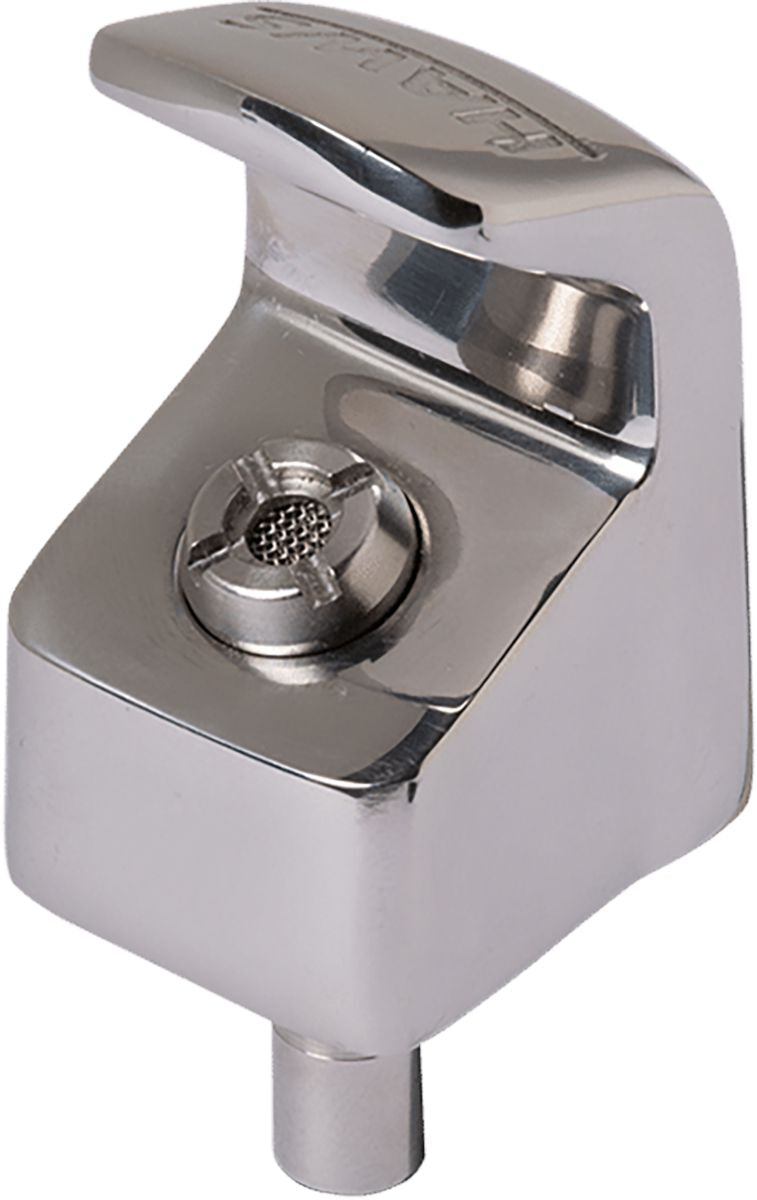

Bubbler Head
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Marker Pen Assortment 12Pcs
$0.00
Couldn't load pickup availability
Marker Pen Orange
$0.00
Couldn't load pickup availability
PVA Drying Cloth Roll 23-1/4 x 31"
$0.00
Couldn't load pickup availability
Product Description
In-wall floor mounted fixture carrier: Two 2½” x 1½” x 1/8” thick structural steel uprights having 6” x 3" x 3/8” thick welded steel 4-bolt floor flanges, supplied with ‘U’ bolts and hardware. For use in conjunction with Haws in-wall mounting plates 6700, 6700.4, 6710, 6715, 6717, or 6776, for extra heavy duty fixture support. Fits inside standard 2” x 4” wall construction. Suitable for use with either 3/8" or 1/2" concrete anchors (by others). Includes mounting holes for plumbing stub out bracket and electrical boxes, and a on-site custom-fit side drain port. This port can be placed at any height. Exceeds requirements when tested in accordance to ASME Standard A112.6.1M. Design was independently verified as suitable to meet HCAI and CBC anchor spacing requirements.Technical Specifications
| Item#: | 1648114 |
|---|---|
| Manufacturer Model #: | 6810 |
| Style | In-Wall Carrier |
| Mounting Type | Wall, Floor |
| Material | Steel |
| Standards | ASME, A112.6.1M |
| Color | Green |
| Description | In-Wall Carrier |
| Type | In-Wall Carrier |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 39111503 |
| TAA Compliant: | Yes |
