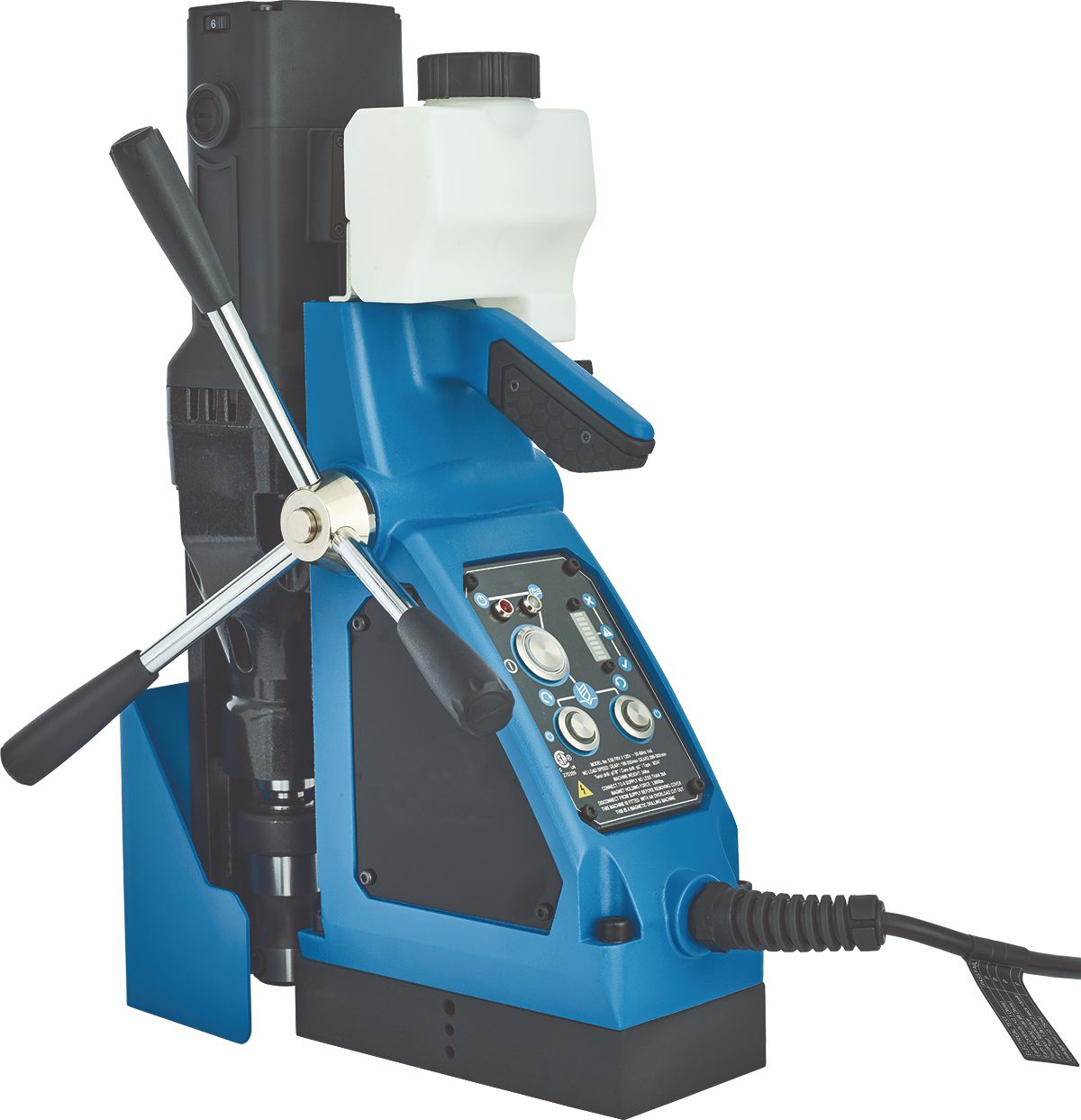

Large Portable Magnetic Drill, 2HP 120V/10A 1500W Single Phase Motor, 2" Depth of Cut, 2" Diameter
(Pack of
1)
SKU:1574608 Item#: 1574608
• Capacity: 2" x 2"
• Height (maximum): 22-1/4"
• Weight: 34.2 lbs.
• Magnet: 3,035 lbs.
• Variable speed: Reverse function for tapping
• Pressure indicator technology: Visual cues for increasing or decreasing pressure on material
• Reversible handle
• Coolant arbor and 1/2" chuck included
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Annular Cutter
$0.00
Couldn't load pickup availability
4PC Annular Cutter Set, 7/16", 1/2", 5/8", 3/4" With Pins In Pouch
$0.00
Couldn't load pickup availability
CryoBore 1-1/2" Dia. Annular Cutter, 2-3/8" Cutting Depth
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-1/4" (M6)
$0.00
Couldn't load pickup availability
Jobber Length Drill Bit HSS 6.5mm
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
$0.00
Couldn't load pickup availability
Portable Magnetic Drill 1-1/2"
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
$0.00
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
$0.00
Couldn't load pickup availability
3" Pneumatic Cut-Off Tool
$0.00
Couldn't load pickup availability
Product Description
• Capacity: 2" x 2"• Height (maximum): 22-1/4"
• Weight: 34.2 lbs.
• Magnet: 3,035 lbs.
• Variable speed: Reverse function for tapping
• Pressure indicator technology: Visual cues for increasing or decreasing pressure on material
• Reversible handle
• Coolant arbor and 1/2" chuck included
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1574608 |
|---|---|
| Height | 22-1/4" maximum; 17-9/16" minimum |
| Width | 7-43/64 " |
| Length | 12-13/32 " |
| Magnetic Dead Lift | 3,370 |
| Motor | 2 hp 120V 10A 1500W (single phase) |
| Arbor Bore | 3/4 " |
| Cutter Diameter | 2 " |
| Depth of Cut | 2 " |
| Drill Point Breakaway | 3035 |
| Magnetic Base | 7-7/8" X "3-7/8" X"1.5" |
| Centerline Pilot to Motor Face | 2-1/4 " |
| Centerline Pilot to Magnet Face | 2-3/64 " |
| UNSPSC #: | 23241801 |
| TAA Compliant: | Yes |
