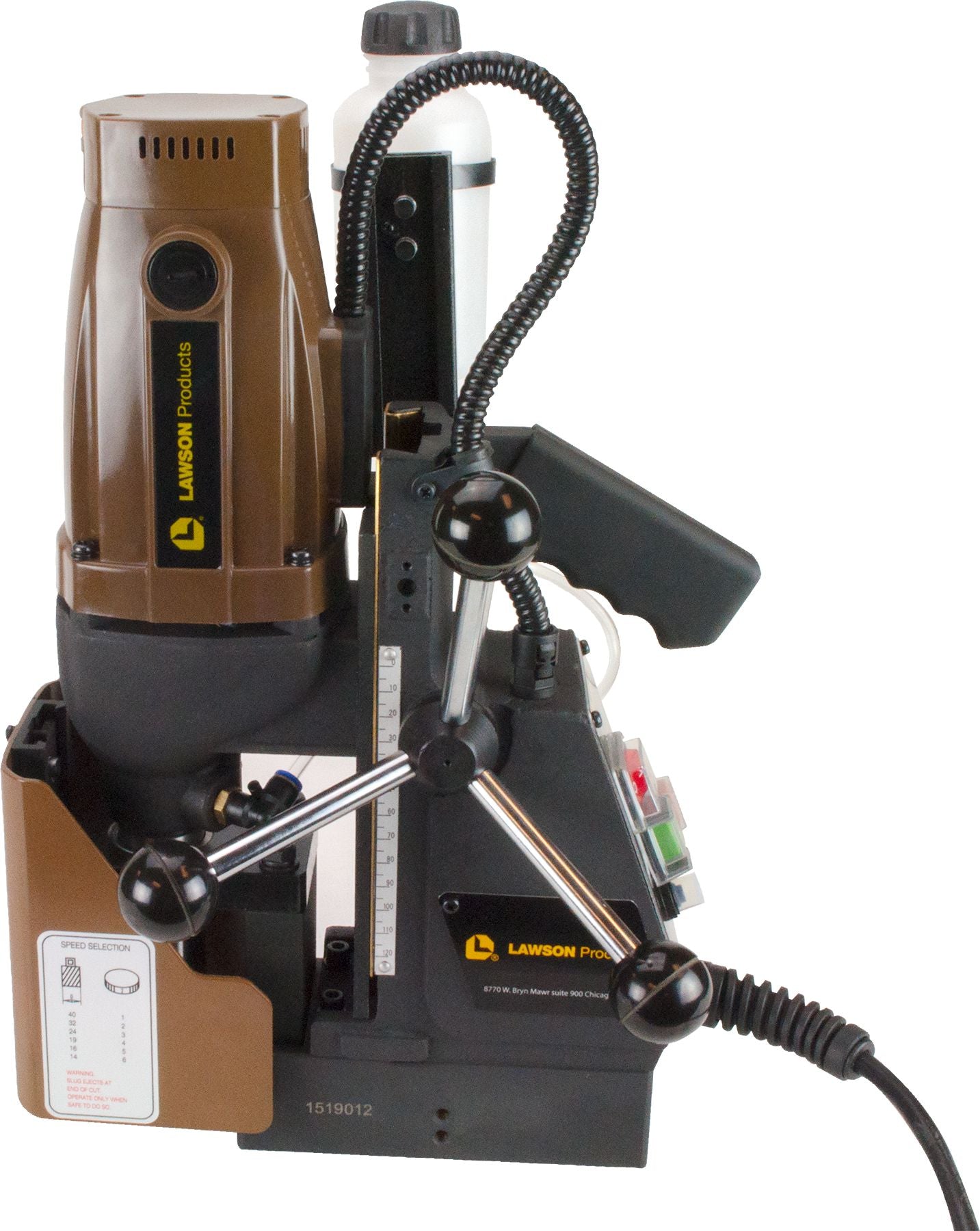

Portable Magnetic Drill, 1.6HP 120V/10A 1200W Single Phase Motor, 2" Depth of Cut, 1-1/2" Diameter
(Pack of
1)
SKU:1574562 Item#: 1574562
Lawson Products Portable Magnetic Drill offers a versatile range of high-performance electromagnetic drilling to provide several options for quick, efficient, accurate metal cutting solutions. The Lawson Mag Drill can accommodate the crucial 1-1/2" bolt-hole size (maximum 1-5/8"), unlike the majority of mag drills which have a maximum capacity of 1-3/8".
• Larger drilling capacity than standard drills in its class
• Automatic coolant system with removable reservoir
• Ideal for large hole drilling on-site or in the workshop
• Standard 3/8" drill chuck adapter for portable drilling
• Smart Magnet recognizes magnetic holding power
• Clutch and overload protection
• Accepts standard 3/4" Weldon shank
Specifications:
• Height: 20" maximum; 16-3/4" minimum
• Width: 7"
• Length: 10-1/2"
• Weight: 32 lbs.
• Motor: 1.6 hp 120V, 10A, 1200W (single phase)
• No load RPM range (120V): 270 to 610 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,650 lbs.
• Magnetic base: 6-1/2" x 3-1/8" x 1-49/64"
• Magnetic dead lift: 1,653 lbs.
• Cutter dia. (maximum): 1-1/2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-49/64"
• Centerline pilot to motor face: 2-11/64"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
HSS Annular Cutter 2-5/16"
$0.00
Couldn't load pickup availability
CryoBore 5/8" Dia Annular Cutter, 1-3/16" Cutting Depth
$0.00
Couldn't load pickup availability
#4 Morse Taper Annular Cutter Adapter, Work With All Annular Cutters
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 1/4" (M6.5)
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 5/32"
$0.00
Couldn't load pickup availability
Eraser Disc Natural Tan 4 x 1"
$0.00
Couldn't load pickup availability
Large Portable Magnetic Drill 2"
$0.00
Couldn't load pickup availability
Low Profile Portable Magnetic Drill 2"
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
$0.00
Couldn't load pickup availability
Small Index-Tend Pry Bar
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
Product Description
Lawson Products Portable Magnetic Drill offers a versatile range of high-performance electromagnetic drilling to provide several options for quick, efficient, accurate metal cutting solutions. The Lawson Mag Drill can accommodate the crucial 1-1/2" bolt-hole size (maximum 1-5/8"), unlike the majority of mag drills which have a maximum capacity of 1-3/8".• Larger drilling capacity than standard drills in its class
• Automatic coolant system with removable reservoir
• Ideal for large hole drilling on-site or in the workshop
• Standard 3/8" drill chuck adapter for portable drilling
• Smart Magnet recognizes magnetic holding power
• Clutch and overload protection
• Accepts standard 3/4" Weldon shank
Specifications:
• Height: 20" maximum; 16-3/4" minimum
• Width: 7"
• Length: 10-1/2"
• Weight: 32 lbs.
• Motor: 1.6 hp 120V, 10A, 1200W (single phase)
• No load RPM range (120V): 270 to 610 RPM
• Arbor bore: 3/4"
• Drill point breakaway: 1,650 lbs.
• Magnetic base: 6-1/2" x 3-1/8" x 1-49/64"
• Magnetic dead lift: 1,653 lbs.
• Cutter dia. (maximum): 1-1/2"
• Depth of cut (maximum): 2"
• Centerline pilot to magnet face: 1-49/64"
• Centerline pilot to motor face: 2-11/64"
NOTE: Magnet needs a minimum of 3/8" of material for the magnet to hold. Insufficient thickness will cause the magnet to lose hold and the system will not allow the motor to start.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1574562 |
|---|---|
| Height | 20" maximum; 16-3/4" minimum |
| Width | 7 " |
| Length | 10-1/2 " |
| Weight | 32.19 |
| Magnetic Dead Lift | 1,653 |
| Motor | 1.6 hp 120V 10A 1200W (Single phase) |
| Arbor Bore | 3/4 " |
| Cutter Diameter | 1-1/2 " |
| Depth of Cut | 2 " |
| Drill Point Breakaway | 1650 |
| Magnetic Base | 6-1/2"X 3-1/8" X"2" |
| Centerline Pilot to Motor Face | 2-11/64 " |
| Centerline Pilot to Magnet Face | 1-49/64 " |
| UNSPSC #: | 23241801 |
| TAA Compliant: | Yes |
| Weight: | 44.0 lb |
