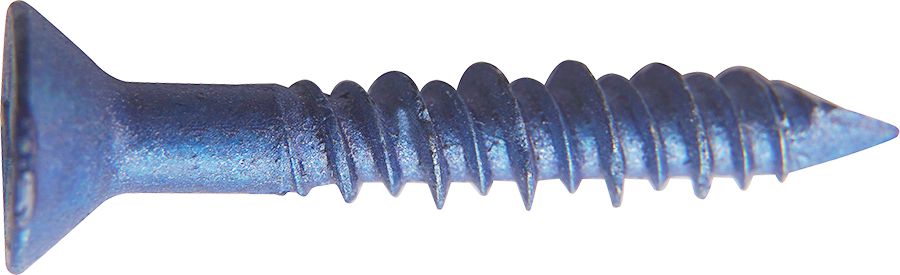

Masonry Anchor, Star Head, Steel, Stalgard Coated, 1/4 x 2-1/4"
(Pack of
50)
UltraCon+® Anchors and Drill Bits
• Fast installation – drill hole, drive anchor
• Anchors available in three head styles: Slotted hex washer head for most applications; TORX® head provides flush seating for countersunk applications; 5/16" hex washer head has an oversized (0.540") washer face
• Replaces expansion anchors, plugs and screws
• Hi-Lo threads provide exceptional holding strength with no spalling
• Notched cutting edges for easy installation – cuts threads into poured concrete, brick or hollow block
• Gimlet point for self drilling into wood base material
• Reversible and removable
• Stalgard®-coated for superior corrosion resistance – withstands a minimum of 800 hours of neutral salt-spray testing without evidence of red rust on significant surfaces
• Carbide-Tipped UltraCon® Masonry Hammer Drill Bits are required – these bits are special size and tolerance products; use of any other bit will cause inconsistent performance of the anchor (sold separately)
1/4" dia. UltraCon® Anchors have a blue Stalgard® finish.
UltraCon® and Stalgard® are registered trademarks of Acument Intellectual Properties, LLC.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Drill 'N Drive Masonry Anchor Kit 102Pcs
Couldn't load pickup availability
Self-Drilling Wallboard Mini Anchor Kit 51Pcs
Couldn't load pickup availability
SnapSkru® Self-Drilling Wall Anchor Kit 50Pcs
Couldn't load pickup availability
Hex Flange Nut Grade 10 Steel M10-1.5
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Drill 'N Drive Anchor Masonry Anchor Drill Bit
Couldn't load pickup availability
Masonry Anchor TORX® Head Steel 3/16 x 4"
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 1/4 x 4"
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Product Description
UltraCon+® Anchors and Drill Bits• Fast installation – drill hole, drive anchor
• Anchors available in three head styles: Slotted hex washer head for most applications; TORX® head provides flush seating for countersunk applications; 5/16" hex washer head has an oversized (0.540") washer face
• Replaces expansion anchors, plugs and screws
• Hi-Lo threads provide exceptional holding strength with no spalling
• Notched cutting edges for easy installation – cuts threads into poured concrete, brick or hollow block
• Gimlet point for self drilling into wood base material
• Reversible and removable
• Stalgard®-coated for superior corrosion resistance – withstands a minimum of 800 hours of neutral salt-spray testing without evidence of red rust on significant surfaces
• Carbide-Tipped UltraCon® Masonry Hammer Drill Bits are required – these bits are special size and tolerance products; use of any other bit will cause inconsistent performance of the anchor (sold separately)
1/4" dia. UltraCon® Anchors have a blue Stalgard® finish.
UltraCon® and Stalgard® are registered trademarks of Acument Intellectual Properties, LLC.
Technical Specifications
| Item#: | 96929 |
|---|---|
| Diameter | 1/4 " |
| Length | 2-1/4 " |
| Type | Screw Anchor |
| Material | Carbon Steel |
| Finish | Stalgard-Coated |
| For Material Thickness | 3/4 - 1-1/4 " |
| Drive | TORX® |
| Drive Size | T25 |
| Drill Size | 3/16 " |
| Head Style | Flat |
| Drive Style | TORX® |
| UNSPSC #: | 31162104 |
| TAA Compliant: | Yes |
| Weight: | 1.01 lb |
