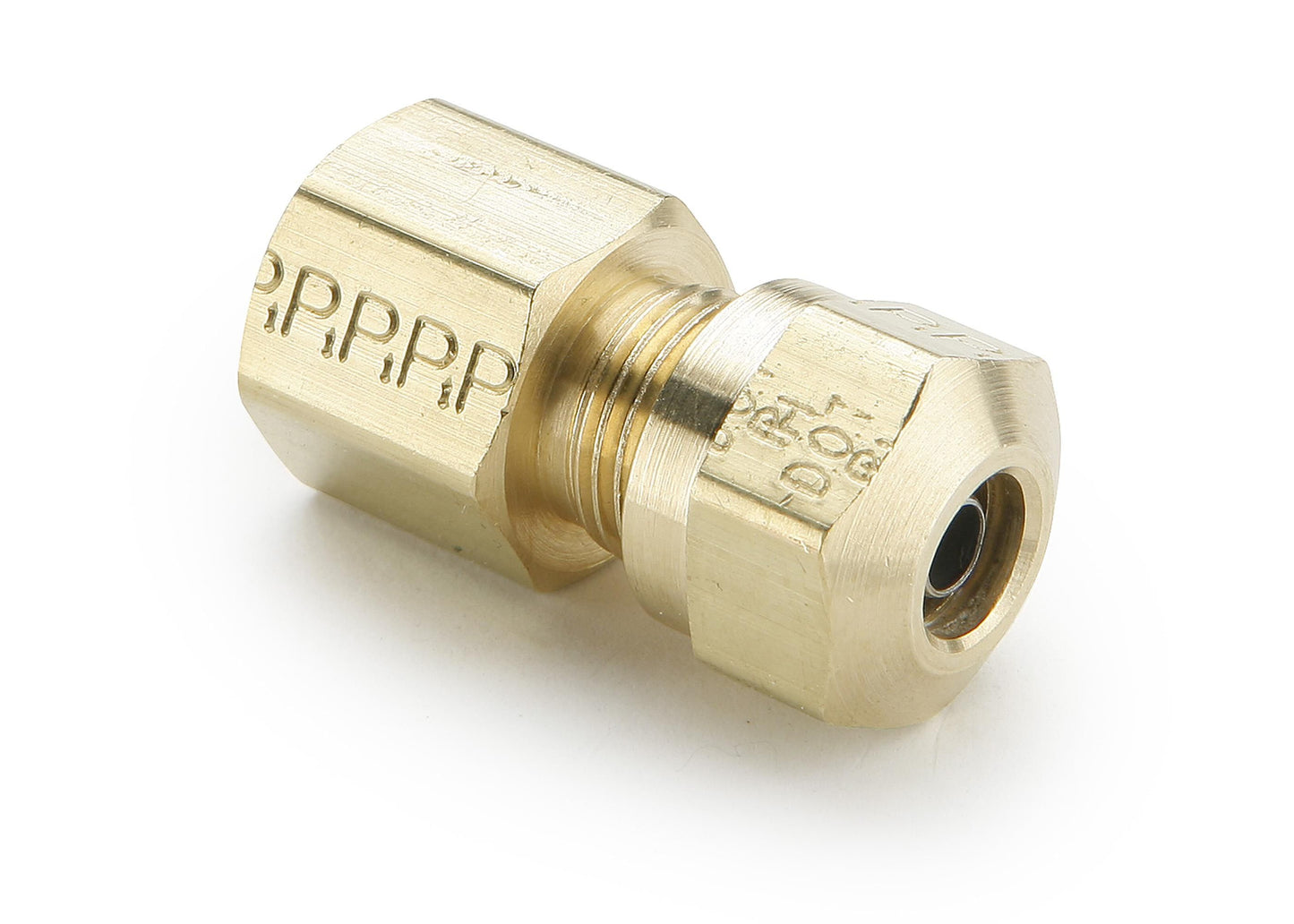

Parker DOT Brass Air Brake Compression - Nylon Tubing Female Connector 3/8x3/8
(Pack of
10)
SKU:84263P Item#: 84263P
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-11
Frequently Bought Together
DOT Compression Union Tee 3/8"
$0.00
Couldn't load pickup availability
DOT Compression Sleeve Brass 3/8"
$0.00
Couldn't load pickup availability

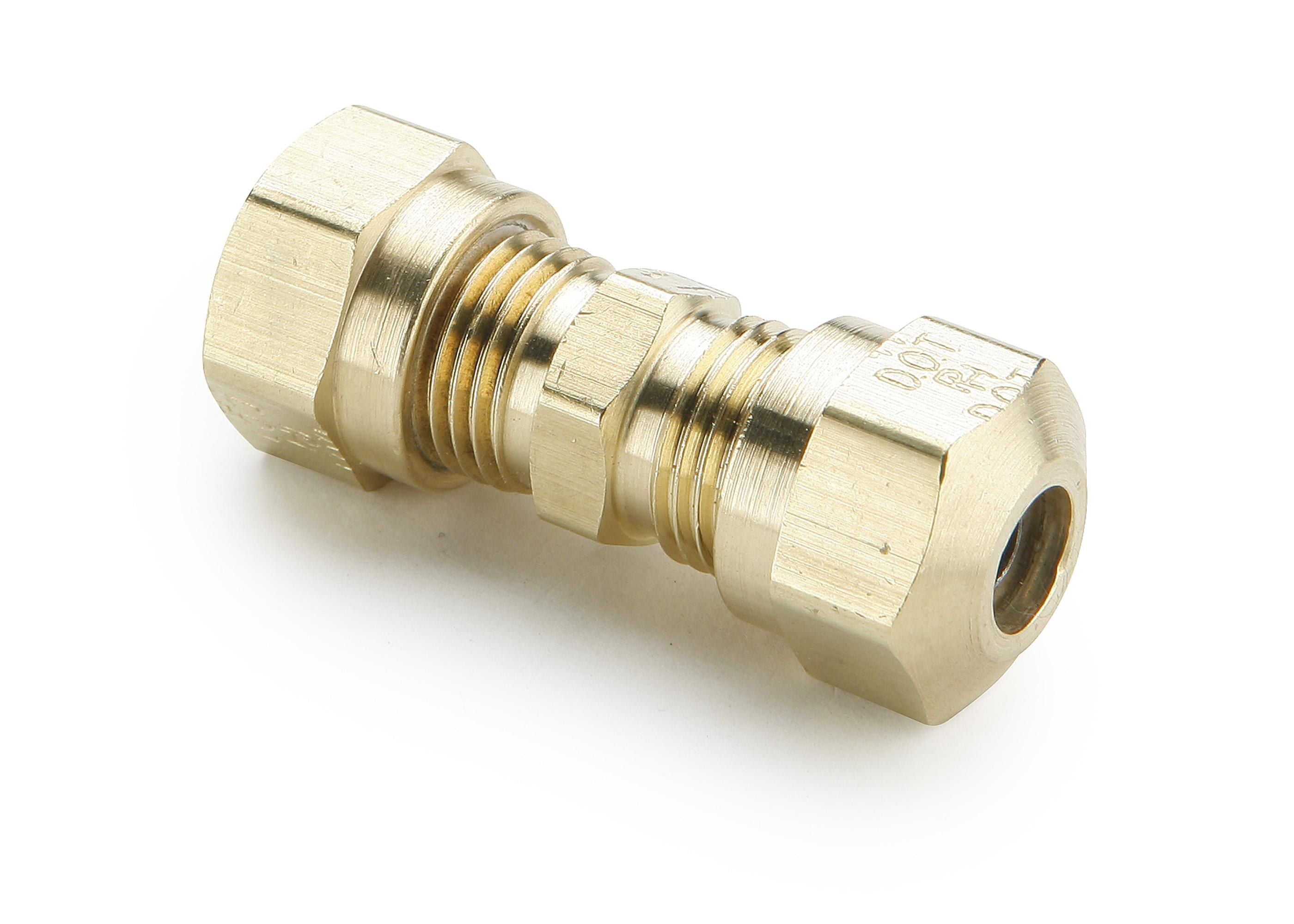

DOT Compression Union Brass 3/8"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/2 x 1/2-14
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 84263P |
|---|---|
| Manufacturer Model #: | 66NTA-6-6 |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Female Connector |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 3/8-18 " |
| Parker Reference No. | 66NTA-6-6 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | Yes |
| Weight: | 1.385 lb |
