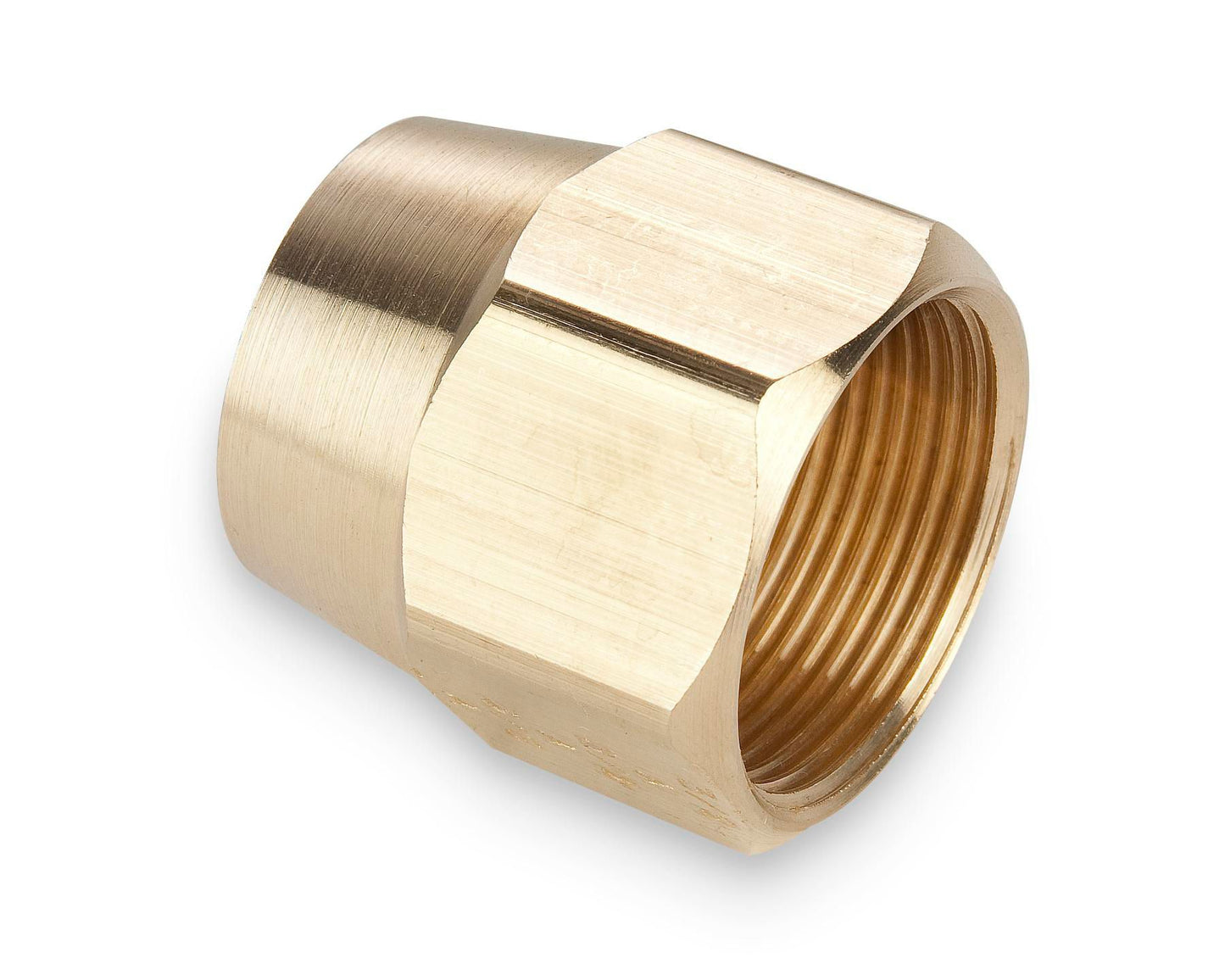

Parker DOT Brass DOT Field Attachable - Nut 3/8
(Pack of 5)

SKU:97262P Item#: 97262P

Parker

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle

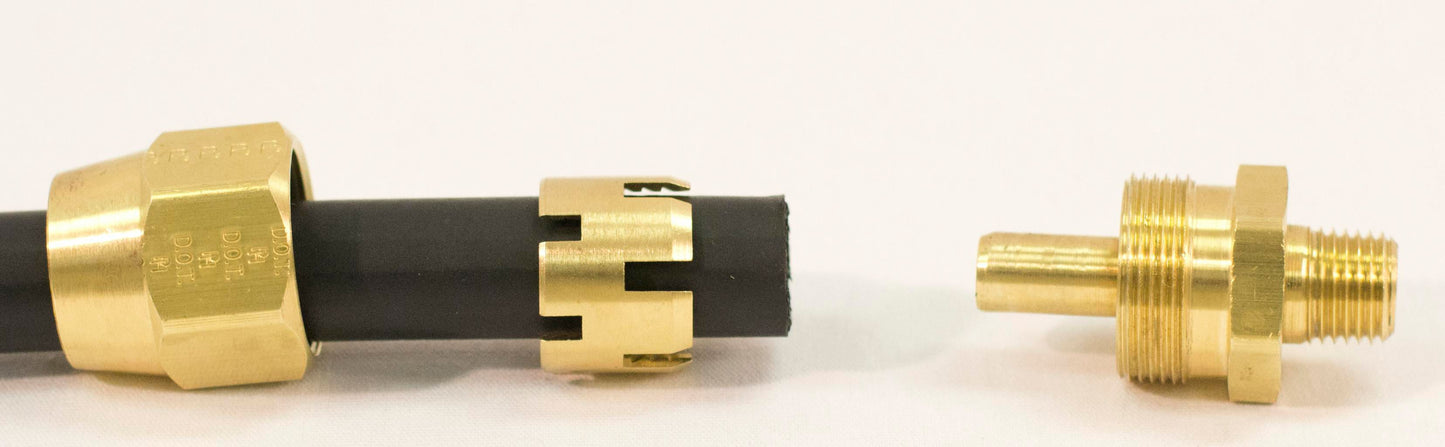

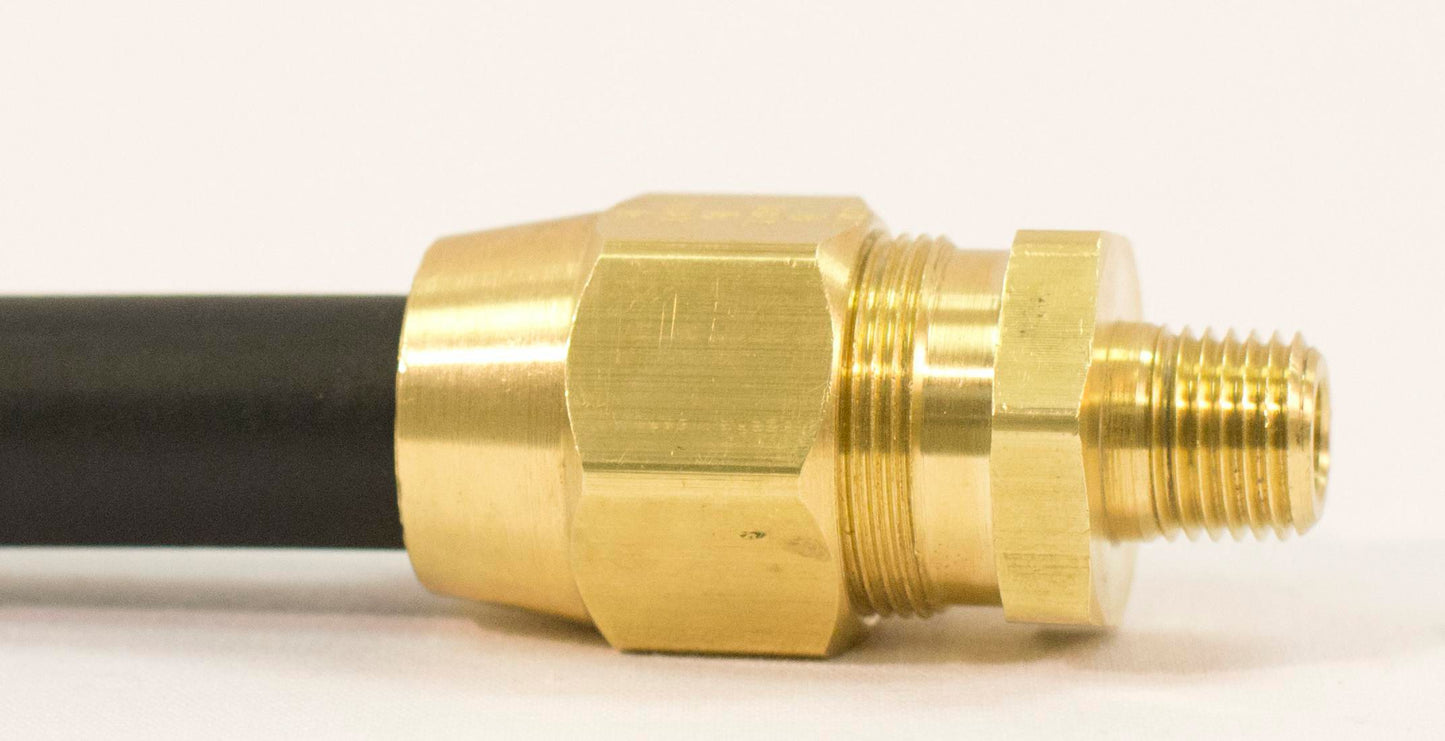

Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.

Check Availability

Quantity

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Catalog page#: 8-13

Frequently Bought Together

DOT Compression Connector Male Brass 3/8 x 3/8"

DOT Compression Elbow Male 90° Brass 3/8 x 1/4"

DOT Compression Elbow Male 90° Brass 3/8 x 3/8"

DOT Connector Male Brass 1/4 x 1/8-27

DOT Union Brass 1/4 x 1/4"

DOT Connector Male Brass 5/8 x 1/2-14

Miniature Clamp SS 1/8 to 7/16"

Item#: P62057M01

Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"

Item#: P63942M01

Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"

Item#: P64107M01

Quick Disconnect Plug Steel 1/4" x 1/4-18

Push-Button Air Coupler Plug Steel 1/4" x 1/4-18

Miniature Clamp SS 1/8 to 7/16"

Item#: P62057M01

Rear Bumper Cover Retainer Plastic 18mm

Bumper and Wheel Well Liner Push-Type Retainer

Fender Apron Drive Rivet 8mm Hole

Product Description

Parker's Air Brake Hose Fittings are field attachable fittings for use with SAE J1402 air brake hose. Easy to assemble and disassemble, these fittings meet D.O.T. requirements when used with SAE J1402 air brake hose.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 when used with SAE J1402 air brake hose
Specifications
• Pressure Range: Up to 400 PSI
• Temperature range: –65° to +250° F (–53.8° to +121.1° C)
•Compatible Hose: SAE J1402 air brake hose
Applications
• Air Lines Frame to Axle
Assembly Instructions
1. Slide nut onto hose.
2. Slide sleeve onto hose with tapered edge toward fitting body.
3. Bottom hose into fitting.
4. Tighten nut until it contacts body hex.

Technical Specifications

Item#:	97262P
Manufacturer Model #:	61RB-6
Fitting Type	Compression - Rubber
Style	DOT
Material	Brass
Configuration	Nut - Plain
Connection Type A	Hose I.D.
Fitting Dimension A	3/8 "
Dash Size	-6
Parker Reference No.	61RB-6
Type	Compression
UNSPSC #:	25171700
TAA Compliant:	Yes
Weight:	0.435 lb
