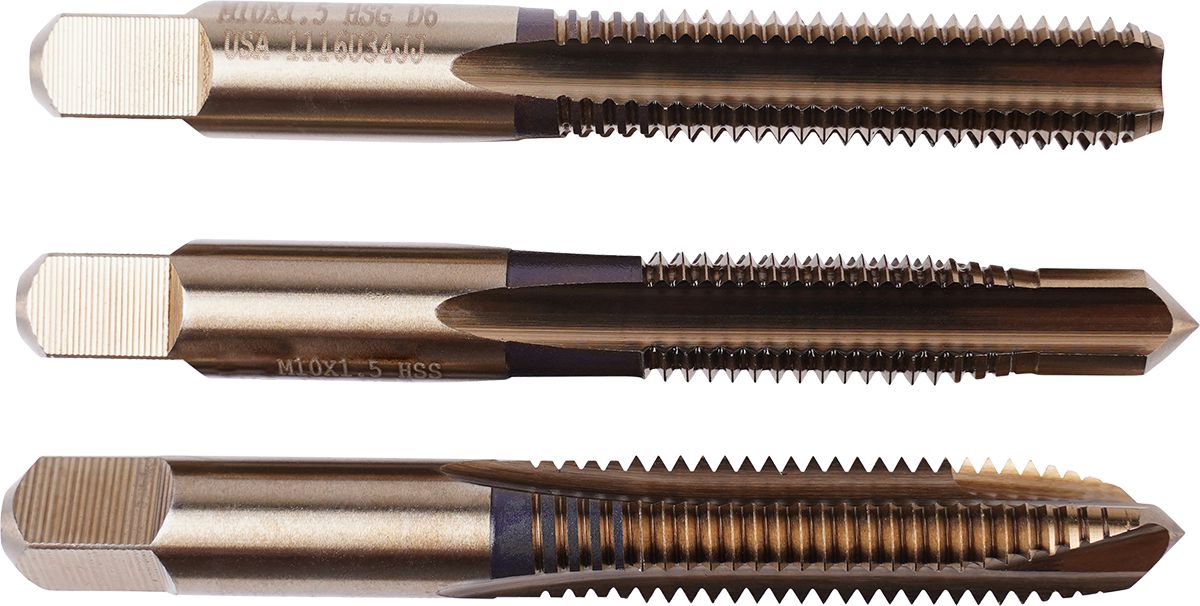

Pilotdrive Cryotap M10 x 1.5 Metric Tri-Pak, Taper, Plug, Bottoming
(Pack of
1)
SKU:DY80691016 Item#: DY80691016
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed
• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Scotch-Brite Roloc Bristle Disc 2"
$0.00
Couldn't load pickup availability
Eraser Disc Natural Tan 4 x 1"
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 5/32"
$0.00
Couldn't load pickup availability
Cryotap 7/16"-20 Bottoming Hand Tap
$0.00
Couldn't load pickup availability
4-Flute HSS Hand Tap Kit M18 x 2.5
$0.00
Couldn't load pickup availability
4-Flute HSS Hand Tap Kit M16 x 2
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M16 x 2
$0.00
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M5 x 0.8
$0.00
Couldn't load pickup availability
Cryo-Drap #12-24 Drill & Tap Combo, 135o Split Point, W/Flats
$0.00
Couldn't load pickup availability
1/4" - 3/4" Cryonitride Spiral Fluted Step Drill - 3/8" Shank
$0.00
Couldn't load pickup availability
Mini-Hole Saw Kit
$0.00
Couldn't load pickup availability
100 Piece, 1/4" Shank Master Bit Set
$0.00
Couldn't load pickup availability
Product Description
• Easiest Starting Tap - CENTERLine™ point firmly lodges in the hole to eliminate tap shifting or wobbling with no guide blocks needed• Non-Drifting - CENTERLine™ point maintains alignment from start to finish even while hand tapping
• Cryophase™ Treated - Increases tool life and maximizes torsion strength
• Precise - Perfect for tapping thin metals because the first few tapped threads are as clean and precise as the last few tapped threads
Specifications
• Material: High Speed Steel
• Coating: Gold Oxide
• Hardness: 64-66Rc
• Number of Chamfered Threads: 4 to 4-1/2 Threads
• Treatment: Cryophase™ thermal cycle process
• Thread Standard: Exceeds ANSI B1.1
Note: Not intended for depths greater than 1-1/2 times tap diameter.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | DY80691016 |
|---|---|
| Type | Metric |
| Style | Set |
| Material | CM-8™ Tool Steel |
| Diameter | M10 |
| Pitch | 1.5 mm |
| Flutes | 4 |
| Thread Length | 2-15/16 " |
| H Limits | 4 |
| Recommended Drill Size | 8.5 mm |
| Description | One each of Pilotdrive, Plug, and Bottoming Style Taps |
| UNSPSC #: | 23241615 |
| TAA Compliant: | No |
| Weight: | 0.31 lb |
