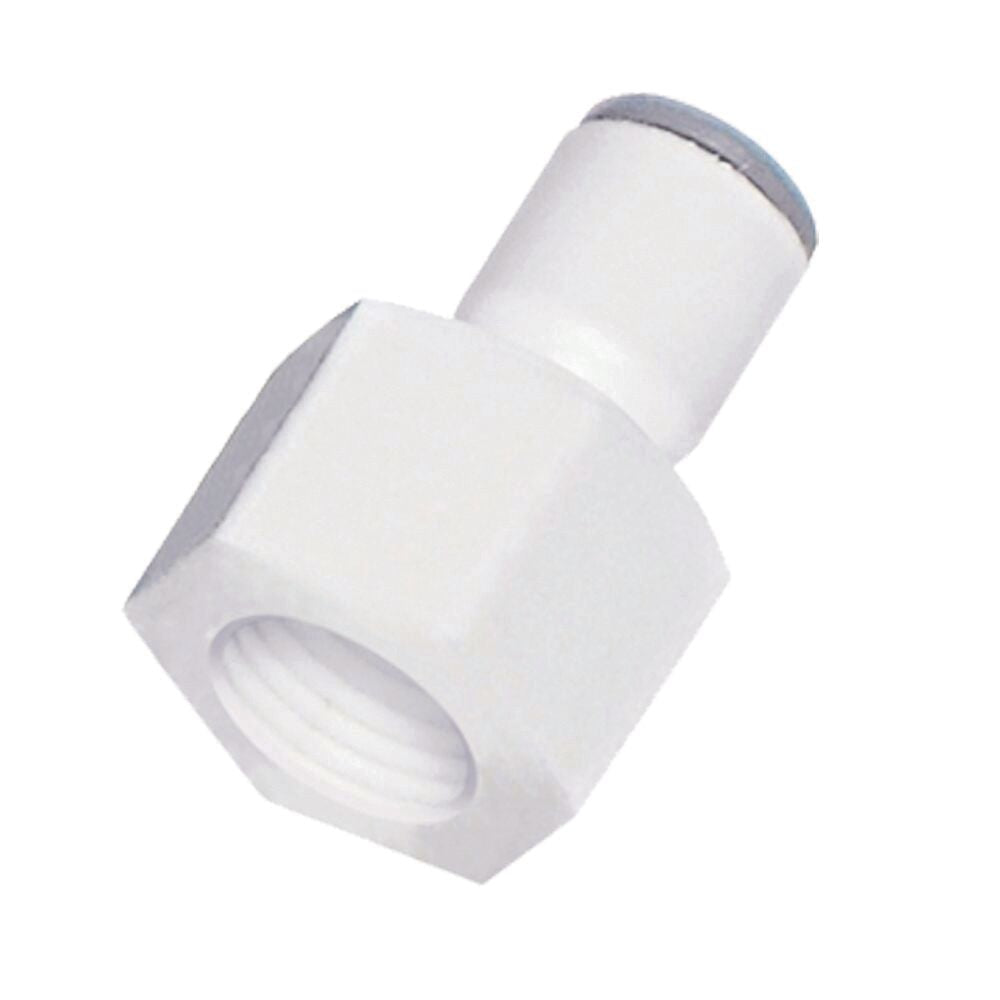

Push-to-Connect Connector, Polyoxymethlene, 1/4 x 1/4", Tube x Female NPTF, 232 PSI Working Pressure
(Pack of
10)
SKU:1260929 Item#: 1260929
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Union Connector, 1/4x5/16" Tube
$0.00
Couldn't load pickup availability
Push-to-Connect Union Connector, 5/16" x 5/16"(8mm)
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, Polyoxymethlene, 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Elbow Brass 90° 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 12 mm x 1/4" BSPT
$0.00
Couldn't load pickup availability
Push-To-Connect Fitting, LF3000, Unequal Union, 3/8 x 1/4" Tube
$0.00
Couldn't load pickup availability
Push-to-Connect Reducer Nylon 6 x 10 mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Trim Panel/Running Board Split Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1260929 |
|---|---|
| Configuration | Female Connector |
| Tube Size | 1/4 " |
| Thread Size | 1/4 " |
| Thread Style | NPTF |
| Material | Polyoxymethlene |
| Wrench Size | 11/16 " |
| Thread Length | 14 mm |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
