Home Hydraulics Fleet Hose and Tubing Clamps/Banding Spring Loaded T-Bolt Hose Clamp, Dia: 2.06 - 2.38"
Clamps/Banding

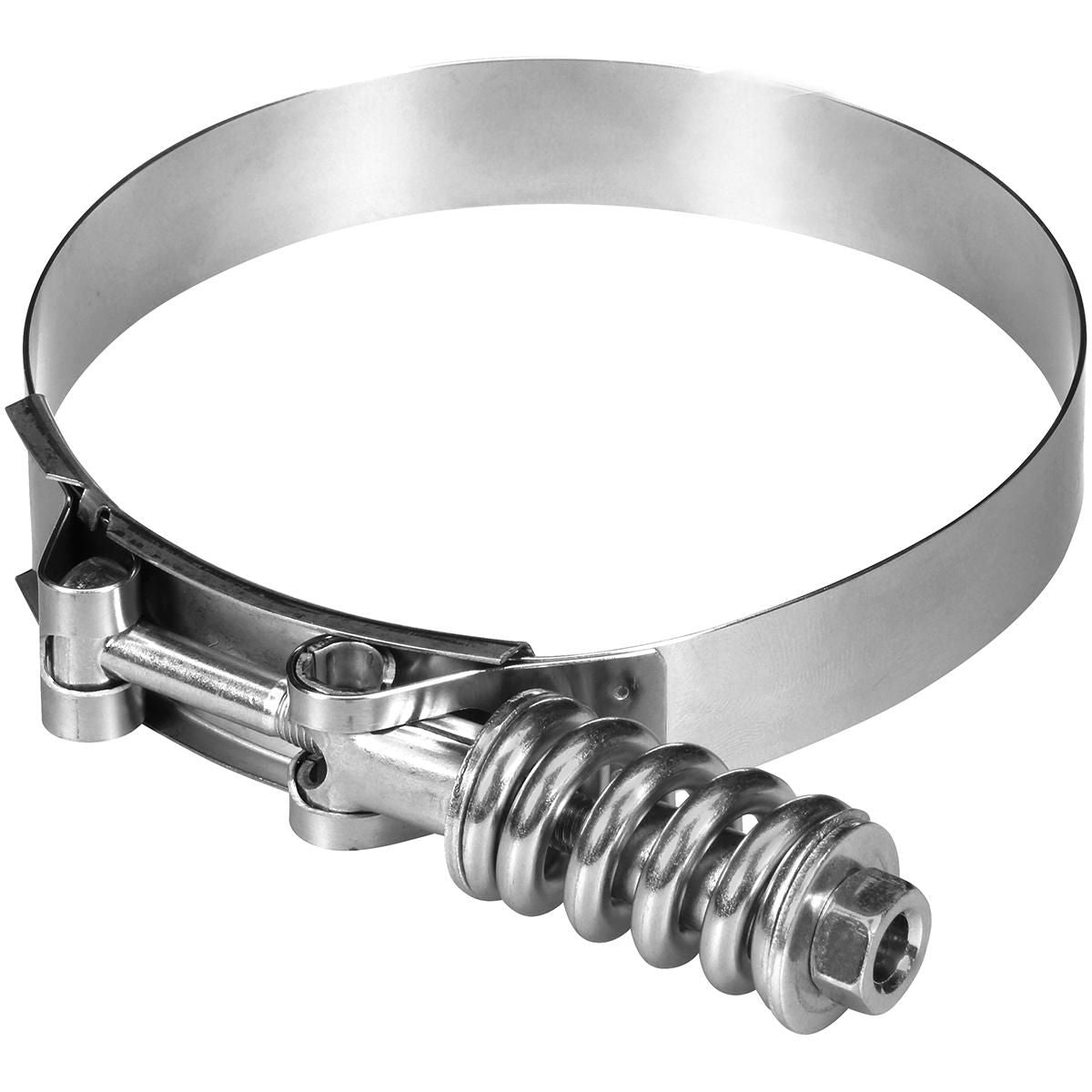

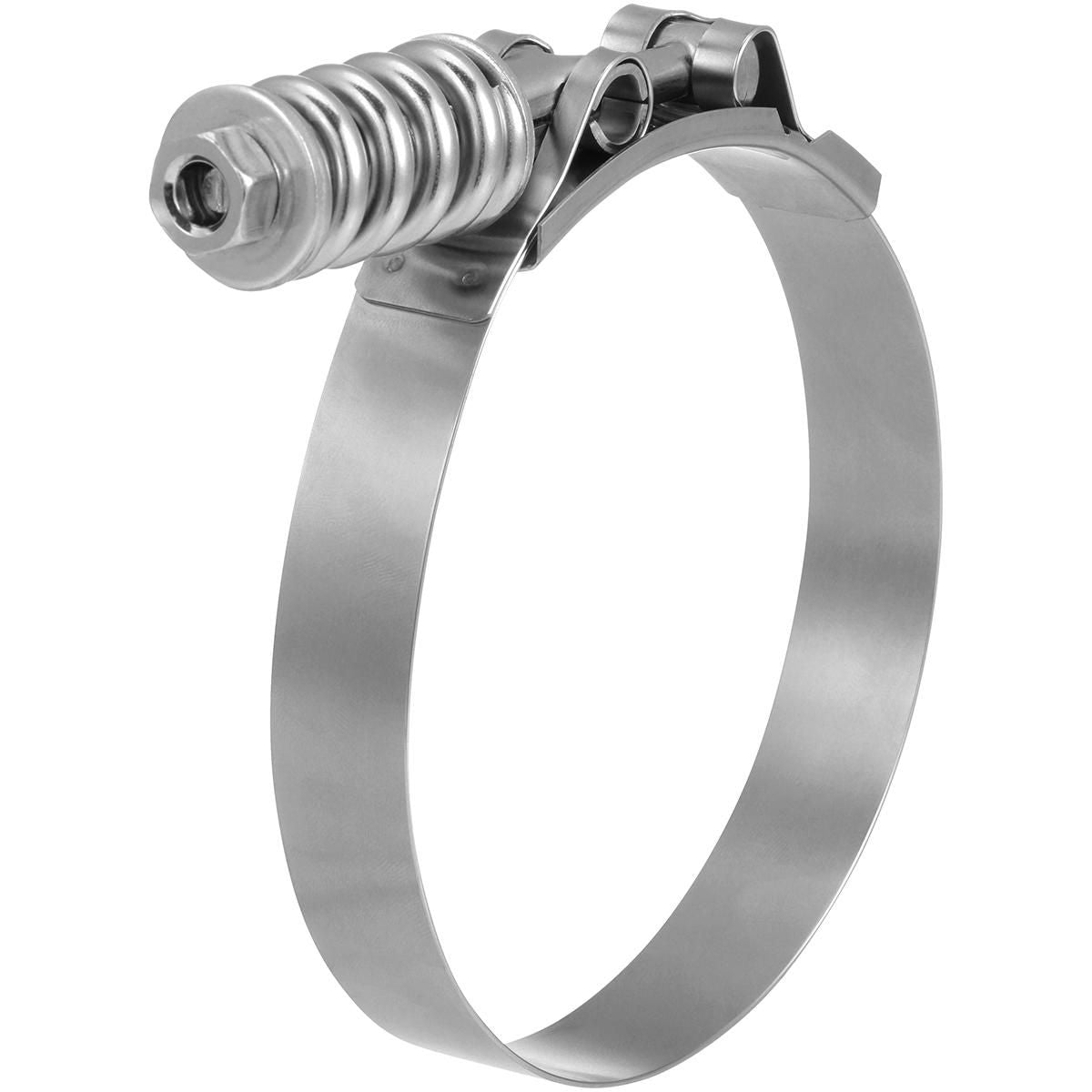

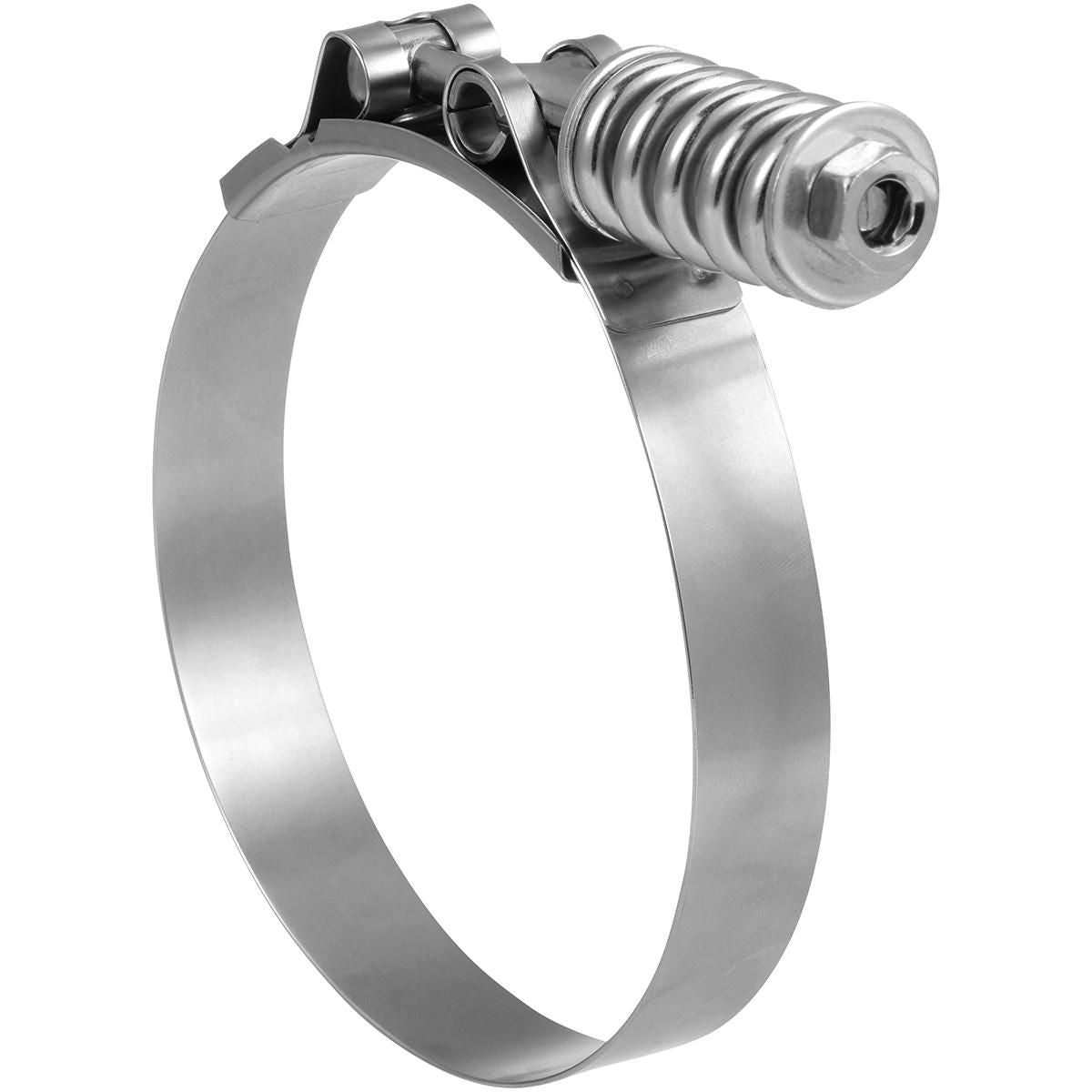

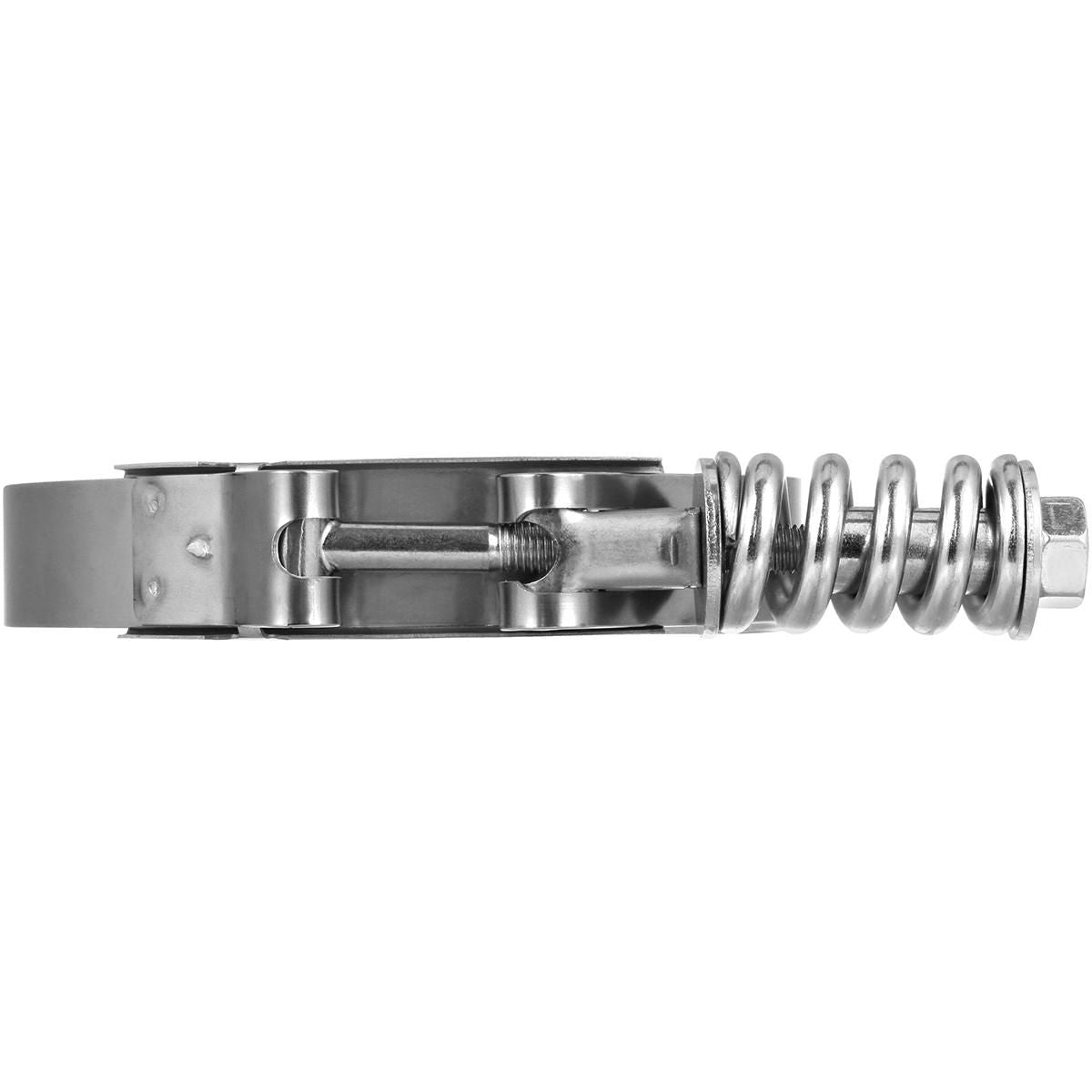

Constant Tension Spring Loaded T-Bolt Hose Clamp, Stainless Steel, Diameter: 2.06 - 2.38 in
(Pack of 5)

Item#: 1609065

Lawson

• 304 Series stainless band, bridge, cap, wrapper and housing
• Spring and washer with plated carbon steel t-bolt, nut, spring and washer
• Heavy-duty spring for constant-tension
• Special application sizes for charge-air-after cooled engine systems - CAC Hose
• 3/4" x 0.031" band for superior coverage
• Meets SAE Specification J1508 Type SLTB
• Recommended torque: 60 in./lbs.
• For industrial, automotive and marine applications

Read More
Check Availability

California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov

Catalog page#: 7-5

Frequently Bought Together


Silicone Coolant/Heater Hose Clamp 11/16 to 1-1/4"

Item#: KT14025

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

Super 77 Hose Clamp SS 2 to 2-7/8"

Item#: 90227

DOT Compression Elbow Male 90° Brass 3/8 x 3/8"

Item#: 84285

DOT Compression Elbow Male 45° Brass 3/8 x 1/4"

Item#: 84310

Hose Clamp 304 SS 9/16 to 1-1/4"

Item#: 86726

Silicone Coolant/Heater Hose Clamp 1/2 to 29/32"

Item#: KT14023

Fuel Line Hose 3/8" ID x 25'

Item#: 6637

Windshield Wiper Hose 9/32" ID x 50'

Item#: P63535

Worm Gear Hose Clamp Assortment with Rack

Item#: KL115

Push-Button Air Coupler Steel 1/4" x 3/8-18

Item#: KT15124

Quick Disconnect Plug Brass 1/4" x 1/4-18

Item#: 54558

Metric Indented Hex Head Bolt with 17mm Washer

Item#: KT11580

Front Fender Push-Type Retainer Nylon 18mm

Item#: KT13984

Rocker Molding Clip with Sealer Nylon Blue 17mm

Item#: KT13687

Product Description

• 304 Series stainless band, bridge, cap, wrapper and housing
• Spring and washer with plated carbon steel t-bolt, nut, spring and washer
• Heavy-duty spring for constant-tension
• Special application sizes for charge-air-after cooled engine systems - CAC Hose
• 3/4" x 0.031" band for superior coverage
• Meets SAE Specification J1508 Type SLTB
• Recommended torque: 60 in./lbs.
• For industrial, automotive and marine applications

Technical Specifications

Item#: 1609065
Category Spring Loaded T-Bolt Hose Clamp
Applications Industrial, Automotive, Fleet
SAE Size 38
Material 300 Series Stainless Steel Band and Plated Steel T-Bolt
Size 2-1/16-2-3/8 "
Minimum Diameter 2-1/16 "
Maximum Diameter 2-3/8 "
Width 3/4 "
Thickness 0.031 "
UNSPSC #: 31162900
TAA Compliant: No
Weight: 0.357 lb
