Home Fasteners StemLock® Rear-Flange Structural Rivet Steel 1/4"
Fasteners

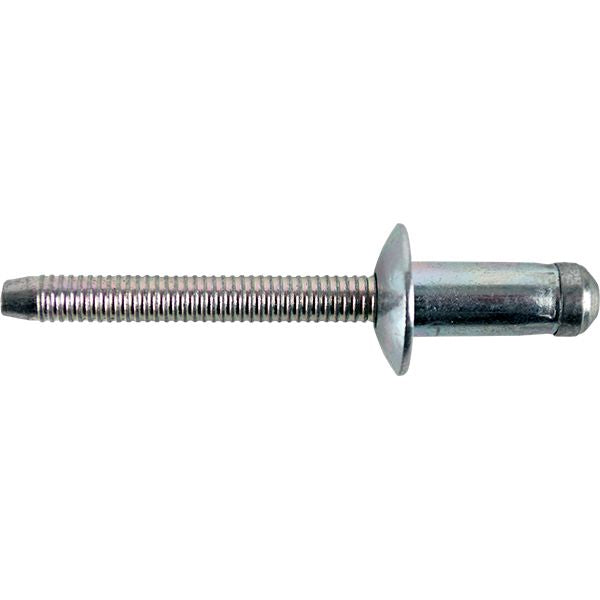

StemLock® Rear-Flange Structural Rivet, Dome Head, Steel, 1/4" Diameter, 0.189 to 0.268" Grip Range, 0.669" Body Length
(Pack of 100)

Item#: 1543615

RivetKing®

Dome Head
• Provides a rear flange on the back side of the application – perfect for thin sheet metals or imperfect holes
• Rear flange helps prevent material deformation
• The mandrel will break flush with the head and is locked to prevent vibration
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

Catalog page#: 11-117

Frequently Bought Together


DIN 125A Flat Washer Grade 140 HV M10

Item#: 80264

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82353

Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm

Item#: 28687

Multi-Grip Lockbolt Rivet Head Aluminum 3/16"

Item#: 1543697

Structural Rivet Internal Lock Aluminum 1/4"

Item#: 90483

Multi-Grip Rivet Dome Head Aluminum 5/32"

Item#: 1980

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

Front Fender Liner Push-Type Retainer Nylon 20mm

Item#: P24252

Inner Fender Shield Attaching Clip Nylon Black

Item#: P27685

Structural Rivet Internal Lock Steel 3/16"

Item#: 90477

Tigerbolt® Structural Rivet External Lock SS 1/4"

Item#: 1557943

Structural Rivet Internal Lock Dome Head SS 3/16"

Item#: 1557948

Product Description

Dome Head
• Provides a rear flange on the back side of the application – perfect for thin sheet metals or imperfect holes
• Rear flange helps prevent material deformation
• The mandrel will break flush with the head and is locked to prevent vibration
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 1543615
Manufacturer Model #: STMS - 0815/STEMLOCK
Type Structural – Rear Flange
Head Style Dome Head
Material Body / Mandrel Steel/Steel
Diameter 1/4 "
Grip Range 0.189 – 0.268 "
Hole Size 0.263 – 0.271 "
Head Diameter 0.530 "
Head Height 0.110 "
Body Length 0.669 "
Shear Strength 2,810 lb
Tensile Strength 1,978 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 1.81 lb
